Full Suspension Electric Bike Frame Boost 27.5 Plus/29er mid drive Bafang 1000w Ebike
Full Suspension Electric Bike Frame Boost 27.5 Plus/29er mid drive Bafang 1000w Ebike
Max. output 80N.m.

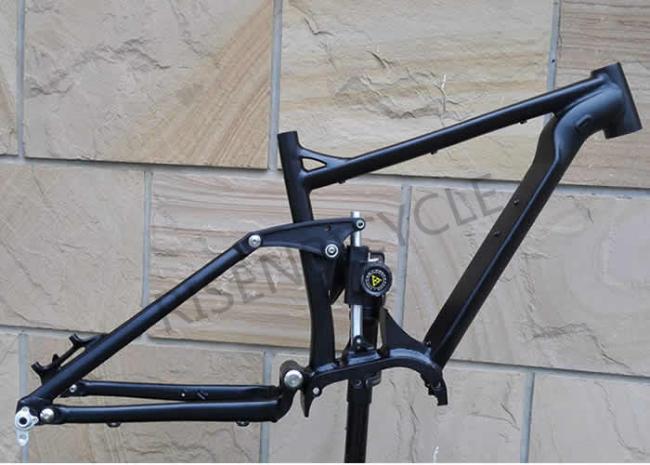

EAM5100 is a Boost 27.5 Plus Suspension Frame for Trail/Am ride assisted with robust motor power, 1000w Bafang G510 mid-drive system. You can enjoy only the passion of riding in trails and save the trouble of pushing bike on slopes.
Features:
1)Fits with Bafang Max 1000w Mid-drive system, 52v/65 cells lithium battery.
2)27.5" ebike suspension mountain bike frame
3)Wheel travel 150mm, shock size: 190x51mm
4)All popuplar sizes avaiable 15"/17"/19"/21"
5)Rear Dropout: 148x12 thru-axle. tapered headset, inner cable routing, 31.6mm seatpost
6)Max tire: 27.5"x30 or 29"x 2.35"
Trial orders are acceptable for moq of 50 units. Sample order less than 50 units aceptable.
Technica Data:
| Model | E6020S |
| Material | AL6061 Aluminum Alloy |
| Welding | TIG+FLAT |
| Wheel | 27.5"(650B) Boost |
| Motor: | Mid drive BAFANG G510.1000W |
| Battery Case | Hailong Plus 65 cells 13P5S |
| Rear Wheel Travel | 150mm |
| Shock | 190x51mm |
| Fork recommended | 160mm travel |
| Dropout | 148x12mm |
| Max. Tire | 27.5x3.00 or 29x2.35 |
| Headset | Tapered(44/56mm) |
| Headtube Angle | 66.5 degree |
| Seatpost | 31.6mm |
| Brake | Disc(post mount) |
| Finish | Raw Materials,Matte Black or customized painting |
| OEM/ODM | Acceptable |
| Sizes | 16"/18"/20" |
