27.5er Boost Full Suspension Electric Bike Frame w/ Shimano E8000 Integrated downtube
Price:
Negotiable
MOQ:
50 units
Delivery Time:
90 days
Brand:
OEM
Product Description

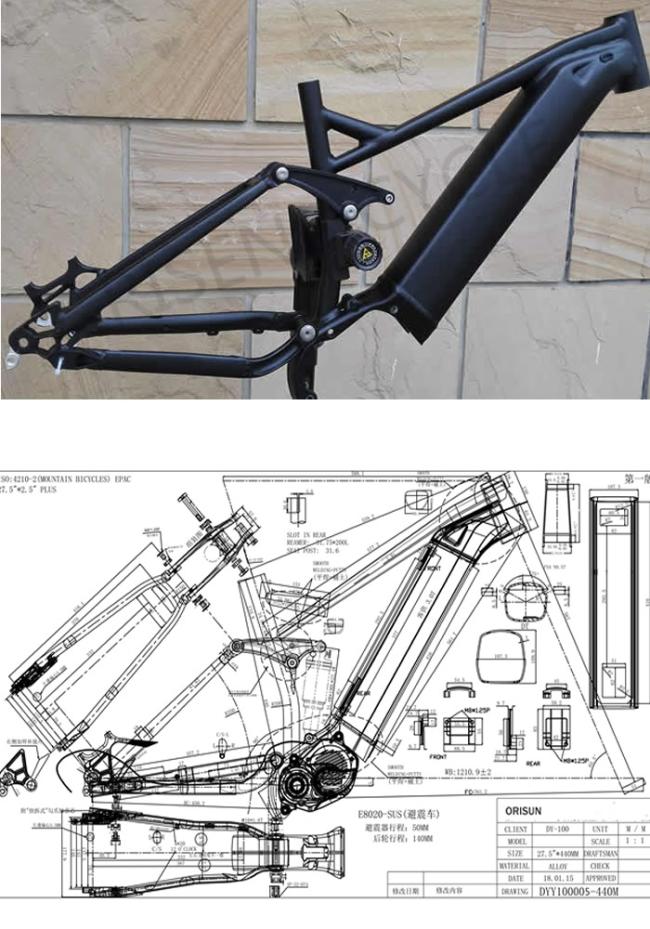

27.5er Boost Full Suspension Electric Bike Frame w/ Shimano E8000 Integrated downtube
Features:
1. 27.5er Boost Aluminum Full Suspension Electric Bike Frame
2. Motor: Shimano Steps E8000 mid-drive motor. Battery Case Built-in Integrated Downtube
3. Wheel Travel: 140mm, and Shock Size:190x50mm
4. Wheel Size 27.5" Boost with Dropout 148x12mm
5. Sizes 15.5", 17.5", 19" available.
6. 2 years' warranty.
Technical Data:
| Product | Electric Full Suspension Bike Frame |
| Model | E8020s |
| Material | Aluminum Alloy 6061, T4&T6 treatment |
| Welding | TIG+Flat Welding+Putin |
| Wheel Size | 27.5er Boost |
| Dropout | 148x12mm |
| Maximum Tire | 27.5"x2.50 + |
| Motor Applicable | Shimano Steps E8000 Mid-Drive Motor |
| Battery Case | Built-in integrated Downtuble |
| Headtube | Tapered(1-1/8" upper, 1-1/2" lower) |
| Seatpost | 31.6 mm |
| Headtube Angle | 67 degree (65.5 degree) |
| Wheel Travel | 140mm ( or 165mm) |
| Shock Size | 190x 50mm |
| Sizes available | 15.5", 17.5", 19" |
| Routing | Internal Routing |
| Pivot bearing | USA. Enduro Premium bearings |
| Riding Style | Electric AM/Enduro mountain bike |
| Feature | Large Power, Long Trave Fulll Suspension Bike Frame |
| OEM | acceptable |
| ODM | Acceptable |
| Painting | raw materials or as per customer's painting design |
