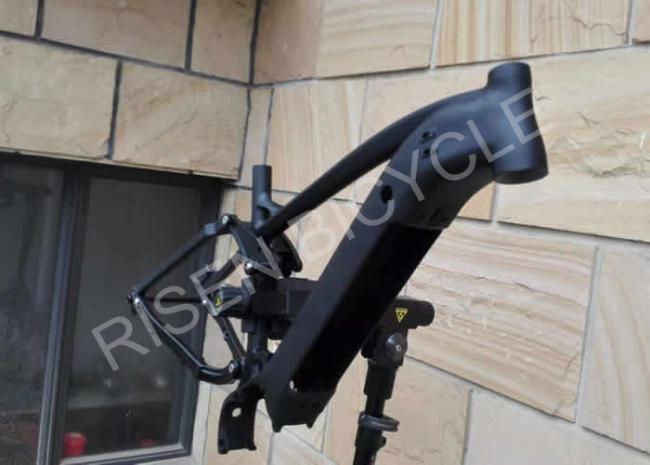

27.5er Boost Full Suspension Electric Bike Frame Bafang G521 500w Ebike
Price:
usd385-480.00/unit ex works
MOQ:
50 units
Delivery Time:
60-75 days
Brand:
OEM
Product Description
27.5er Boost Full Suspension Electric Bike Frame Bafang M600 500w Ebike
M600 motor the newest motor designed by Bafang. It has feature of lightweight, robust power and compact structure.
E6060S has integrated built-in down tube which make the frame look like an ordinary bike frame.
Features:
1. 27.5er Boost Full Suspension Electric Bike Frame
2. Motor: Bafang M600 mid-drive motor. Battery Case Built-in Integrated Downtube
3. Wheel Travel: 150mm, and Shock Size:190x51mm
4. Wheel Size 27.5" Boost with Dropout 148x12mm. Max. tire 27.5x3.00 or 29x2.35
5. Sizes 15.5", 17", 19" available.
Technical Data:
| Product | Bafang G521 Electric Full Suspension Bike Frame |
| Model | E6060S |
| Material | Aluminum Alloy 6061, T4&T6 treatment |
| Welding | TIG+Flat Welding |
| Wheel Size | 27.5" Boost |
| Rear Dropout | 148x12mm |
| Tire Maximum | 27.5"x3.00 or 29x2.35 |
| Motor Applicable | Bafang G520 Mid-Drive Motor,500W,36/48V |
| Battery Case | Built-in integrated Downtuble |
| Headtube | Tapered(1-1/8" upper, 1-1/2" lower) (44/55) |
| Seatpost | 31.6 mm |
| Headtube Angle | 66 degree |
| Wheel Travel | 150mm |
| Shock Size | 190x 51mm |
| Sizes available | 15.5", 17", 18.5",20.5" |
| Routing | Internal Routing |
| Pivot bearing | USA. Enduro Premium bearings |
| Riding Style | Electric AM/Enduro mountain bike |
| Feature | Large Power, Long TraveL Fulll Suspension Bike Frame |
| OEM | acceptable |
| ODM | Acceptable |
| Painting | raw materials or as per customer's painting design |
