4-011-04-0905 4011040905 FESTO Solenoid Valve 526990 5/2-WAY 0.9-10 BAR CPASC1-M1H-M-P-2.5
4-011-04-0905 4011040905 FESTO Solenoid Valve 526990 5/2-WAY 0.9-10 BAR CPASC1-M1H-M-P-2.5

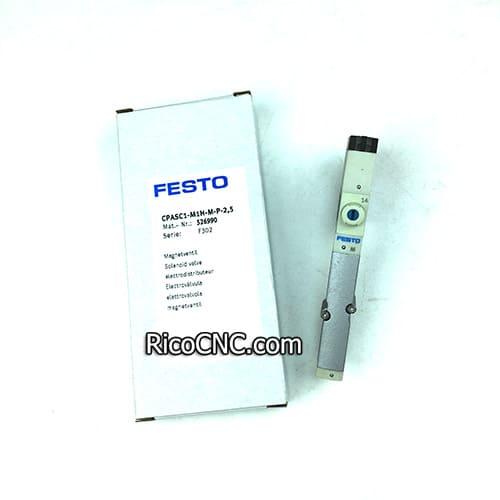

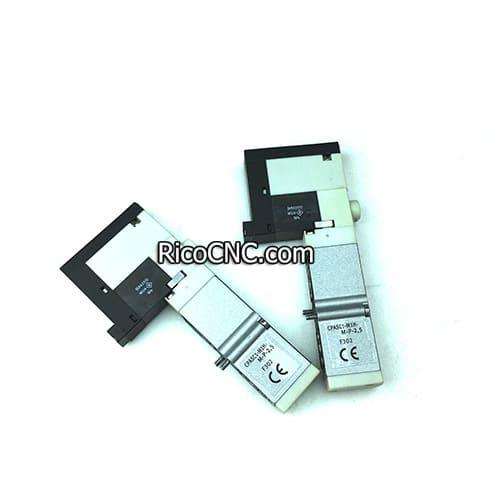

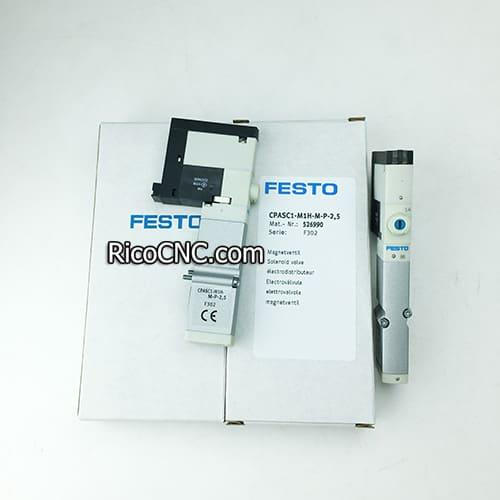

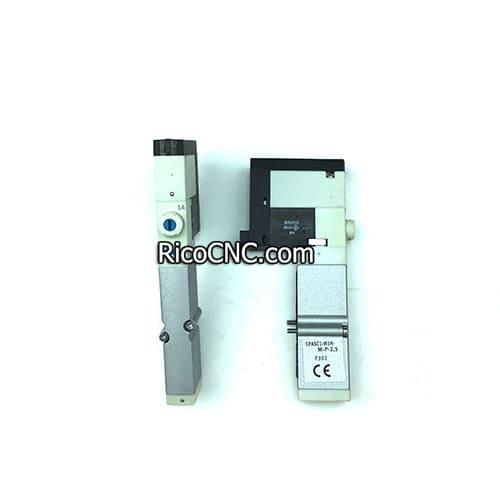

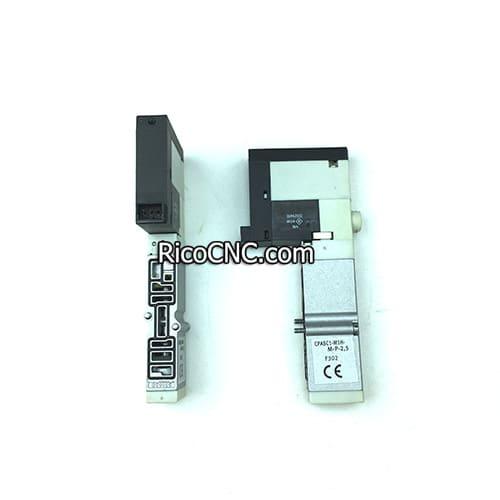

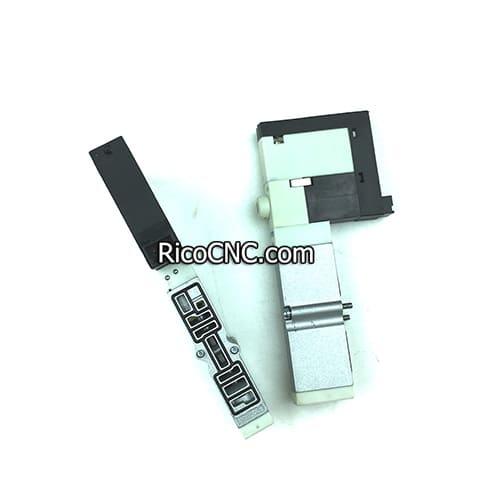

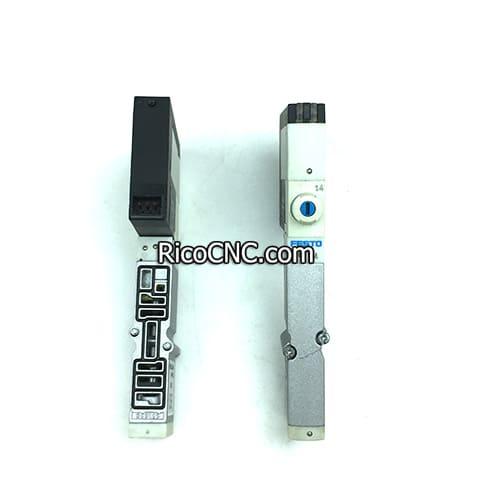

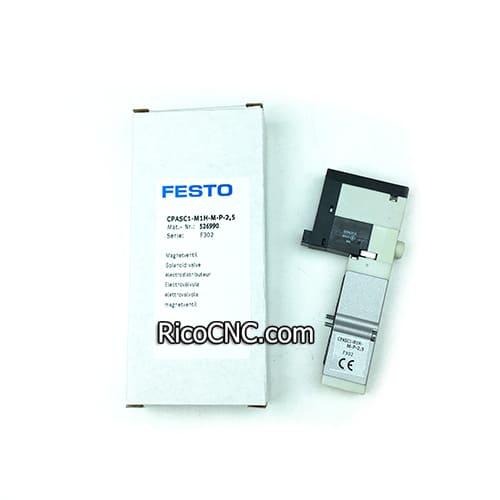

This solenoid valve is made by FESTO, part number is 526990, For valve terminal CPA-SC, sub-base valve with plug-in connection.Type to be discontinued.
FESTO solenoid valve can be used on Homag woodworking machines. Homag part number is 4-011-04-0905 or 4011040905.
FESTO 526990 Technical data:
| Feature | Value |
| Valve function | 5/2 monostable |
| Type of actuation | electrical |
| Standard nominal flow rate | 220 l/min |
| Operating pressure | -0.9 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Protection class | IP20 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 2.5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Manual override | detenting |
| Pushing | |
| Type of piloting | Piloted |
| Flow direction | reversible |
| Switching position indicator | Yes |
| Pilot pressure | 3 ... 8 bar |
| b value | 0.4 |
| C value | 0.895 l/sbar |
| Switching time off | 20 ms |
| Switching time on | 10 ms |
| Characteristic coil data | 24V DC: 1W |
| Operating medium | Compressed air in accordance with IS08573-1:2010[7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for furtheroperation) |
| CE mark (see declaration of conformity | to EU directive for EMC |
| Corrosion resistance classification CRC | 2 |
| Medium temperature | -5 ... 50 °C |
| Sound pressure level | 95 dB(A) |
| Pilot medium | Compressed air in accordance with IS08573-1:2010[7:4:4] |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 40g |
| Electrical connection | 3-pin Plug |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | Sub-base |
| Pneumatic connection, port 2 | Sub-base |
| Pneumatic connection, port 3 | Sub-base |
| Pneumatic connection, port 4 | Sub-base |
| Pneumatic connection, port 5 | Sub-base |
| Materials information for seals | FPM |
| HNBR | |
| NBR | |
| Materials information, housing | Aluminium die cast |
FESTO 573418 VUVG-B10-B52-ZT-F-1T1L Air Solenoid Valve, 4011040905 or 4-011-04-0905 FESTO 526990 CPASC1-M1H-M-P2.5; 4011041727 or 4-011-04-1727 FESTO 558369 VUVB-ST12-M52-MZH-QX-D-1T1, 4011041130 or 4-011-04-1130 valve 526992 5/2 impuls festo CPASC1-M1H-J-P-2,5 also are available here.
