CAT50 tooling kit CAT50 ER Collet Chuck Tool Holders for CNC Metalworking Machines
Price:
Negotiable
MOQ:
2 pcs
Delivery Time:
1 workday
Brand:
RicoCNC
Product Description

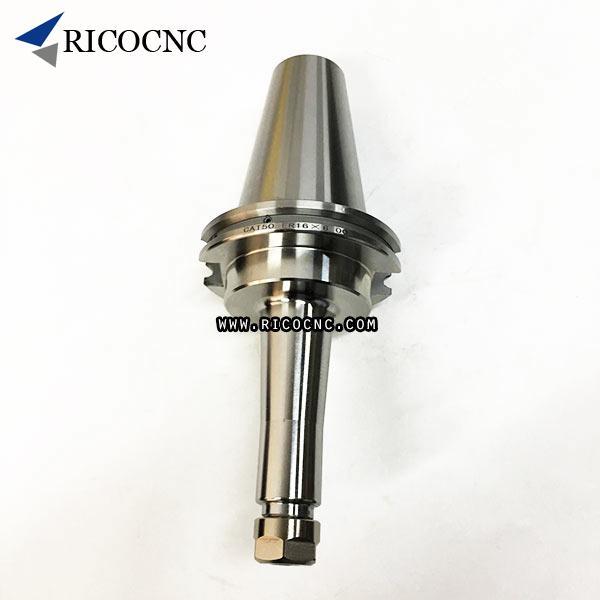

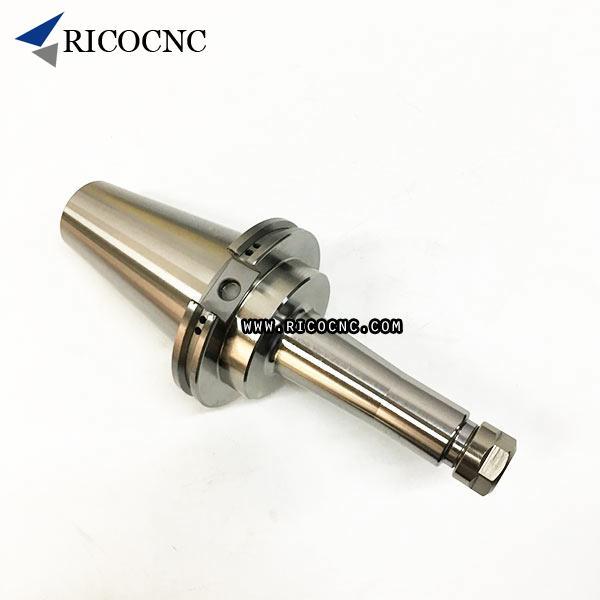

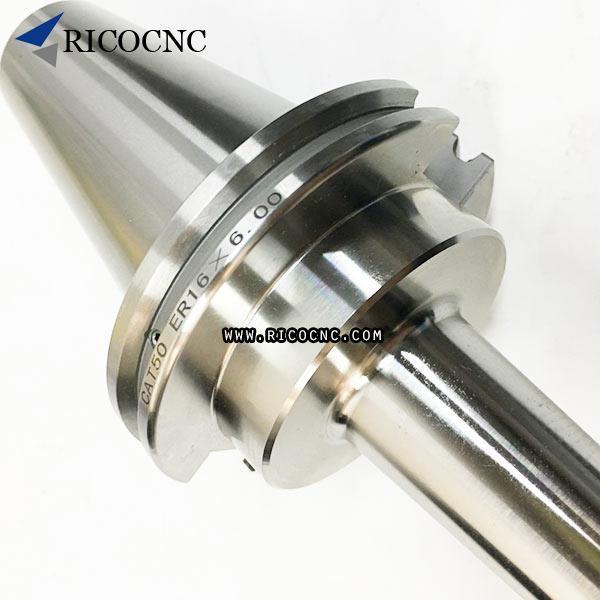

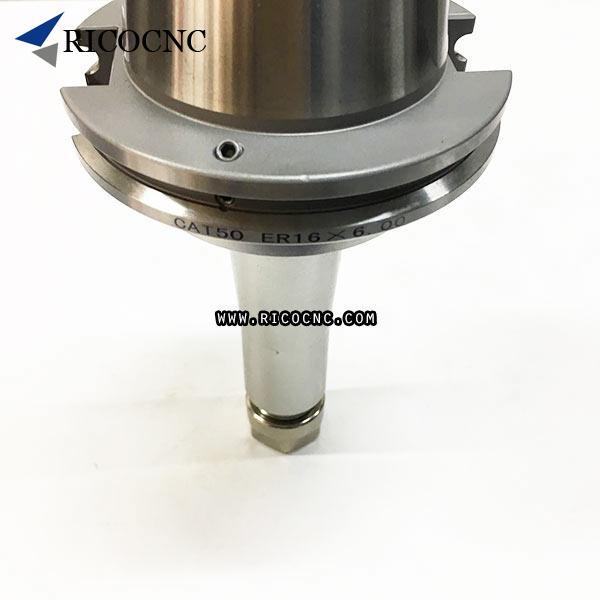

CAT50 tooling kit CAT50 ER Collet Chuck Tool Holders for CNC Metalworking Machines
CAT50 tool holder are widely used in big size CNC machine for metal working.
RicoCNC supplies a range of CAT50 ER collet chuck tool holders, here are the models and sizes in Inch:
| Model NO. | L | L1 | D | d1 | d2 | d3 | T | KGS |
| CAT50-ER16-4'' | 8'' | 4'' | 3.875'' | 1.102'' | 0.63'' | 2.75 | M10*1.5P | 4.10 |
| CAT50-ER16-6'' | 10'' | 6'' | 3.875'' | 1.102'' | 0.63'' | 2.75 | M10*1.5P | 4.28 |
| CAT50-ER16-8'' | 12'' | 8'' | 3.875'' | 1.102'' | 0.63'' | 2.75 | M10*1.5P | 4.40 |
| CAT50-ER20-4'' | 8'' | 4'' | 3.875'' | 1.339'' | 0.788'' | 2.75 | M12*1.75P | 4.20 |
| CAT50-ER20-6'' | 10'' | 6'' | 3.875'' | 1.339'' | 0.788'' | 2.75 | M12*1.75P | 4.45 |
| CAT50-ER20-8'' | 12'' | 8'' | 3.875'' | 1.339'' | 0.788'' | 2.75 | M12*1.75P | 4.60 |
| CAT50-ER25-4'' | 8'' | 4'' | 3.875'' | 1.654'' | 0.984'' | 2.75 | M16*2.0P | 4.15 |
| CAT50-ER25-6'' | 10'' | 6'' | 3.875'' | 1.654'' | 0.984'' | 2.75 | M16*2.0P | 4.50 |
| CAT50-ER25-8'' | 12'' | 8'' | 3.875'' | 1.654'' | 0.984'' | 2.75 | M16*2.0P | 4.70 |
| CAT50-ER32-4'' | 8'' | 4'' | 3.875'' | 1.969'' | 1.26'' | 2.75 | M16*2.0P | 4.35 |
| CAT50-ER32-6'' | 10'' | 6'' | 3.875'' | 1.969'' | 1.26'' | 2.75 | M16*2.0P | 4.60 |
| CAT50-ER32-8'' | 12'' | 8'' | 3.875'' | 1.969'' | 1.26 | 2.75 | M16*2.0P | 4.90 |
| CAT50-ER40-4'' | 8'' | 4'' | 3.875'' | 2.48'' | 1.575'' | 2.75 | M20*2.0P | 4.25 |
| CAT50-ER40-6'' | 10'' | 6'' | 3.875'' | 2.48'' | 1.575'' | 2.75 | M20*2.0P | 4.80 |
| CAT50-ER40-8'' | 12'' | 8'' | 3.875'' | 2.48'' | 1.575'' | 2.75 | M20*2.0P | 5.1 |
| CAT50-ER50-4'' | 8'' | 4'' | 3.875'' | 3.07'' | 1.969'' | 2.75 | M24*3.0P | 4.85 |
| CAT50-ER50-6'' | 10'' | 6'' | 3.875'' | 3.07'' | 1.969'' | 2.75 | M24*3.0P | 5.55 |
| CAT50-ER50-8'' | 12'' | 8'' | 3.875'' | 3.07'' | 1.969'' | 2.75 | M24*3.0P | 5.7 |
We also have CAT50 tool holder forks for the auto tool changer ATC tool magazines, also CAT40 tool holders are available, if any needs, welcome your inquiry.
This is a one-stop shop for CNC toolings, spare parts, welcome to contact us.
