CNC router parts DIY Spindle Clamp Hold Downs Auto Pressure Foot Plates

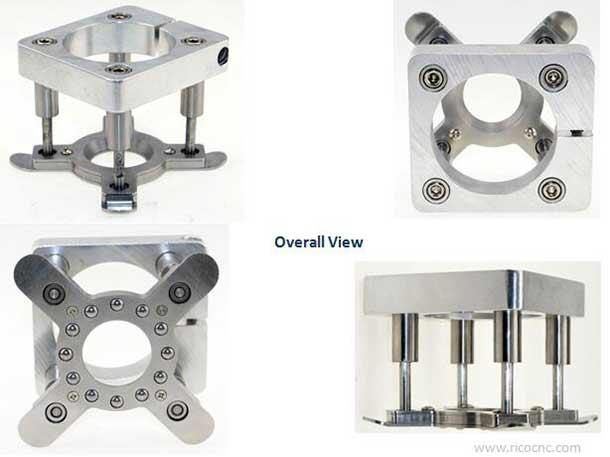

CNC router parts Spindle Clamp Hold Downs Auto Pressure Foot Plates

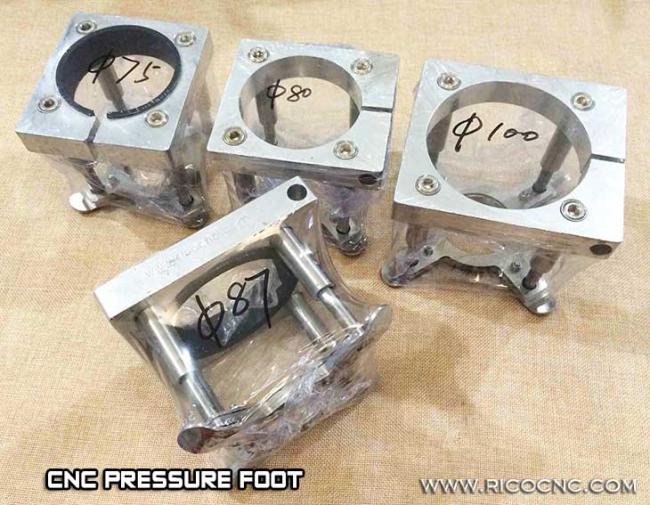

Model: spindle diameter 125mm/120mm/100mm/87mm/85mm/80mm/75mm/73mm/65mm etc
For thin work piece processing, it is not easy to be fixed by clamps and screws. Usually workers press the work piece when the cnc router is working. It is very dangerous. Also the gas or the dust of the workpiece are very harmful to the workers' health, some will cause cancer. Now a good cnc router accessory tools will be very helpful--cnc pressure foot hold down will achieve automotive clamp.
Spindle Pressure Foot Applications:

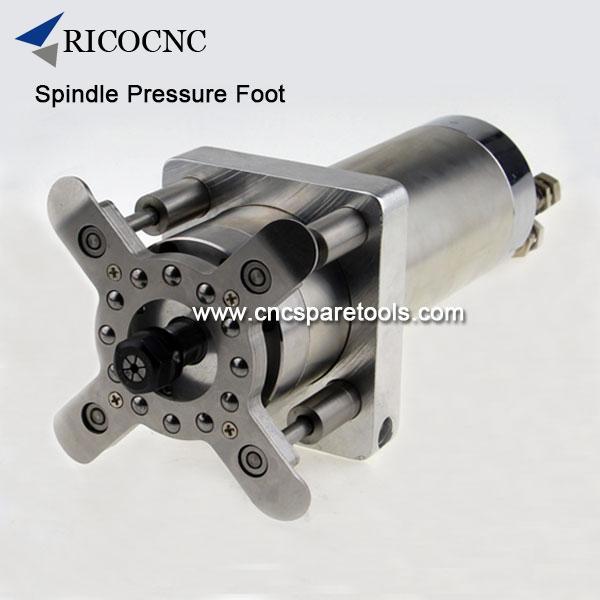

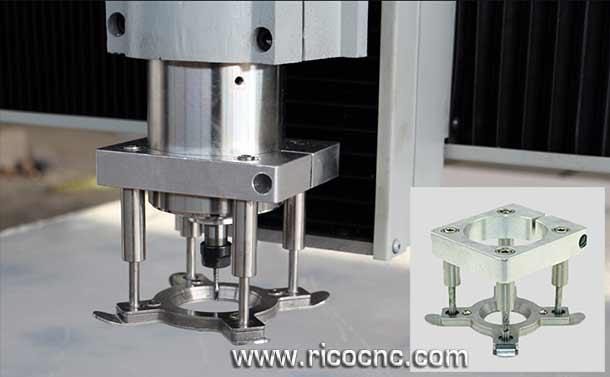

Fix the cnc pressure foot on the spindle, adjust the height, then fixed the holding screw tightly is ok. How to adjust the height? Working on panals which is within 3mm, just need keep the bottom of the auto pressure foot and the cutter bit nose at the same level. If panel is 4mm-6mm, make the bottom of the bottom of the cnc automatic pressure foot 2-3mm over the cutter bit end. The rest can be done in the same manner.
Some time for the big panel, we have to use some double faced adhesive tape or instant adhesive to help fix on some key point areas.
Here is the video about the automatic cnc pressure foot working, welcome to check
Different spindle, the spindle diameter is different. So different size cnc router spindle automatic pressure foot is needed. Please contact us to get more information.
Payment can be made by Western Union, Paypal, T/T.
