VCBL-K1 140x115x50 CNC Vacuum suction block 10.01.12.00210 for PTP CNC 4011110367

VCBL-K1 140x115x50 CNC Vacuum suction block 10.01.12.00210 for PTP CNC 4011110367

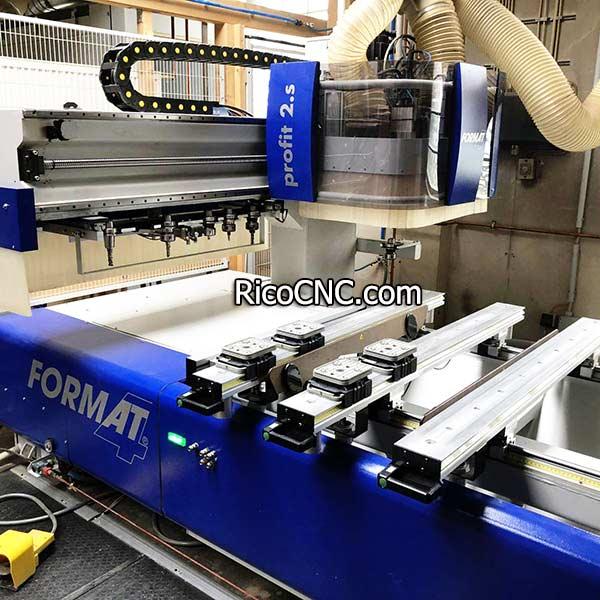

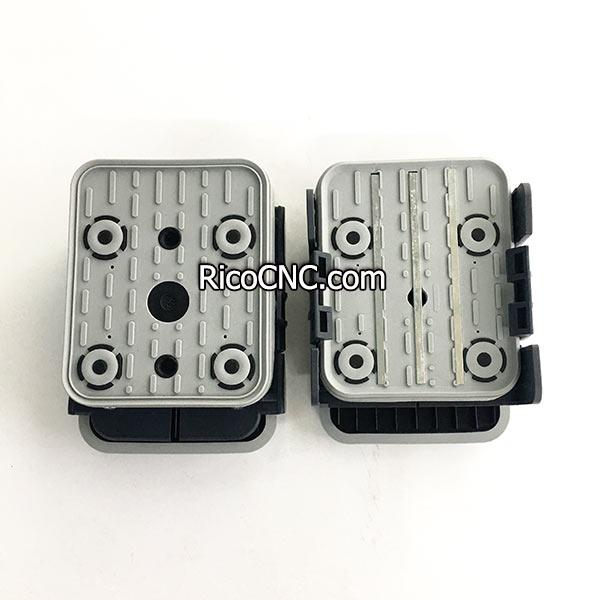

This 4011110367 vacuum block is a height of 50mm 1-circuit consoles vacuum suction cup, Schmalz article No. 10.01.12.00210, used with Weeke/Homag and other PTP CNC machine centre with pod and rail table.

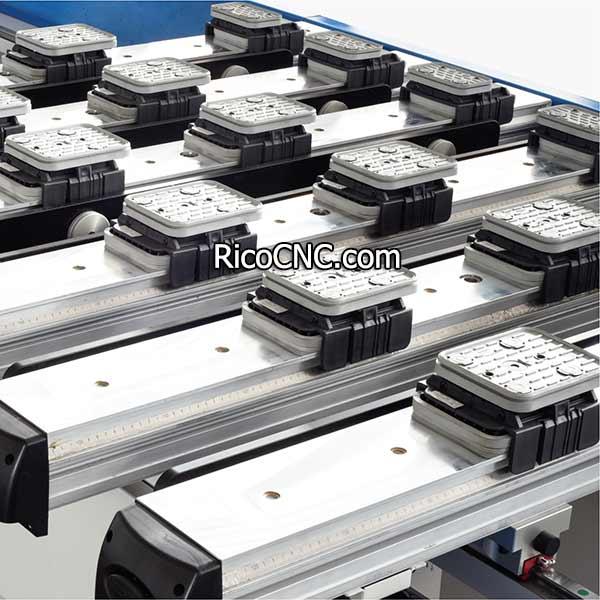

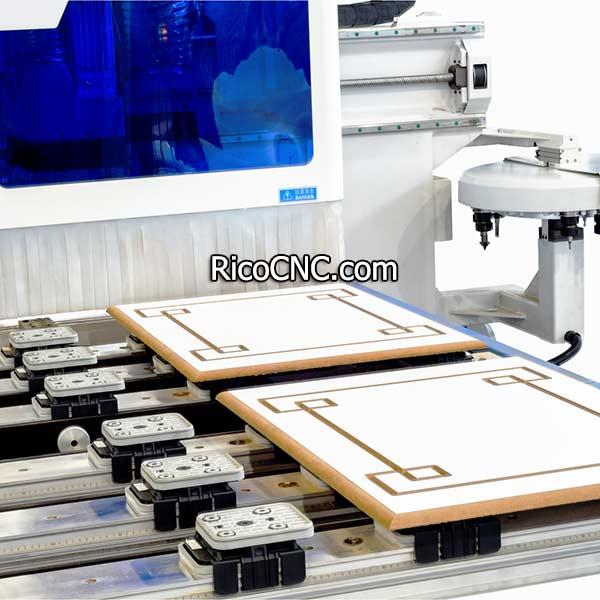

VCBL-K1 140x115x50 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction pods work with Homag, Weeke, IMA, Masterwood, Felder, Holz-Her, Reichenbacher, Busellato, Format 4 and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.

4-011-11-0367 pod size:

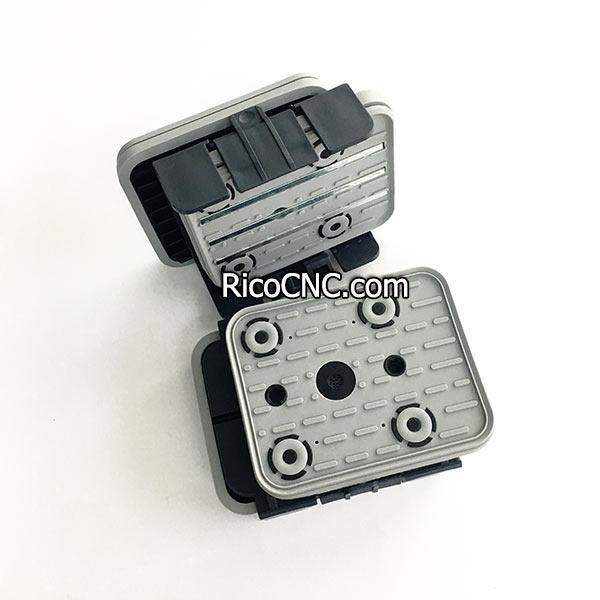

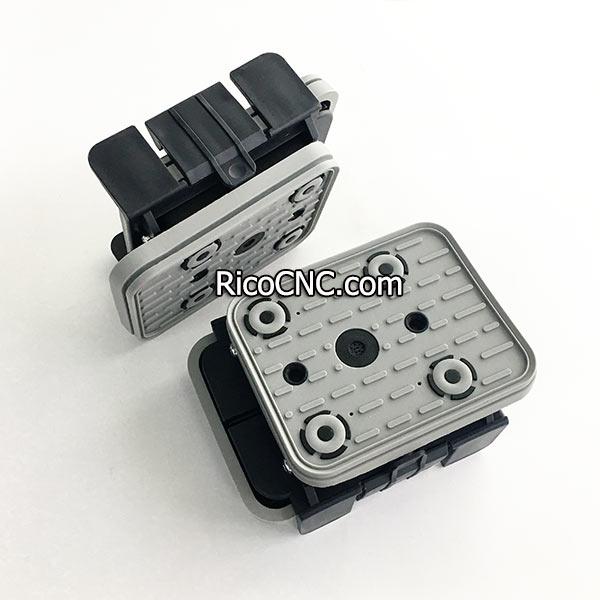

Dimensions (LxW): 140 x 115 mm
Height H: 50 mm

Vacuum cups VCBL-K1 140x115 H=50mm is the standard equipment in CNC Homag, Weeke, IMA, Masterwood, Felder, Holz-Her, Reichenbacher.
SCM / Morbidelli part No.: 2990340005e
HolzHer: 2760207

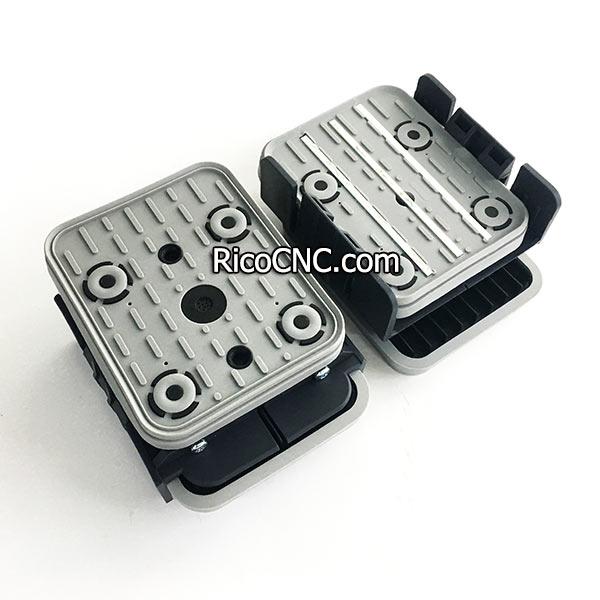

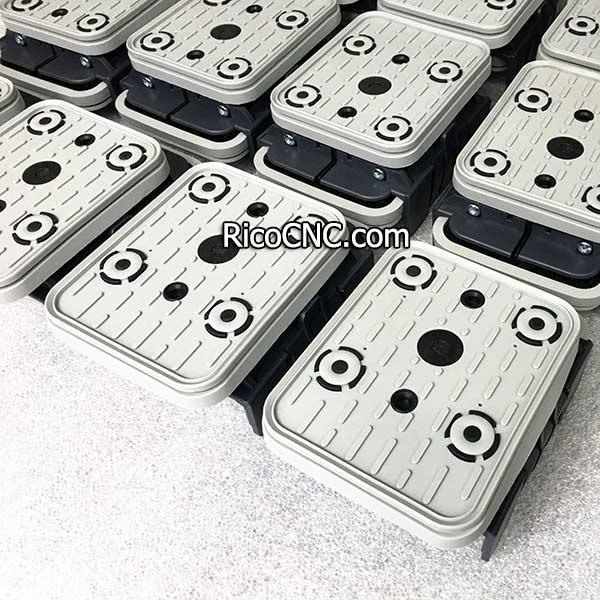

Schmalz: 10.01.12.00210

The 10.01.12.00210 suction cup comes with a complete entire set.
Also, the top rubber pads 4-011-11-0077, 10.01.12.00488 and bottom vacuum pads 10.01.12.00228 are available as replacements.

A range of replacement vacuum cups and rubber gaskets  for Homag, Weeke, Biesse, SCM woodworking machines for sale here, welcome to contact us.

RicoCNC is a reliable source for CNC tools & Woodworking machine spare parts.
