Chumpower DIN40 15 Degree Spindle Clamping Gripper for CNC Machine
Chumpower DIN40 15 Degree Spindle Clamping Gripper for CNC Machine

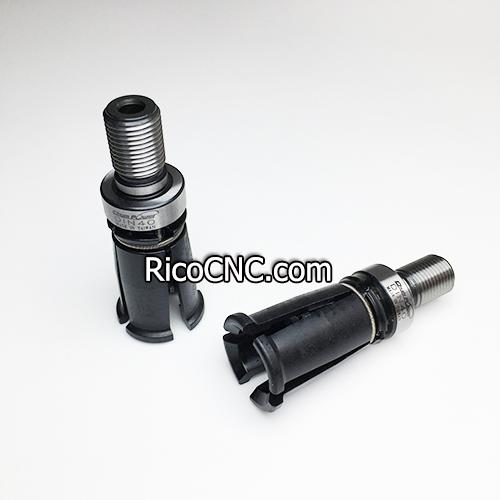

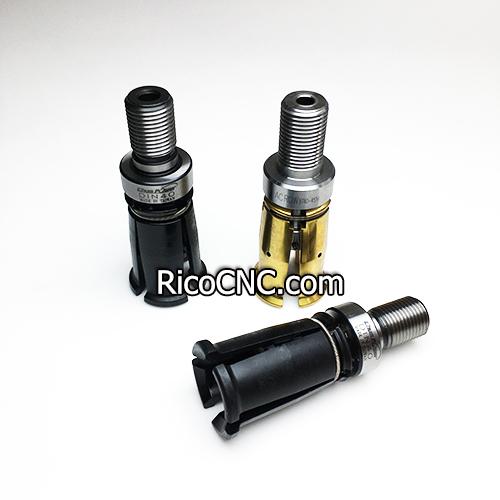

This is a Chumpower DIN40 CNC tool gripper. CHUMPOWER is a professional precision tooling chucks manufacturer in Taiwan. This spindle gripper can replace Acrow, Talons DIN40 gripper.
All the materials of this Chumpower CNC gripper are composed of alloy steel.

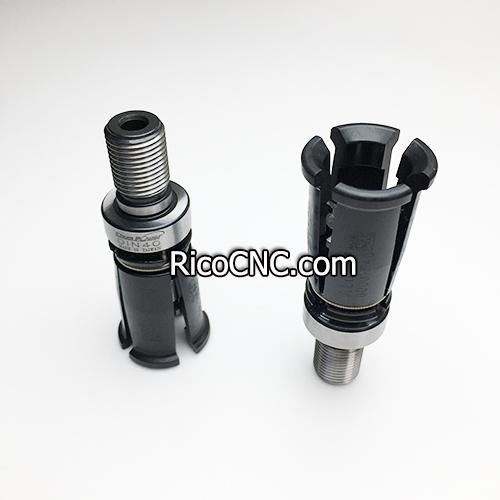

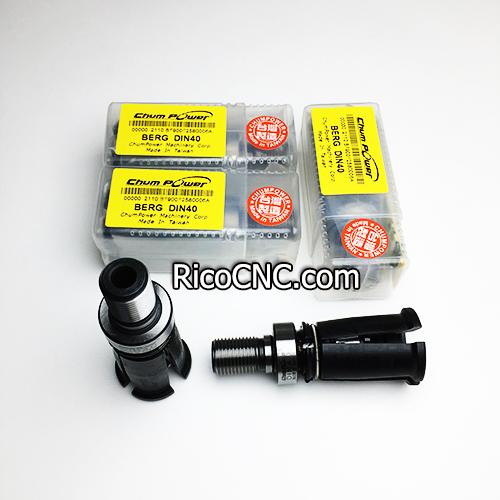

The pull claw follows the tool standard of the DIN69871/69872 system.

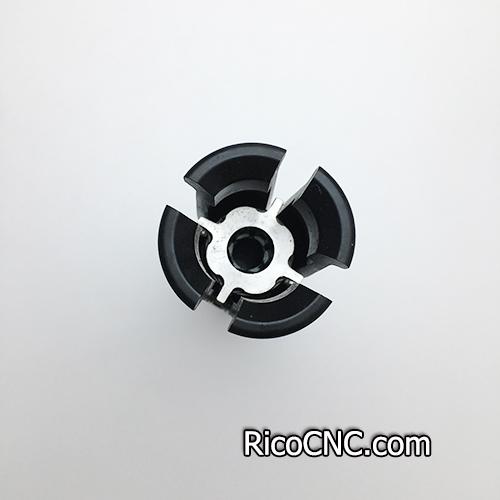

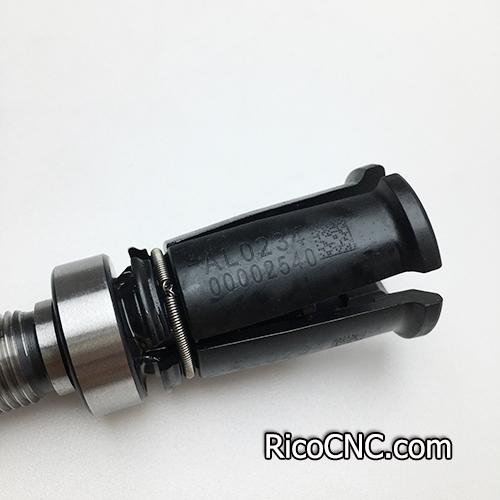

Grippers are developed for integration and comprise four clamping segments, which are suitable for high and low-speed turning spindles.
The surfaces of these CNC pull stud grippers are wear-resisting, anticorrosive, and special tensile force treatment.
The tensile force can bear 1,000 KG force which means 1 million times of lifetime testing circle in each gripper. (**ie.DIN40)
Easy to assemble and suitable for every type of spindles.

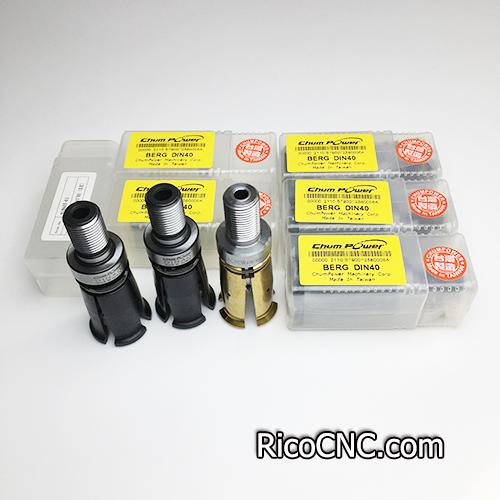

The tool grippers adopt the rules of BERG standards.
Specification of Chumpower DIN40 pull stud gripper

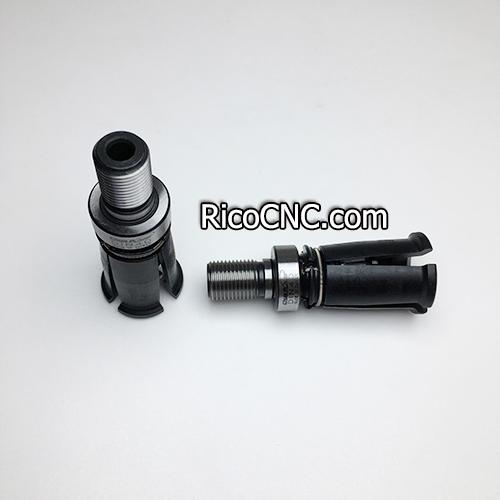

| Model | BA900BGD40001A |
| A ° | 15 ° |
| a | 28 |
| b | 26.4 |
| c | 28.5 |
| d | 16 |
| e | 35 |
| f | M16*1.5P |
| i | 26 |
| k | 52 |
| l | 10 |
| m | 4.5 |
| n | 7 |
| o | 4 |
| p | 39 |
| hL | 5 |
| Fs max KN | 18 |
| MA(Nm) | 65 |
CHUMPOWER DIN30 BA900BGD30001A and DIN50 BA900BGD50001A are also available.
