VCBL-K2 130x30x100 Q Vacuum Block for Schmalz 2-circuit Console for Homag Weeke

• • VCBL-K2 130x30x100 Q vacuum block (transverse)
• • Replacement for 10.01.12.00854 vacuum pods
• • Suction cup VCBL-K2 130x30x100 Q
• • Suction block for 2-circuit console Schmalz
• • Double-circuit blocks VCBL-K2 vacuum cup
• • Dimensions (LxW): 130 x 30 mm height 100mm
• • 130x30mm vacuum cup transverse for narrow parts
• • Dimensions of bottom suction plate 160 x 115 mm

• VCBL-K2 130x30x100 Q Vacuum Block for Schmalz 2-circuit Console for Homag Weeke

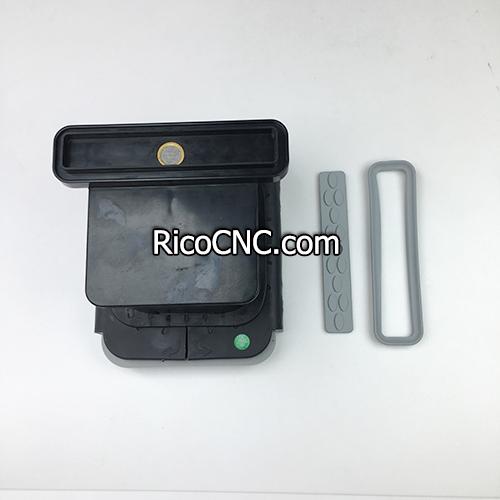

  This vacuum block is VCBL-K2 130x30x100 Q vacuum pod. It can replace Schmalz 10.01.12.00854 and Busellato 68 780 010 000 suction block. This vacuum unit is for double-circuit console Schmalz and especially for clamping narrow workpieces.


  These VCBL-K2 130x30x100 Q suction cups are widely used in Homag, Weeke, and Busellato CNC machining centers.



  Here is the dimension of 130x30mm vacuum cup:

  Upper rubber suction plate Length x Width: 130 x 30 mm
  Height H.100 mm
  Bottom rubber suction surface length x width: 160 x 115


  The top and bottom rubber are replaceable.

  Top rubber seals: 130x30mm, 4011110249

  Sealing frame 10.01.12.00804 .
  Top rubbing suction rubber 10.01.12.00805 .
  Lower rubber pad bottom suction plate 160x114mm, 4-011-11-0340, 4-011-11-0191.

  VCBL-K2 130x30x100 L 10.01.12.00855 vacuum suction blocks are also available here.


  The only difference between #10.01.12.00854 and #10.01.12.00855 is the orientation of the vacuum pod.


  RicoCNC carries a range of vacuum blocks for CNC machining centers. If you are looking for CNC vacuum pods, Welcome to contact us!
