Pole Mount FTTA 8 Ports Mini SC Fiber Optical Termination CTO NAP Box
Pole Mount FTTA 8 Ports Mini SC Fiber Optical Termination CTO NAP Box
Description:
- 10 Port CTO/NAP/FAT Box is used for Hua/wei Fast Connect solution.
- It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing.
- All ports are equipped with hardened adapters.
- The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency and reduces the total cost of operation (TCO) by 15–30%.
- KCO-FTTA-10B outdoor water-proof fiber optic splitter terminal access box is able to hold up to 10 subscribers.
- It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system.
- It integrates fiber splicing, splitting, storage and cable management in one solid protection box.
- It can connect the drop cable with feeder cable as the FDB 10port fiber optic distribution box in the FTTx network, which is cable to meet at least 10 users requirements. fiber distribution box can help fiber cable splicing, splitting, storage, and termination management with suitable space in a solid protection enclosure box.
- It is used as a termination point for 1pc of ISP cable to connect with 1pc of OSP cable and 8pcs of drop cable in FTTx network system.
- It integrates fiber splicing, splitting, storage, and cable management in one solid protection box.
Features
- The body is made of high quality engineering plastic with good strength;
- With good water-proof performance, suitable for indoor and outdoor natural environments;
- With water-proof adapter, the box can be operated more conveniently;
- The drop leaf can be installed 2 pcs of 1*4 & 1pc of 1*8 or 1pc of 1*9 tube splitter or also can install 1pcs 1*2 splitter and 1pc 1*8 Splitter.
- Protection IP Grade is IP67
- Material is PC+ABS
- It designed for connected with two different waterproof adapters, OptiTap or MINI SC/APC Adapters
Application:
- Passive fiber optic system
- FTTH,
- FTTA,
- FTTB,
- FTTO,
- Telecom Tower,
- CATV system,
- WAN,
- LAN, ...
Technical data:
- Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
- Main technical datasheet Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
- Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
- Photoelectric performance
Connector attenuation (insertion, interchange, repetition) ≤0.3dB.
Return loss: APC ≥60dB, UPC ≥50dB, PC ≥40dB,
- Main mechanical properties parameters
Connector insertion and removal durability life > 1000 times
Specification:
| P/N | KCO-FTTA-10B |
| Dimension (A*B*C) /mm | 209*205*86 |
| Max. Capacity | 4 cores (dual fiber) |
| Cable exit | 10 pcs water-proof connectors |
| Splitter quantity | 2pcs 1*4 mini type splitter |
| Waterproof grade | IP68 |
| Material | PC+ABS |
| Color | Black |
| Impact grade | IK10 |

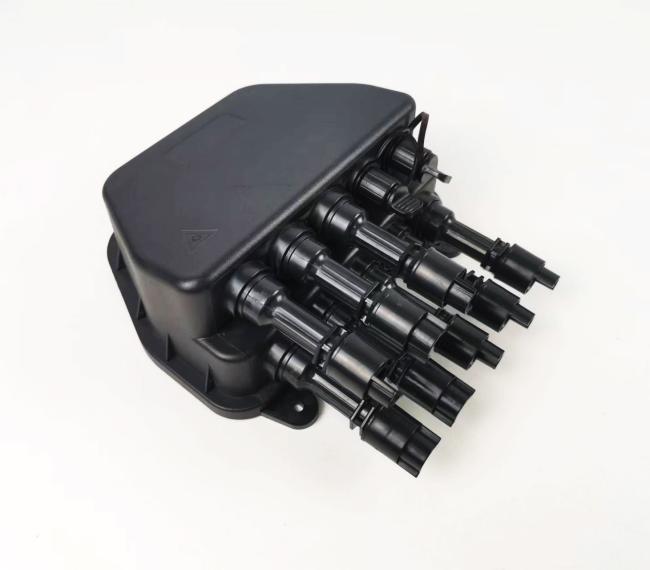

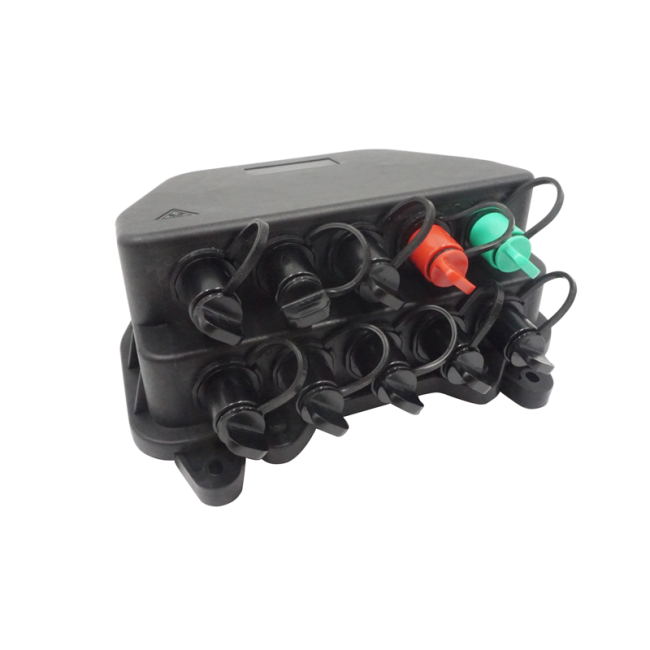

Products photo:
