FTTH Waterproof Fiber Optic Terminal Box 4 Ports SC APC Optical Distribution Box
FTTH Waterproof 4 Ports SC/APC Fibre Optics Terminal Distribution Box
Descriptions:
- This outdoor waterproof fiber optic distribution box (FDB) is special design for outdoor application.
- It can match IP65 waterproof standard.
- KCO-FDB-04-MK is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
- This ODP have 1 input port for outdoor cable and 4 output ports for Ftth drop cable on the bottom.
- It is easy to install on the pole or wall.
- It is especially for connection and protection for fiber cable for FTTH.
- This fiber optic terminal box applies to the communication room and various network room wall installation or desktop installation.
- FTTH insert optical fiber terminal splitter box, arc, horizontal type.
Feature:
- Light weight, small size, save cost.
- Up to 4 FTTH drops.
- Suitable for wall and pole mountable.
- User familiar industry interface, using high impact plastic.
- Can accommodate 1ⅹ4 optical fiber splitter.
- 4 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 1 inlet capacity for outdoor cable and 4 outlet ports for ftth drop cable.
- Match cable termination and sealing requirements.
Application
- PON networks;
- Widely used in FTTX systems;
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks
- Data communications networks
- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.

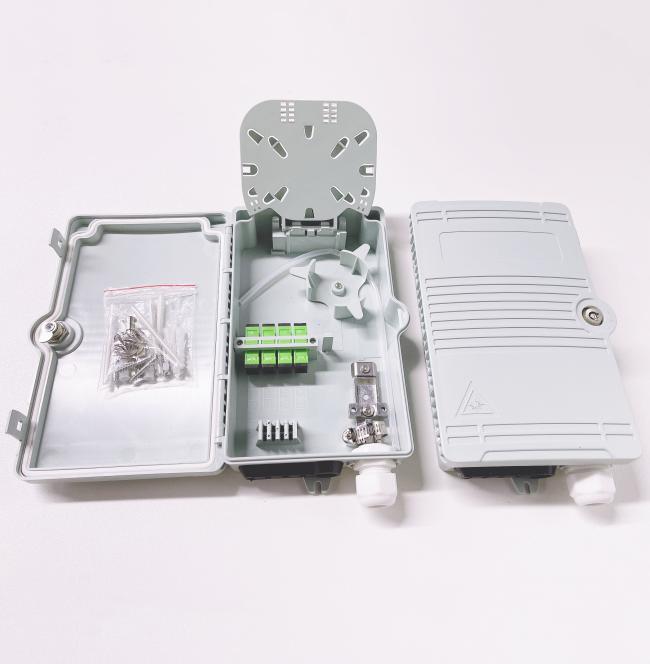

Products photos:
Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa
Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)
Specification:
| Item | KCO-FDB-04-MK |
| Dimension | 190*140*90mm |
| Net Weight | 0.35kg |
| Splice tray | 1pcs |
| Adapter ports | 4 port |
| Splitter | Mini Tube PLC Splitter 1*4 |
| Splitter no. | max. 1pcs |
| Color | Grey |
| Working Temperature | -25°C ~ 60°C (5 to 95% relative humidity) |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc
- Standard shipping port: Shenzhen, Hongkong, Ningbo
