40mm 45mm 60mm FFiber Optic Splice Protection Fusion Splice Heat Shrink Tubes

40mm 45mm 60mm Fiber Optic Splice Protection Fusion-Protection Sleeves Heat Shrink Tube​

Fiber Optic Protection Sleeves Heat Shrinkable Tube:

- Fiber Optic Protection Sleeves Heat Shrinkable Tube is used for protecting and supporting the fusion splice point.

- Single fiber to maximum 12 fibers protection sleeves are available from us.

- The outer jacket of the sleeve is made of polyolefin while the inner tube is made of EVA. The minimum shrinking temperature is 100°C.

- The  Fiber Optic Protection Tube Heat Shrinkable Tube length have: 20mm, 40mm, 45mm and 60mm

- These specially designed protector sleeves provide a way to support and protect a fiber optic fusion splice. As the sleeve is somewhat rigid it does help provide some protection to the splice area.

- The protector sleeves themselves are easy to install which means the potential for damage to the splice is minimal.

- The splice sleeves are heat shrinkable. Once the fusion splicing has taken place and alignment is correct, heat is applied and the sleeve shrinks to provide environmental protection to the splice.

- The Fiber Optic Protection Tube Heat Shrinkable Tube is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

- The Fiber Optic Protection Tube Heat Shrinkable Tube can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.

Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12cores (for types).

Production Detail:

- Heat Shrinkable Fiber Optic Splice Protectors
- Consist of cross linked polyolefin,

- Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.

- Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.

- Sealing structure make the splice free from influence of temperature and humidity in special environment.
- Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

Features:

- 201 stainless steel needle

- Length: 40mm, 45mm, 60mm.
- Polished stainless steel rod
- Polyolefin clear inner tube provides moisture and cushion protection
- Competitively priced and stocked for immediate delivery

- Installed using a heat gun or protection sleeve oven

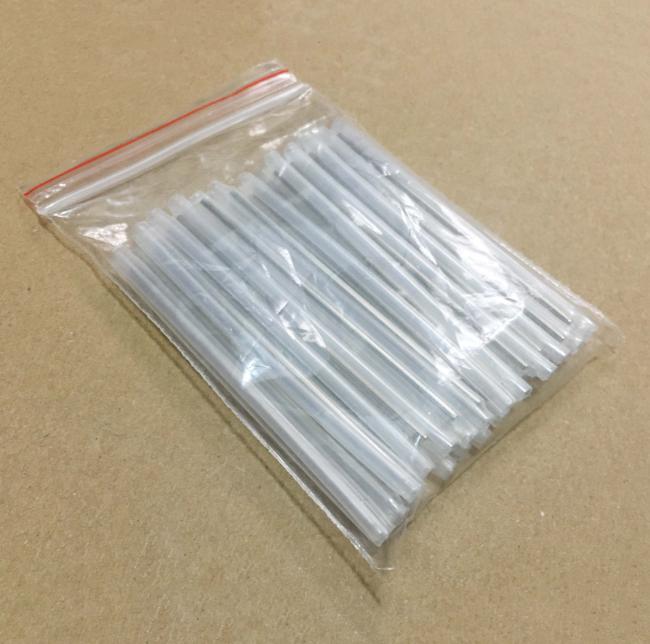

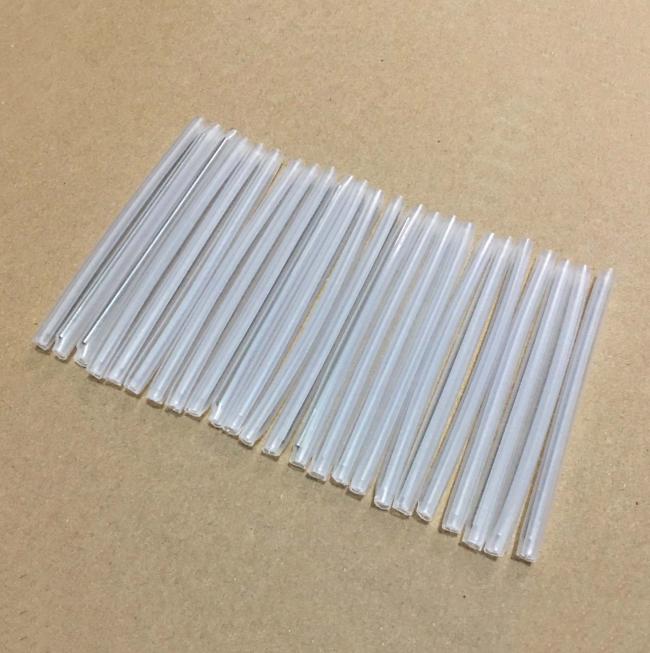

Product photo:

Technical Data:

Packing:

100pcs/ small bag.

30000pcs/big bag.

Box dimension: 45*26*53 cm

Packing capacity: 40,000pcs/ box

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
