Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
Outdoor All Dielectric Self Supporting SM G652D 12fo 96fo Fiber Optical Cable ADSS
What is ADSS optic fiber outdoor cable?
ADSS fiber optic outdoor cable, or All-Dielectric Self-Supporting cable, is a type of optical fiber cable designed to be strong enough to support itself between structures without needing a conductive metal support or messenger wire to use in outdoor.
ADSS fiber optic cable adopts the twisted structure, 250um fiber is inserted into the loose tube made of high modulus materials. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The gap of the cable core is filled with a water-blocking yarn and a water-blocking tape longitudinally wrapped by the cable core. After stranded layer of aramid yarn are applied as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

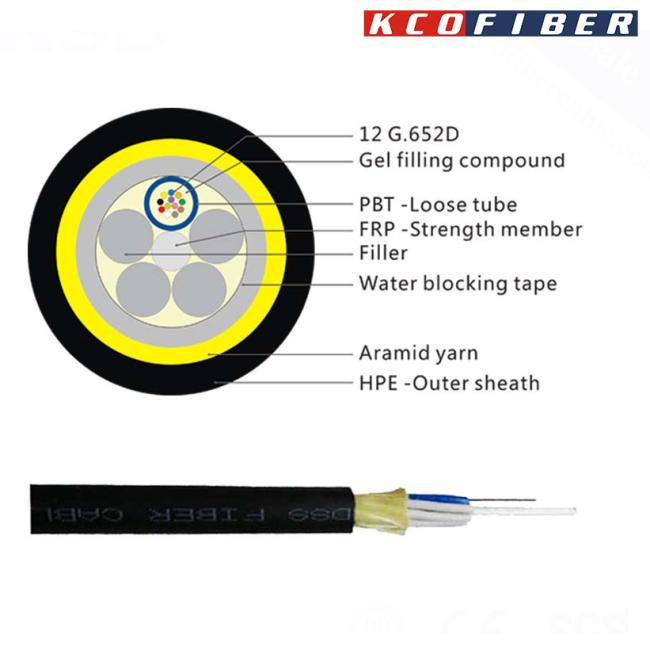

ADSS fiber optical cable structure:
Characteristics:
All-Dielectric Construction: ADSS fiber optic cables are made entirely of non-conductive materials, making them safe for installation near energized power lines and eliminating the need for grounding.
Self-Supporting: They are designed to support their own weight and the forces of wind and ice, negating the need for a separate messenger wire.
High Tensile Strength: ADSS cables utilize materials like aramid fiber yarns to achieve high tensile strength, allowing them to withstand various environmental stresses.
Environmental Resistance: They are designed to resist UV radiation, temperature fluctuations, and moisture, making them suitable for diverse climates.
Long Span Capabilities: ADSS cables can span considerable distances between support structures (poles or towers), reducing the number of supports needed.
Fiber characteristic:
|
Fiber style |
Unit |
SM G652D |
|
|
Condition |
nm |
1310/1550 |
|
|
Attenuation |
dB/km |
≤0.34/0.22 |
|
|
Dispersion |
1550nm |
Ps/(nm*km) |
≤18 |
|
|
1625nm |
Ps/(nm*km) |
|
|
Bandwidth |
850nm |
MHZ.KM |
---- |
|
|
1300nm |
MHZ.KM |
---- |
|
Zero dispersion wavelength |
nm |
≥1302 ≤1322 |
|
|
Zero dispersion slope |
nm |
≤0.091 |
|
|
PMD Maximum Individual Fiber |
|
≤0.2 |
|
|
PMD Design Link Value |
Ps(nm2*km) |
≤0.08 |
|
|
Fibre cutoff wavelength λc |
nm |
≤1330 |
|
|
Cable cutoff wavelength λcc |
nm |
≤1260 |
|
|
MFD |
1310nm |
um |
9.2±0.4 |
|
1550nm |
um |
10.4±0.8 |
|
|
Numerical Aperture (NA) |
|
---- |
|
|
Step (mean of bidirectional measurement) |
dB |
≤0.05 |
|
|
Irregularities over fiber length and point |
dB |
≤0.05 |
|
|
Difference backscatter coefficient |
dB/km |
||
|
Attenuation uniformity |
dB/km |
≤0.01 |
|
|
Core diameter |
um |
9 |
|
|
Cladding diameter |
um |
125.0±0.1 |
|
|
Cladding non-circularity |
% |
≤1.0 |
|
|
Coating diameter |
um |
242±7 |
|
|
Coating/chaffinch concentrically error |
um |
≤12.0 |
|
|
Coating non circularity |
% |
≤6.0 |
|
|
Core/cladding concentricity error |
um |
≤0.6 |
|
|
Curl(radius) |
um |
||
Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

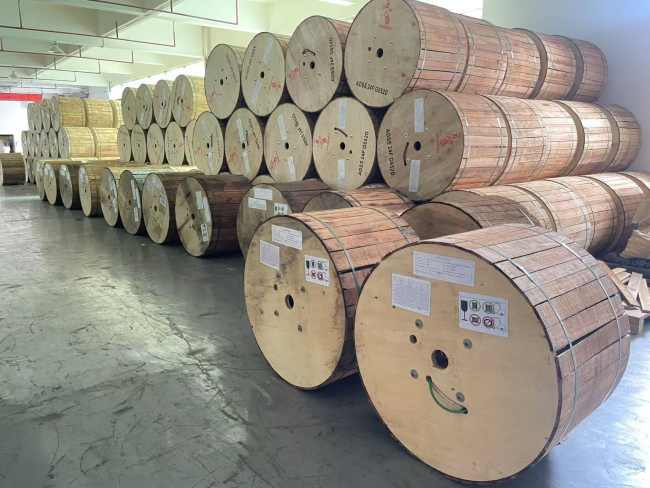

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
