What is GYTC8S fiber optic cable?
GYTC8S: Outdoor Cable Stranded Loose Tube Self-supporting Aerial Cables
GYTC8S fiber optic cable is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as thesupporting part are completed with a PE sheath to be figure 8 structures. Corrugated steel tape armored and PE outer sheath providing crush resistance.
It's suitable for installation in aerial, used for long distance and LAN communication systems.

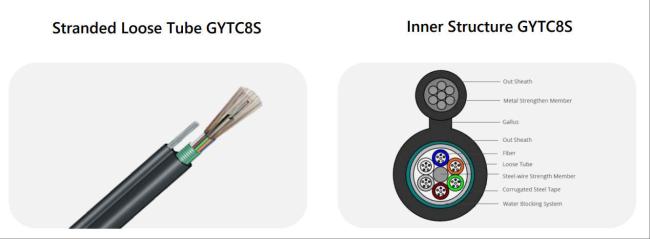

Construction:
Feature:
- Small cable diameter, figure 8 structure
- Self-supporting stranded wires, easily to install
- Excellent mechanical and environmental performance
- Low dispersion and attenuation
- Steel-wire strength member ensures tensile strength
- Corrugated steel tape and the PE outer sheath ensure crush resistance
- Water blocking system to improve the water proof ability
Applications:
- Adopted to Outdoor distribution.
- Suitable for aerial.
- Long distance and local area network communication.
Fiber characteristic:
| Fiber style | Unit | MM | |
| condition | nm | 850/1300 | |
| attenuation | dB/km | ≤3.0/1.0 | |
| ---- | |||
| Dispersion | 1550nm | Ps/(nm*km) | Dispersion |
| 1625nm | Ps/(nm*km) | ||
| Bandwidth | 850nm | MHZ.KM | Bandwidth |
| 1300nm | MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 | |
| Zero dispersion slope | nm | ---- | |
| PMD Maximum Individual Fiber | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ---- | |
| Fibre cutoff wavelength λc | nm | ---- | |
| Cable cutoff wavelength λcc | nm | ---- | |
| MFD | 1310nm | um | ---- |
| 1550nm | um | ---- | |
| Numerical Aperture(NA) | 0.200+/-0.015 | ||
| Step(mean of bidirectional measurement) | dB | ≤0.10 | |
| Irregularities over fiber length and point | dB | ≤0.10 | |
Fiber color:
| 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
