Self-supporting Figure 8 Aerial Outdoor Fiber Optic Cable for Overhead Networks
The GYXTC8S is a figure-8 self-supporting aerial outdoor fiber optic cable designed for reliable performance in external environments. Its integrated stranded steel messenger wire provides the tensile strength required for aerial installation without additional support structures, reducing overall deployment costs.

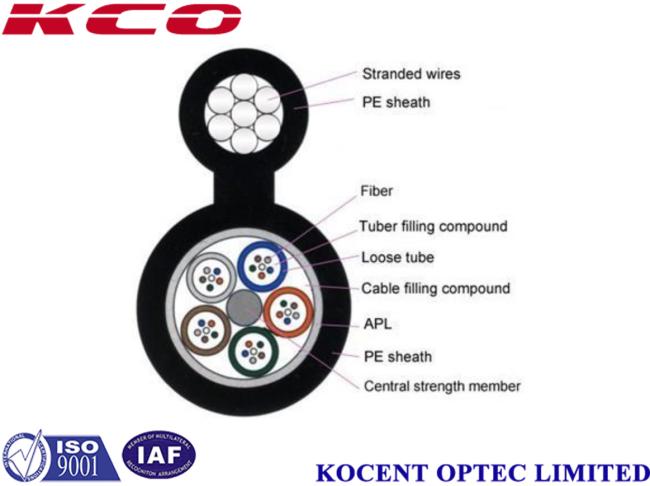

The 250µm optical fibers are positioned within a loose tube made of high-modulus plastic. Each tube is filled with a water-resistant filling compound for protection. Two PSP (polyethylene-steel-polyethylene) layers are longitudinally applied over the outer loose tube. Steel wires and water-blocking compound within the loose tubes ensure a compact, longitudinally water-blocked structure. This cable core, together with the stranded messenger wires forming the supporting section, is completed with a high-density polyethylene (HDPE) sheath in a figure-8 configuration.
- High tensile strength of stranded wires meets self-supporting requirements and reduces installation costs.
- Good mechanical and temperature performance.
- High-strength loose tube that is hydrolysis resistant.
- Special tube filling compound ensures critical protection of the fibers.
- PSP layer enhances moisture-proof performance.
- Small diameter, light weight, and friendly installation.
The GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
| Items | Specifications |
|---|---|
| Fiber Count | 4–48 fo |
| Colored Coating Fiber | Dimension: 250µm ±15µm |
| Color: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua | |
| Loose Tube | Dimension: 2.0 ±0.2 mm |
| Material: PBT | |
| Color: Natural | |
| Messenger Wire Steel Wire | Diameter: 7×1.0 mm |
| Material: Phosphating steel strand | |
| Outer Jacket | Dimension: 4–12 fo: 7.0×13.5 mm ±0.2 mm |
| 24 fo: 9.0×17.0 ±0.5 mm | |
| 48 fo: 9.5×17.5 ±0.5 mm | |
| Outer Jacket Material | HDPE |
| Outer Jacket Color | Black |
| Fiber Style | Unit | MM |
|---|---|---|
| Condition | nm | 850 / 1300 |
| Attenuation | dB/km | ≤3.0 / 1.0 |
| Dispersion (1550 nm) | ps/(nm·km) | — |
| Dispersion (1625 nm) | ps/(nm·km) | — |
| Bandwidth (850 nm) | MHz·km | — |
| Bandwidth (1300 nm) | MHz·km | — |
| Zero Dispersion Wavelength | nm | ≥1295, ≤1320 |
| Zero Dispersion Slope | nm | — |
| PMD Maximum Individual Fiber | — | ≤0.11 |
| PMD Design Link Value | ps/(nm²·km) | — |
| Fibre Cutoff Wavelength λc | nm | — |
| Cable Cutoff Wavelength λcc | nm | — |
| MFD (1310 nm) | µm | — |
| MFD (1550 nm) | µm | — |
| Numerical Aperture (NA) | — | 0.200 ± 0.015 |
| Step (mean of bidirectional measurement) | dB | ≤0.10 |
| Irregularities over fiber length and point | dB | ≤0.10 |
We offer full OEM and ODM support. If you wish to display your own brand logo on the goods—including the cable, packaging bag, label, or any other location—we can accommodate your requirements. Our OEM and ODM service is always ready to assist.
Standard export packing is used: carton box, wooden box, or wooden pallet, according to your requirements.
- International express: UPS, TNT, DHL, etc.
- International air freight: CA, AA, EA, etc.
- By sea.
