96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~5 days after get payment
Brand:
KCO, Kocent Optec Limited
Product Description
96fo 96 Cores 96fibers Single Mode GYTS Armored Optical Fiber Cable For Out Plant Aerial and Duct
1. What is GYTS armored optical fiber cable?
- The GYTS armored optical cable is a robust and highly reliable solution designed specifically for outdoor duct and aerial installations.
- The "GYTS" designation refers to its specific construction: an outdoor-use cable (GY) with a gel-filled loose tube (T) design, protected by a layer of corrugated steel tape armor (S) and finished with a durable polyethylene (PE) outer jacket.
- In the GYTS armored optical diber cable, single-mode or multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. The steel tape PSP is applied around the core. Which is filled with the filling compound to protect it. And then the cable is completed with a PE sheath.
- The GYTS armored optical fiber cable is available in 2 cores till 288 cores. Typical fiber type use Single Mode G652D. Other type of fiber can make as customer request.

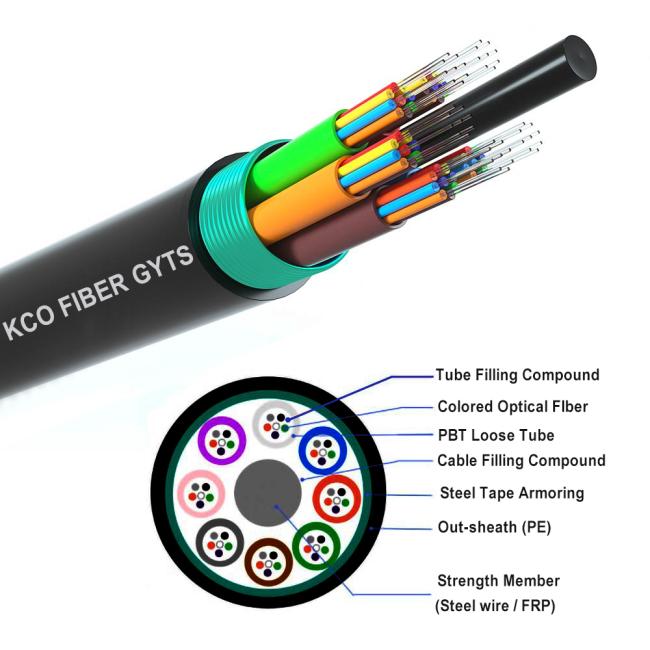

2. GYTS outdoor cable structure:
3. GYTS outdoor cable application:
- Passive fiber optic network
- FTTx system such as FTTH, FTTB, FTTA, FTTO, FTTR, etc
- LAN/WAN system
- CCTV system
- xPON system
4. Standard
- Complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
5. GYTS armored optical fiber cable specification:
| Cable Type | Fiber Count | Cable Diameter MM | Cable Weight KG/KM | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100MM | Bending Radius Static/Dynamic MM | ||
|---|---|---|---|---|---|---|---|---|
| KCO-GYTS2-30 | 2~30 | 8.5 | 65 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS2-36 | 32~36 | 9.4 | 70 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS38-60 | 38~60 | 9.5 | 85 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS62-72 | 62~72 | 10 | 105 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS74-96 | 74~96 | 11.9 | 130 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS98-120 | 98~120 | 14.4 | 190 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS122-144 | 122~144 | 14.6 | 200 | 600 | 1500 | 300 | 1000 | 10D/20D |
| KCO-GYTS146-288 | 146~288 | 16.5 | 245 | 600 | 1500 | 300 | 1000 | 10D/20D |
6. Fiber characteristic
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|---|---|---|---|---|---|
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
7. Fiber and loose tube color
| 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
KCO Fiber OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
