12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B
12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B
Description:
KCO Fiber factory directly sell MPO Patch Cable, MTP Trunk Cable
MPO patch cables / MTP Trunk Cables are high-density fiber optic cables that used for fast data networks. It uses a Multi-fiber Push-On connector to link many fibers at once.
MPO patch cables / MTP trunk cables connect racks together. They use MPO / MTP connectors on both ends of cable.
High Fiber Count: One connector holds 8F, 12F, 16F, 24F, 32F, even 48F.
Space Saver: It reduces cable clutter in crowded server racks.
Fast Speeds: It supports high network speeds like 40G, 100G, and 400G.
12F SM G657A1 MPO-12 3.0mm Optical Fiber Patch Cable MTP-12 Female Fiber Trunk Cable Type B Detail information:
Connector side A: MPO female / MTP female
Connector side B: MPO female / MTP female
Fiber type: Single mode G657A1
Fibe count: 12F
Cable diameter: 3.0mm
Cable out-sheath material: LSZH
Cable color: yellow
Cable length: 1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...
Polarity: Type B (exwork, optional: type A, type C)
IL: Ultra Low Loss (0.35dB)
RL: 55dB
Application
- High density big data center such as bank data center, telecom data center, icloud data center, ...
- AI data center
- Starlink data center
- High speed telecommunication transmission
- Telecommunication networks
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations
- Wide Area Networks(WANs).
- FTTx (FTTH, FTTO, FTTB, FTTA, ...)
- High speed transport data center such as metro, high-speed railway, light railway...
Features
- Long Distance: They can send data over miles instead of feet.
- Laser Light: They use powerful laser light sources instead of LEDs.
- Yellow Jacket: They almost always have a bright yellow outer cable jacket.
- Angled Connectors: They use green APC connectors to stop light from bouncing back.
- Infinite Bandwidth: The glass fiber material has no theoretical limit on data speed.
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available

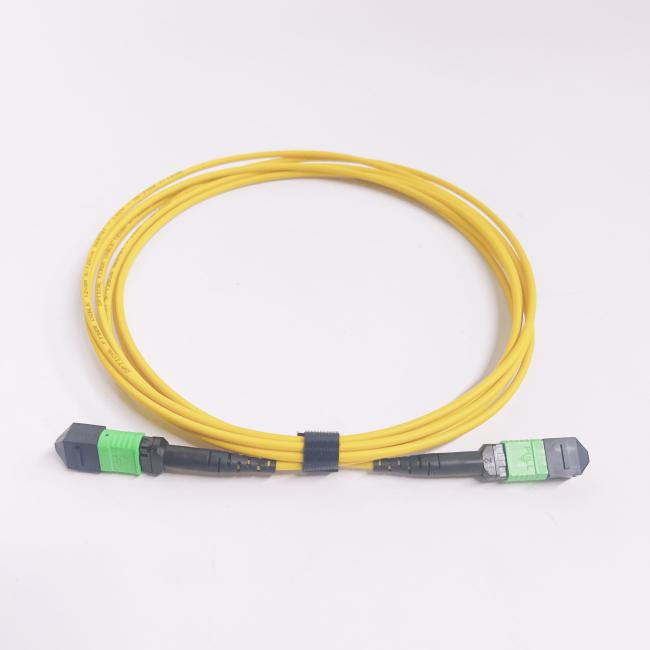

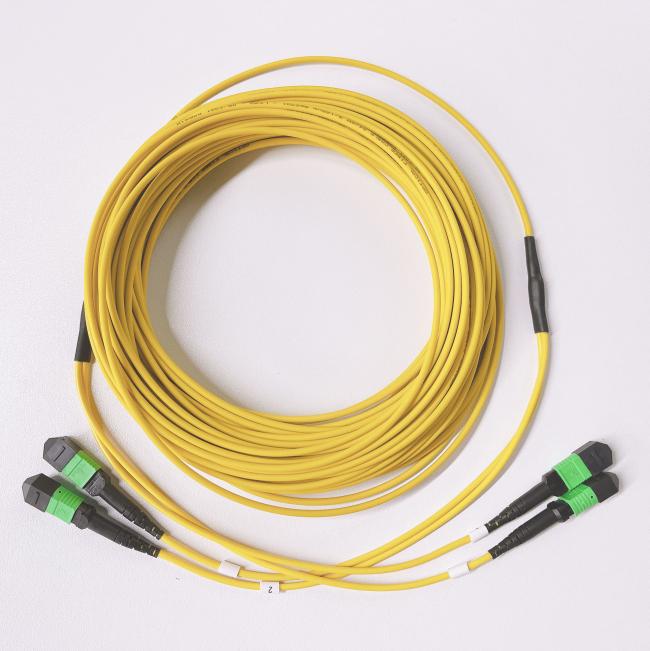

Product photos:
Single MPO MTP connector type
About Single mode fiber SMF G657A1 type:
Single mode G657A1 fiber is a type of single-mode optical fiber designed to bend easily without losing its signal.
It is officially called a "bend-insensitive" fiber because it can handle tight turns around corners and inside small boxes.
Mode Field Diameter (MFD): 8.4 to 9.2 μm
Cladding Diameter: 125.0 ± 0.7 μm.
Wave length: 1310nm / 1550nm
Smaller radius bend:
- 10 mm Radius Bend: Wrapping the fiber one full turn around a 10 mm radius cylinder limits maximum signal loss to 0.75 dB at a light wavelength of 1550 nm. At 1625 nm, the maximum allowed loss is 1.5 dB.
- 15 mm Radius Bend: Wrapping the fiber 10 full turns around a roomier 15 mm radius limits maximum signal loss to 0.25 dB at 1550 nm and 1.0 dB at 1625 nm.
Light Wave Speeds: It transmits best at 1310 nm and 1550 nm light wavelengths.
High-speed transmision function: It easily carries modern data speeds of 100G, 400G, and 800G.
Long transmission distance: upto 120km
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | MPO APC female | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) |
≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) |
|
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||

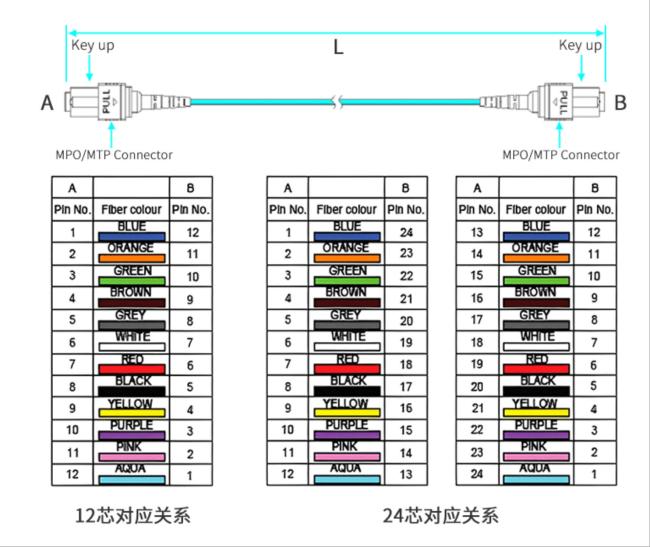

Polarity type B:
