48F 2*24F 4*12F 6*8F SMF G657A MPO/APC Patch Jumpers MTP/APC 48fibers Multi-cores Optical Trunk Cable Key up to Key up
48F SMF G657A MPO/APC Patch Jumpers MTP/APC 48fibers Multi-cores Optical Trunk Cable Key up to Key up
Description:
KCO Fiber factory directly sell MPO/APC Patch Jumpers, MTP/APC Multi-cores Optical Trunk Cable
MPO/APC patch jumpers MTP/APC Trunk Cables are high-density fiber optic cables that used for fast data networks. It uses a Multi-fiber Push-On connector to link many fibers at once.
MTP MPO trunk cables are high-density fiber optic cables that used to transmit multiple optical signals through a single interface.
It consolidates anywhere from 8 fibers to 48 fibers into one compact connector, making it the backbone for high-speed data centers, enterprise networks, and telecom systems.
MTP MPO trunk cables typically have MPO fiber optic connectors (or MTP® fiber optic connectors) on both end sides of patch cable.

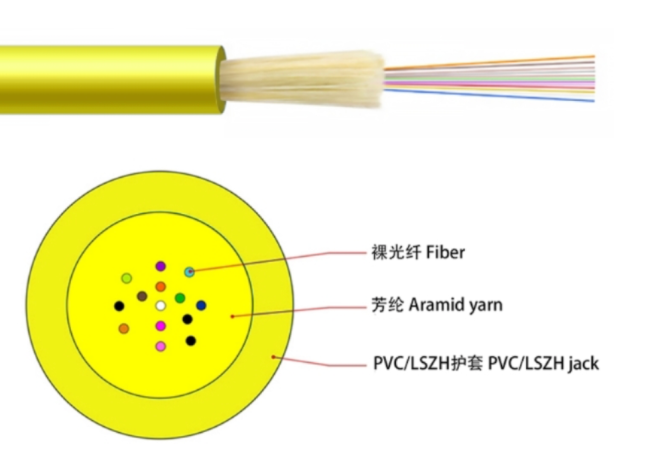

Mini round cable Single mode for MPO MTP trunck cable:
Application
- Starlink data center
- AI data center, AI & Machine Learning Networks
- High-Speed Transceiver Upgrades
- High density big data center such as bank data center, telecom data center, icloud data center, ...
- Passive fiber optic Telecommunication networks
- Local Area Networks(LANs)
- Wide Area Networks(WANs).
- Data Processing networks
- Test Equipment
- Hyperscale & Enterprise Data Centers
- FTTx (FTTH, FTTO, FTTB, FTTA, ...)
- High speed transport data center such as metro, high-speed railway, light railway...
Product Detail
Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C Detail information:
- Connector side A: MPO female / MTP female
- Connector side B: MPO female / MTP female
- Fiber type: Single mode G657A1 / G657A2
- Fibe count: 24F
- Cable diameter: 3.0mm
- Cable out-sheath material: LSZH, PVC, OFNR
- Cable color: Yellow (customized)
- Polarity: Type B (exwork, optional: type A, type C)
- IL: Ultra Low Loss (0.35dB)
- RL: 55dB
- Cable length: customized (1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...)
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available
- Ordering information:
- Option 1: KCO-MPOA24-MPOA24-24F-A1-3.0-LSZH-xxxM
- Option 2: KCO-2MPOA12-2MPOA12-24F-A1-3.0-LSZH-xxxM
- Option 3: KCO-3MPOA8-3MPOA8-24F-A1-3.0-LSZH-xxxM
- Option 4: KCO-MPOA24-2MPOA12-24F-A1-3.0-LSZH-xxxM
- Option 5: KCO-MPOA24-3MPOA8-24F-A1-3.0-LSZH-xxxM
Product photos:

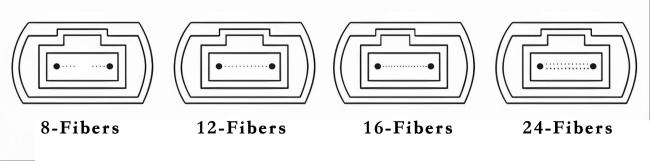

Single MPO MTP connector type
MPO MTP Trunk Cable connect way by adapter / coupler
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | MPO APC female | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) |
≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) |
|
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
MPO-24 MTP-24 Polarity type A B C:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, pallet.
Standard marking.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
