Description:
KCO Fiber factory directly sell MPO-16 Multi-fiber Patch Cable / MTP-16 APC 16fibers Optical Fiber Trunk Cable
- MPO-16 APC trunk cable is a high-density fiber optic cable used to link network panels over long distancesn with high transfer speed.
- MPO-16 APC MTP-16 APC Trunk Cables: use to link links multiple fibers between patch panels.
- They have MPO-16 APC MTP/APC connectors on both ends.
- The MPO/APC connector (MTP-16 APC connector) termination is 8 degree conner.
- It is Elite IL (Ultra Low Loss) or Standard IL.
- The trunk cable connection method have: Method A, Method B, Method C
- MPO-16 APC (MTP-16 APC) trunk cable structure:
Option 1: MPO-16 APC connector + mini cable SM G657A1 + MPO-16 APC connector
Option 2: MTP-16 APC connector + mini cable SM G657A1 + MTP-16 APC connector

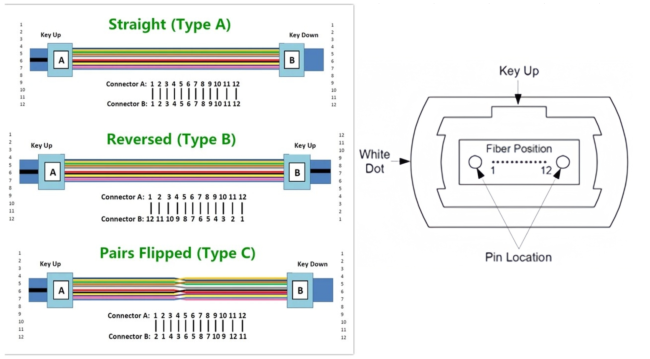

Polarity Method Type A, Type B, Type C
- Type A (Straight-Through): Fiber 1 on one end goes to Fiber 1 on the other, Fiber 2 to Fiber 2, and so on. It uses a "Key-Up to Key-Down" adapter. Because it maintains a straight-through path, it requires an opposite (pair-flipped) method somewhere else in the link (usually at the cassettes) to correctly swap Tx and Rx.
- Type B (Flipped/Reversed): The fiber array is entirely reversed. Fiber 1 at one end connects to Fiber 12 at the other, Fiber 2 to Fiber 11, and so forth. It uses "Key-Up to Key-Up" adapters.
- Type C (Pairwise Swapped): The fibers are swapped in adjacent pairs. Fiber 1 connects to Fiber 2, Fiber 3 to Fiber 4, etc. It uses "Key-Up to Key-Down" adapters. This type is primarily used for converting MPO to duplex LC systems.
Product Detail
Single Mode Ultra Low Loss MPO-16 Multi-fiber Patch Cable MTP-16 APC 16fibers Optical Fiber Trunk Cable Polarity A B C
- Connector side A: MPO-16 / MTP-16
- Connector side B: MPO-16 / MTP-16
- Fiber type: Single mode G657A1 / G657A2
- Fibe count: 16F
- Cable diameter: 3.0mm
- Cable out-sheath material: LSZH, PVC, OFNR
- Cable color: Yellow (customized)
- Polarity: customized
- IL: Ultra Low Loss (0.35dB)
- RL: 55dB
- Cable length: customized
- 100% factory tested before shipment.
- Test report come with each piece.
- OEM service: available
- Packing: 1pc/bag
Application
- Data Processing networks
- AI network
- Icloud data center
- High-Speed Transceiver Upgrades
- Passive fiber optic Telecommunication networks (PON)
- WAN / LAN
- Test Equipment
- FTTx (FTTH, FTTO, FTTB, FTTA, ...)
- High speed transport data center such as metro, high-speed railway, light railway...

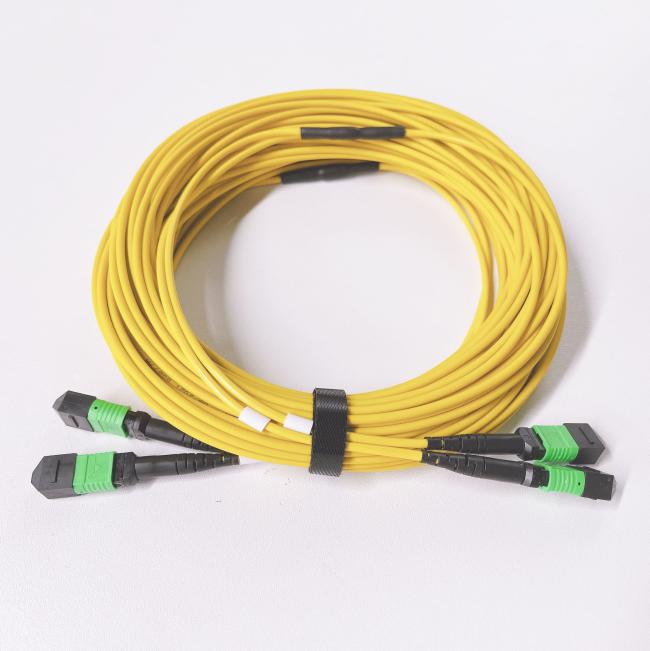

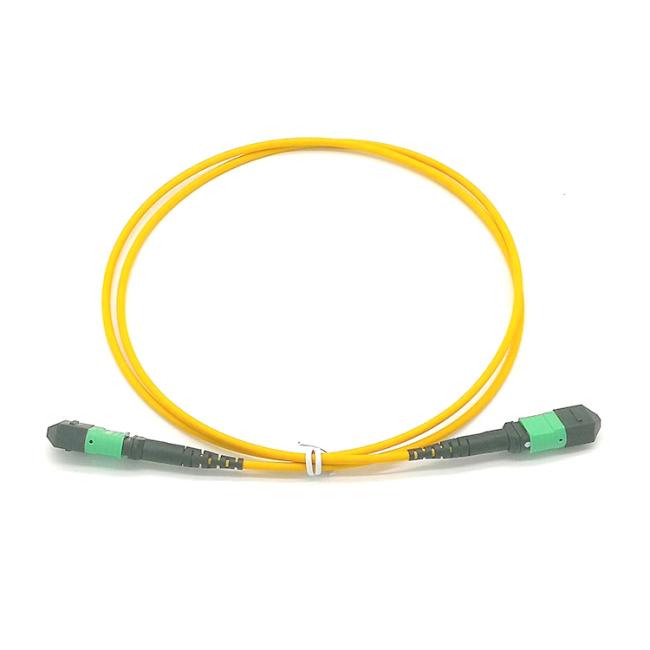

Product photos:
Specification:
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.657A) | |
| Jacket Materials | LSZH/OFNR/PVC | |

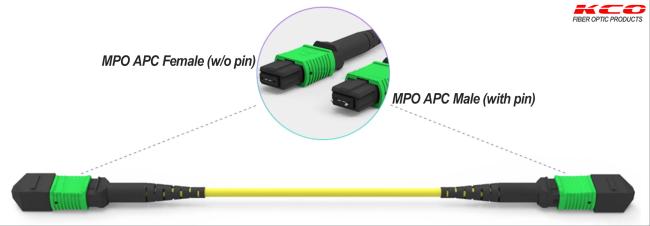

| Connector Type | MPO APC female / male | |
| Ferrule Materials | Glass-filled polyme | |
| Testing Wavelengths | 1310±30/1550±30nm | |
| Insertion Losss IL (dB) | ≤ 0.35dB (ultra low loss) ≤ 0.65dB (standard loss) | |
| Return Loss RL (dB) | ≥ 55dB(APC) | |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Trunk cable | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
Packing
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

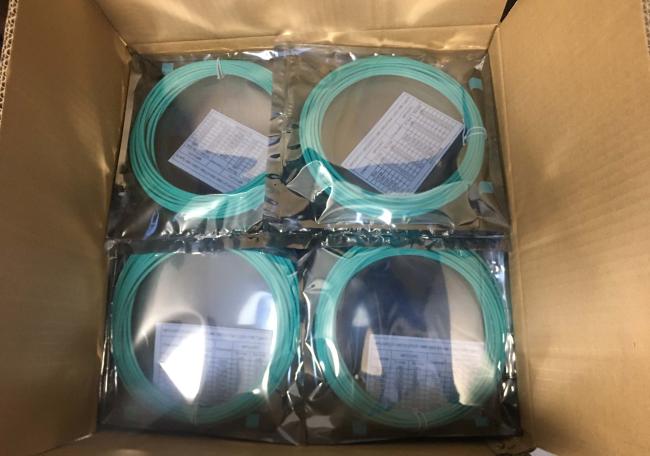

Packing:
