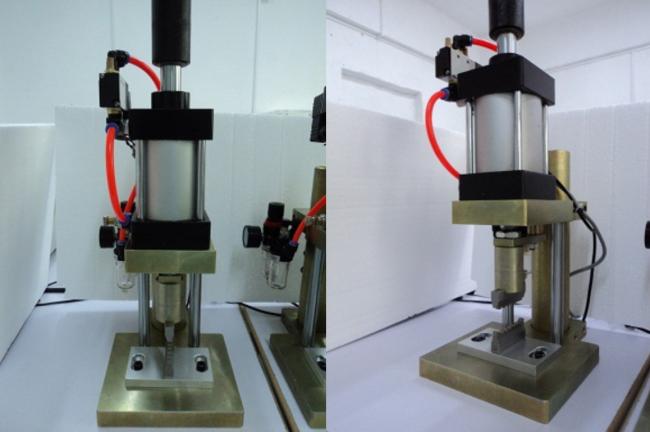

• Used in the connector assembly and ceramic insert core metal tail pressure welding assembly, and other products
• Use pneumatic acuity 0.5 Mpa, the biggest pressure for 200 KGF
• By changing the pressure welding tooling, can adapt to different parts assembly and the press
• The pressure is adjustable, adapt to different products
• The operation is simple, reliable, high processing efficiency
• Stable quality
• Preventive maintenance, easy and convenient
• Can provide the connector crimping mold, adapter and metal tail crimping mold
• Can be made according to customer needs, different pressure welding tooling

- Surrounding Temperature: -40°C~85°C

- Relative Humidity: 15%~85%

- Vibration: 1.0g 5~100Hz 45min

- Acceptable impact: Fall from 50mm high

- 1.2.1 Running surroundings

- Temperature: 10°C~40°C

- Relative Humidity: 15%~85%

- Sound: Vacancy load≤50dB

- Vibration:

A) Running Status: 0.25g 5~100Hz 10min

B) Stop Status: 0.50g 5~100Hz 10min

- Power: 220~230VAC 50Hz/60Hz

- Voltage: 110W

Running speed: 20~220RPM

Specifications:

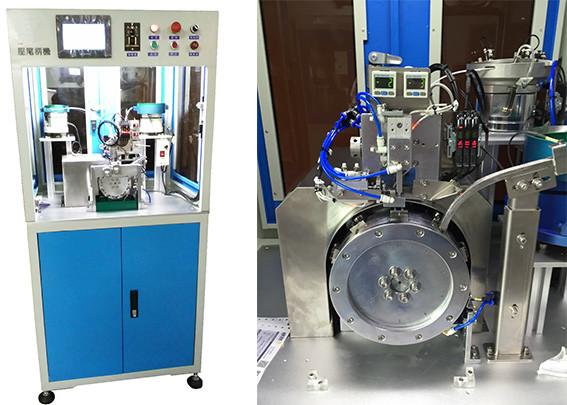

• Fiber optic and tail handle of the vibration plate automatic feeding.
• The wheel pressure welding method.
• The concentricity and vertical degree of pressure to ensure the plus or minus 0.02 mm.
• Pressure welding speed is about 1500 / hour.
• Pressure to yield 99.99%.
• High pressure plus or minus 0.02 mm.
