MTP MPO Fiber Optic Breakout Cable
1U 19' patch panel MTP MPO fiber breakout cable full loaded with MPO-LC, MPO-SC
Quick informations:
- Upload with 4 pcs of cassettes
- Patch panel size: 485x300x1U(mm)
- Connector 1: MPO
- Connector 2: LC, FC, ST, SC
- Adapter type: LC, SC, ST, FC
- Cable fiber numbers: 4~24 fibers
- Cable length: 0.5m, 1.0m, 1.5m or customized
- Capacity: 24 cores, 48 cores, 96 cores
Descriptions:
- Typical MPO fiber optic patch panel is with 1U 19’ standard size, inside the patch panel, it can be splice trays with 1xN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel.
- The 1U MPO fiber patch panel can be with max 48 cores or 96 cores output optical strand, the output connectors can be SC/FC/ST/LC.
Features:
- Integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency.
- Light weight, easy to install.
- Easy for installation and operation .
- Available for the installation of FC/SC/ST/LC adaptor.
- Mount to standard EIA 19'' rack rails.
- Provides a complete system solution for connectivity.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

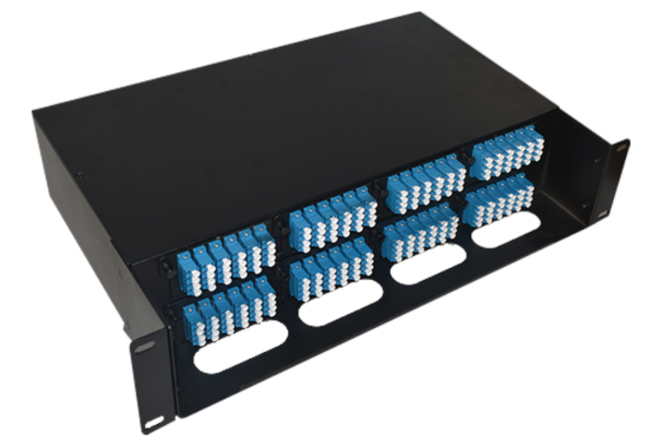

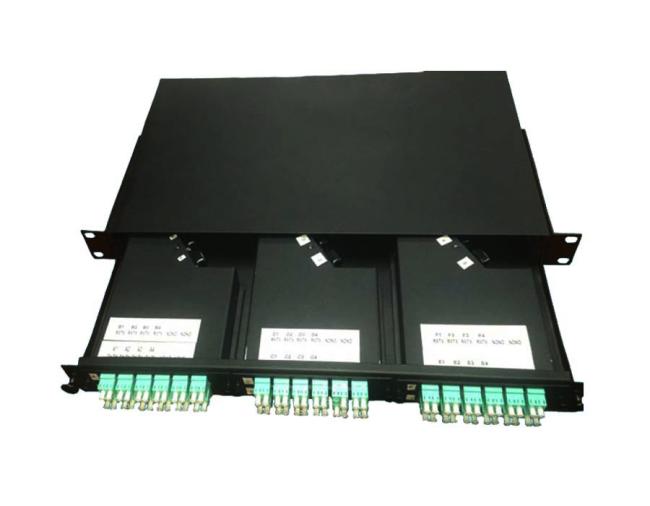

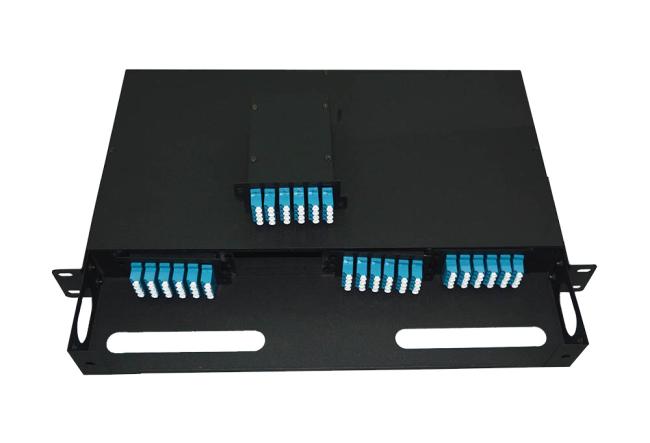

Product picutures:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull test | 1000 times＜0.5 dB | |||||
| Interchange | ＜0.5 dB | |||||
| Anti-tensile force | 15kgf | |||||
Packing ways:
According to export standard packing.
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
