Corrosion Resistance 6 In 8 Out Fiber Optic Splice Enclosures KCO-Inline-68A
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
5~14 working days
Brand:
KCO, Kocent Optec Limited
Product Description
Large Capacity 6 In 8 Out KCO-Inline-68A 96 Cores Optics Fiber Splice Joint Box
Quick detail about horizontal fiber optic splice closure:
Name: Big Capacity Horizontal / Inline type fiber optic splicing joint box
Part number: KCO-Inline-68A
Size: 460*200*120mm
Weight: about 3.0kg
Cable entry port: 6 ports
Cable out port: 8 ports
Capacity of fibers: 96 cores
Splice tray number: max. 4 trays
Material: ABS/ PC/PPR/PP Plastic
Packing: 10pcs/ carton box
Cable Diameter: 7.0-22.0mm
Working temperature: -40℃ to 65℃
Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
Features:
- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting
- Great water-proof function.

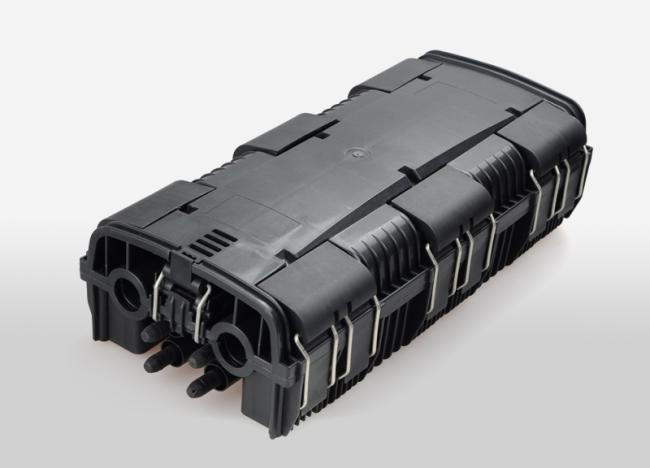

Product pictures:

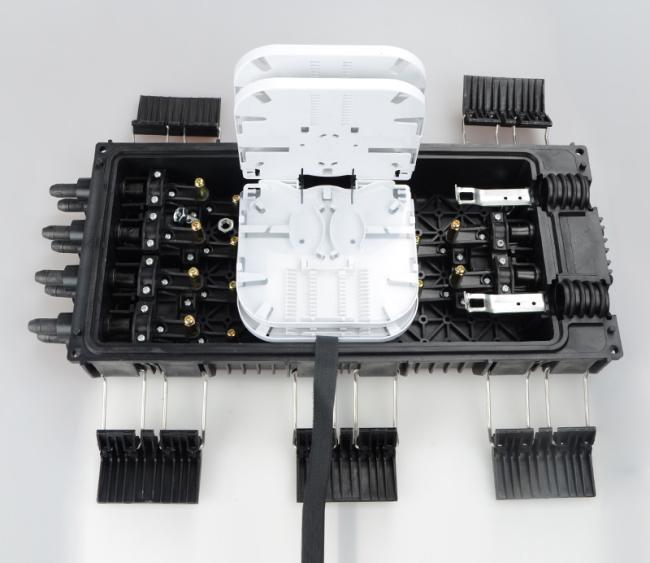

Main parts:
| No. | Name | Quantity | Usage | Remark |
|---|---|---|---|---|
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
|---|---|---|---|---|
| 1 | Heat shrinkable tube | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
