Buried 48 Cores 4 Ports Fibre Optic Splice Enclosure Box PC Material KCO-H-2-2-07
Buried 48 Cores 4 Ports Fibre Optic Splice Enclosure Box PC Material KCO-H-2-2-07
Quick detail about horizontal fiber optic splice closure:
Name:
Inline/ Horizontal Type Fiber Optic Enclosure Box
Part number:
KCO-H-2-2-07
Size:
345*140*80mm
Weight:
about 1.1kg
Cable entry port:
4 ports
Capacity of fibers:
48 cores
Splice tray number:
max. 4 trays
Material:
ABS / PC / PPR / PP Plastic
Cable Diameter:
7.0-22.0mm
Working temperature:
-40℃ to 65℃
Operation Conditions:
- Work Temperature: -45℃∽+55℃
- Atmospheric pressure: 70~106 KPa
Photoelectric property:
- Isolation resistance between the metal part and the ground ＞20000MΩ(DC500V)
- withstand voltage between the metal part and the ground ≥15KV(DC)/1min (no puncture,no flashover)
- life time＞25 years
Descriptions:
The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.
All property indexes are in accordance with National YD/T814-1996 Standard.
The case body is made from imported high-intensity engineering plastics (ABS) and formed the shape with mould plastics under high pressure. It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.
The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape. - Reliable sealing capability. It can be re-opened and easy to maintain.
Applications:
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
Features:
- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting
- Great water-proof function.

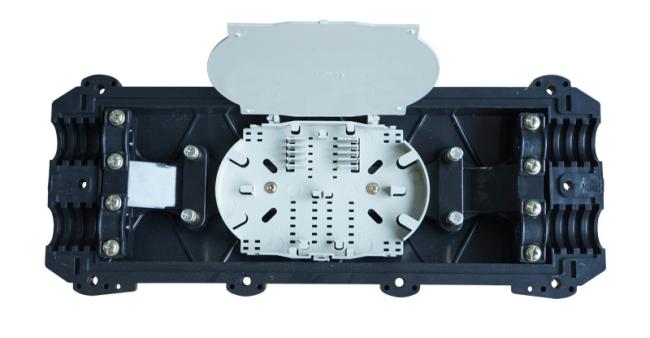

Product pictures:
Main parts:
| No. | Name | Quantity | Usage | Remark |
|---|---|---|---|---|
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
|---|---|---|---|---|
| 1 | Heat shrinkable tube | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
