Fiber Optical Connector Adapters LC / UPC with IEC , Telcordia GR 326 Standard

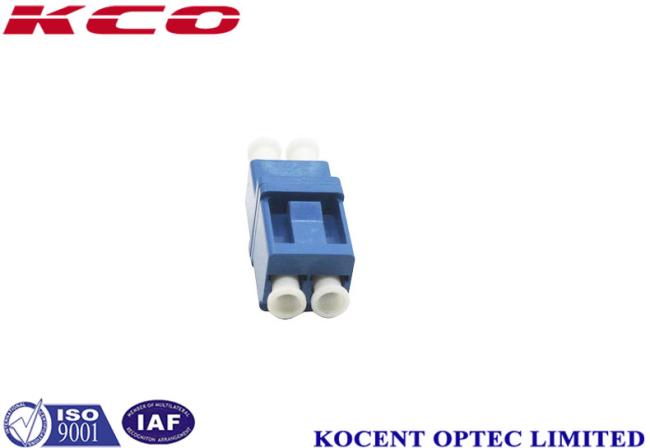

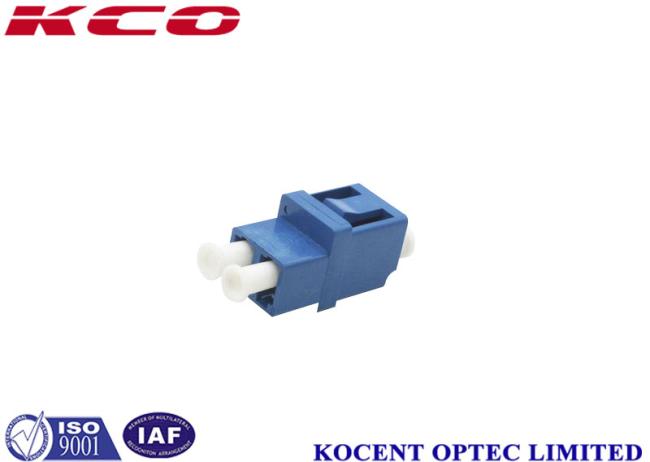

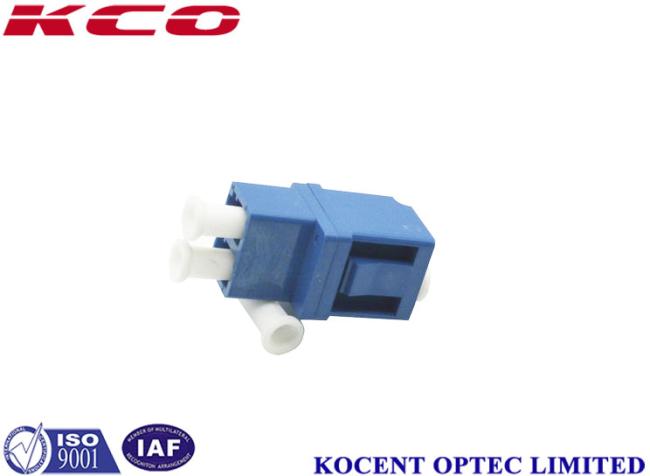

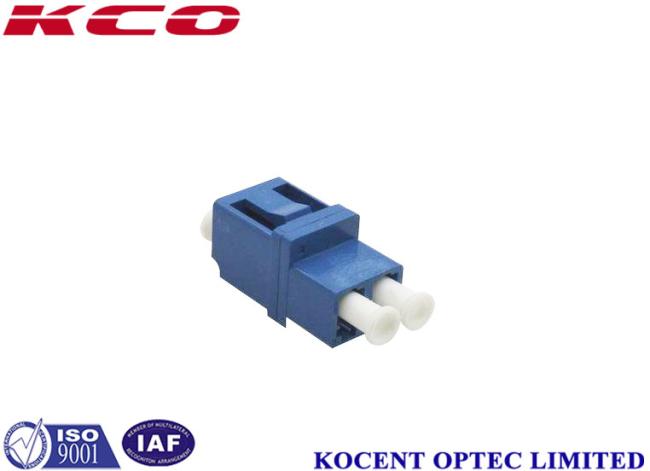

Blue Fiber Optic Adapter LC/UPC Without Flange, Without Dust Cap, Duplex
Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC style fiber optic adapters for both multimode and single-mode fiber applications.
LC/UPC fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.
- Test equipment
- Telecommunication networks
- Industrial, Medical &
- LANS, MANS, WANS
- Fiber to the home, FTTX
Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
- Compact Design
- High Precision Alignment
- Telcordia, ANSI, TIA/EIA, NTT and JIS Compliance
- Zirconia Sleeve ,Compact design
- Low insertional loss, High return loss
- Comply with IEC, Telcordia GR 326 and JIS standard
| Parameter | Specifications | |
|---|---|---|
| Mating Connector Type | SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc | |
| Fiber Type of Connector | Single Mode | Multimode |
| Adapter Color | Blue, green, metallic | Beige, Metallic |
| Testing Wavelength | 1310nm,1550nm | 850nm,1300nm |
| Insert Loss | Typical≤0.15dB, max≤0.2dB | Typical≤0.15dB, max≤0.2dB |
| Repeatability | ≤0.10dB | |
| Exchangeability | ≤0.20dB | |
| Durability | 1000Mating, max≤0.20dB | |
| Housing Material | Plastic or metal | |
| Operating Temperature | -20°C～+70°C | |
| Storage Temperature | -40°C～+85°C | |
| Alignment Sleeve | Ceramic (ZrO2) or customized | |
| Channel Number | Simplex, duplex, quad . | |
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
|---|---|---|---|
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
