Army Field Tight Buffered Fiber Optic Cable Non Metallic Sm Mm Om3 Om4
Army Field Fiber Optic Cable Non Metallic SM MM OM3 OM4 6.0mm TPU sheath
4fo 8fo 12fo 24fo
Common:

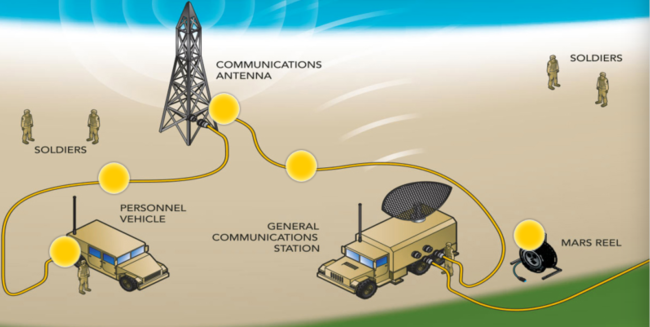

- Today’s personnel face a multitude of challenges due to the ever changing operation theater.
- To improve safety and maximize situational awareness, forces continue to upgrade communications and monitoring infrastructure.
- Investing in fiber optic systems as a cost-effective network alternative provides essential communications solutions, including greater bandwidth for real-time voice, data and video applications, all in easily deployable platform.
- It is equally as critical that these communication systems yield a reliable network between the theater and command control center.
- approved and certified fiber optic cables and harsh environment connectors offer the reliability and performance needed when communications are vital for the success of the mission.
- Designed for uncompromised dependability in the harshest of conditions, these -grade physical plant fiber cables and connectivity products have been tested to the most extreme standards and are "real world" battlefield proven.
Characteristics:
- High strength aramid yarn strength member ensures high tensile strength and long term stability in transmission.
- Small outer diameter, light weight.
- Flame-retardant, easy to strip, low attenuation, highly soft.
- Direct splicing between tight buffered cables and need no tie-in box or pigtail.
- Suitable for installation,operation and convenient for maintenance.
Temperature Range:
-20°C~+70°C
Technology Parameters:

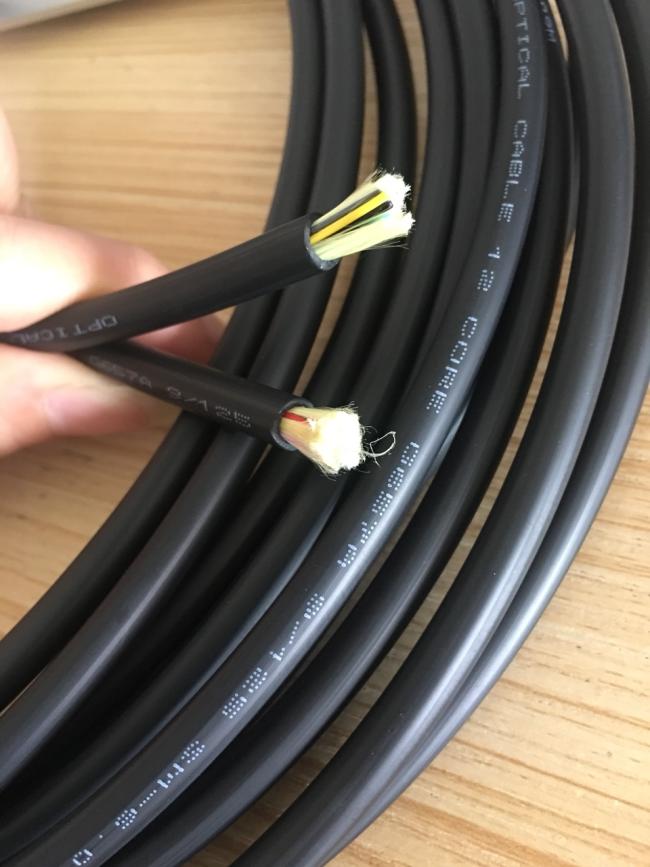

Product Photos:
Fiber optic cable Technical Parameters:
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
| 24 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 36 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 42 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 48 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 60 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 72 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 96 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 144 | 15.5 | 295.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
