Horizontal Fiber Optic Splice Closure PC Material IP65 Aerial Joint Enclosure Box KCO-H2295
KCO-V2295 Horizontal Fiber Optic Splice Closure PC Material IP65 Aerial Joint Enclosure Box
Quick detail:
- Name: Inline/ Horizontal Type Fiber Optic Enclosure Box
- Part number: KCO-H2295
- Size: 460*170*95mm
- Weight: about 1.5kg
- Cable entry port: 4 ports
- Capacity of fibers: 96 cores
- Splice tray number: max. 4 trays
- Material: PC
- Cable Diameter: 7.0-22.0mm
- Working temperature: -40℃ to 65℃
- Packing: 10pcs/ carton box
Operation Conditions:
- Work Temperature: -45℃∽+55℃
- Atmospheric pressure: 70~106 KPa
Applications:
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
Features:
- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting
- Great water-proof function.

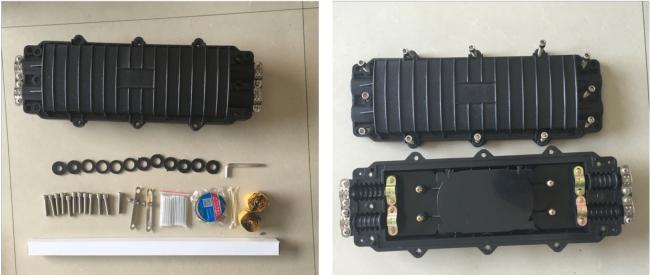

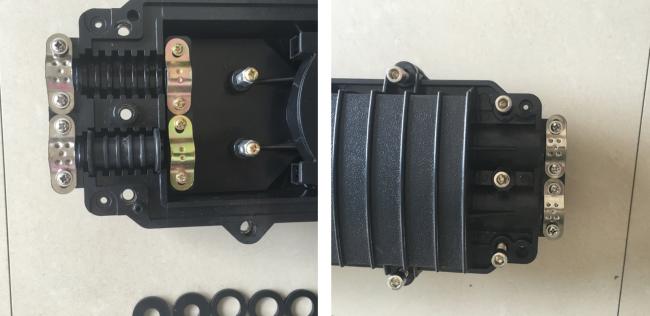

Product pictures:
Main parts:
| No. | Name | Quantity | Usage | Remark |
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable tube | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
