144 Cores Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
KCO-H22120 FTTH 144 Cores Fiber Optic Splice Closure Joint Box PC Material IP65
Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution. It is one of commonly used equipment of user access point.
Used for the outdoor connection between optical distribution cable and optical inroom cable. Available for aerial, duct, direct buried application.
Horizontal (inline) fiber optic splice closures are made of excellent engineering plastics. We supply different ports types, fittings and different fiber optic core numbers for horizontal fiber optic splice closures.
The Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Advantage:
- Waterproof /Anti oxidation
- Flame retardant/Earthquake resistant
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability.
- Precise connector
Operating/Storage Temperature: -40 to +70°C
Quick detail:

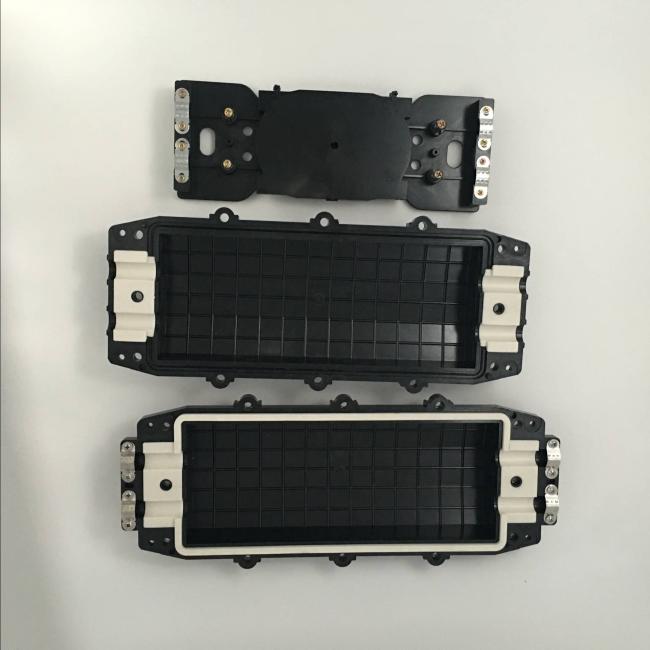

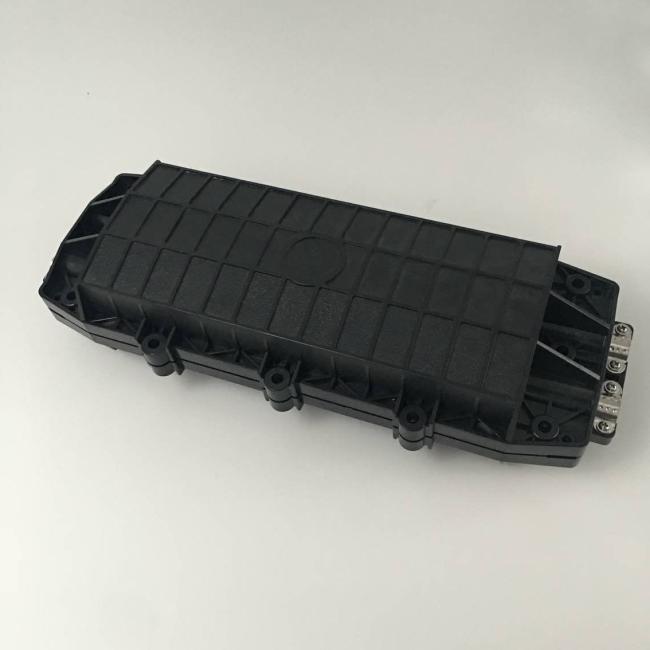

Product pictures:
Main parts:
| No. | Name | Quantity | Usage | Remark |
|---|---|---|---|---|
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
|---|---|---|---|---|
| 1 | Heat shrinkable tube | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
