3 In 3 Out 6 Ports Fiber Optic Joint Box144 Fibers IP 65 Outdoor FTTA KCO-H33120
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
5~14 working days
Brand:
KCO, Kocent Optec Limited
Product Description
KCO-H33120 3in 3out 6ports Fiber Optics Splice Enclosure Box 144 Fibers IP 65 Outdoor
Description:
- Made of high strength engineering ABS, PC, ABS or PC composite material.
- Up-down bisection GPJ-A is an arc, horizontal type.
- 2, 4, 6, 8 pcs inlet/outlet
- 2, 4, 6, 8 pcs trays
- 12~288 cores total capacity
- Slide-in-lock design, over 90° opening angle tray
- Dimension: 400(L)x185(W)x90(H) mm
- Elastic integrated seal ensure tightening fit
Features:
- Innovative insert plates and fixing bolts, used to fix and seal FOSC, simple installation.
- The FOSC is suitable for protecting fiber cable splices in straight-through and branching.
- Good capability of corrosion resistance, anti-aging, anti-UV, fire resistant, impact resistant.
- prevent condensation inside box, waterproof, quakeproof, while protecting splice closure during pulling.
- It ensures long-term reliability and usage under ambient temperature from -40~+65 °C.
Quick detail:
- Name: Inline/ Horizontal Type Fiber Optic Enclosure Box
- Part number: KCO-H33120
- Size: 420*200*120mm
- Weight: about 2.2kg
- Cable entry port: 3 inports and 3 outports, 6 ports
- Capacity of fibers: 144 cores
- Splice tray number: max. 6 trays
- Material: PC
- Cable Diameter: 7.0-22.0mm
- Working temperature: -40℃ to 65℃
- Packing: 10pcs/ carton box

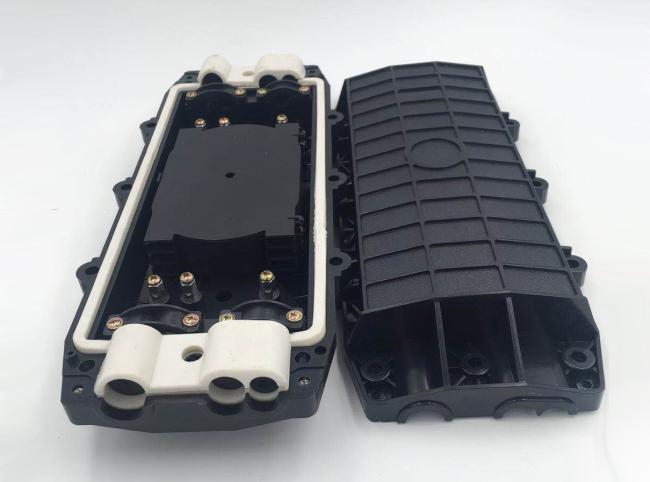

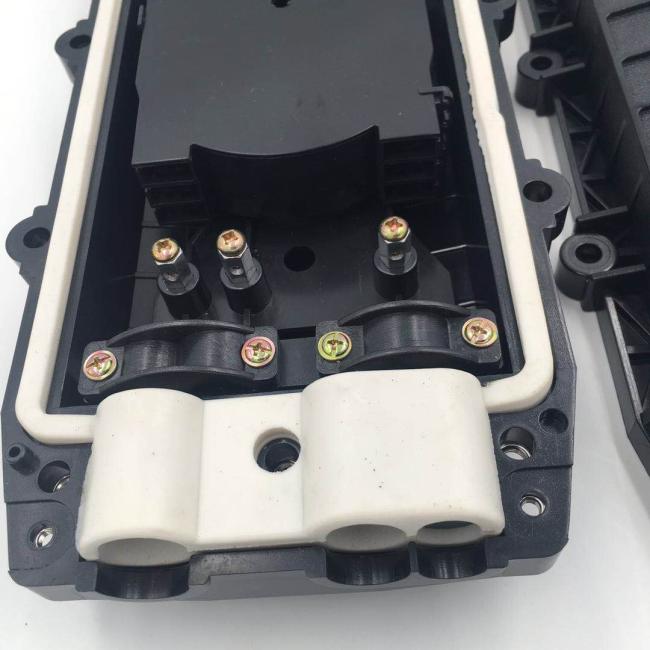

Product pictures:
Main parts:
| No. | Name | Quantity | Usage | Remark |
| 1 | Crust | 1 set | Protecting fiber cable splices in whole | |
| 2 | Fusion splice tray | Max.4 tray | Fix fiber, Protect heat-shrinkable tube Sleeve | |
| 3 | Foundation | 1 set | Fix cable,reinforced core and tray | |
| 4 | Seal fitting | 1 set | Air-proof between cover and bottom | |
| 5 | Port plug | 4 pieces | Sealing empty ports | |
| 6 | Valve | 1 set | Pressure measurement,inspection sealing | Configure by user |
Accessories list:
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable tube | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 4 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 5 | Hanging hook | 1 set | For aerial use | |
| 6 | Label tape | 1 piece | Sign fiber | |
| 7 | Spanner | 1 piece | Install bolts of shell | |
| 8 | Desiccant | 1 bag | Desiccating air. |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
