FC Field Fiber Optic Connector Assembly 1260~1650nm Wave Length For FTTH Drop Cable
Pre-embedded FC Field Assembly Optical Fibre Fast Connector For FTTH Drop Cable
Descriptions:
- Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector”, "Mechanical Field-Mountable Fiber Optic Connector" or “ Fast Connector ”) is an easy-to-install device.
- No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.
- FC fast connectors make fiber terminations quick, easy and reliable.
- These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
- Our fast connector can greatly reduce the assembly and set up time.
- The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
- 30 seconds installation time
- Can be used 10 times
- Low insertion loss
- Compatible with standard SC connectors;
- Field installable, cost effective, user friendly;
- UPC, APC polishing optional;
- No electricity required;
- FTTH cable, fiber optic cable optional;
- Reliable durable and superior optical performance.
Application:
- ONU,
- CATV,
- Metro,
- Test equipment,
- Premise installation,
- Active device termination,
- Data processing networks,
- Telecommunication networks,
- Local Area Networks (LANs),
- Wide Area Networks(WANs),
Quick detail:
- Name: Single Mode FC/APC Fiber Optic Fast Connector
- P/N: KCO-FAST-FCA-3.0
- Connector: FC
- Ferrule end-face: APC
- Ferrule size: 2.5mm
- Structure: Pre-polished, Un-polished
- Fiber: G652D G657A G657B3
- Cable diameter: 2.0/3.0mm indoor fiber optic cable, FTTH drop indoor/outdoor cable
Specification:
| ITEM | Technical Parameters |
| Applicable for | Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >10 N |
| Tensile strength | >50 N |
| Using temperature | -40~+75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |

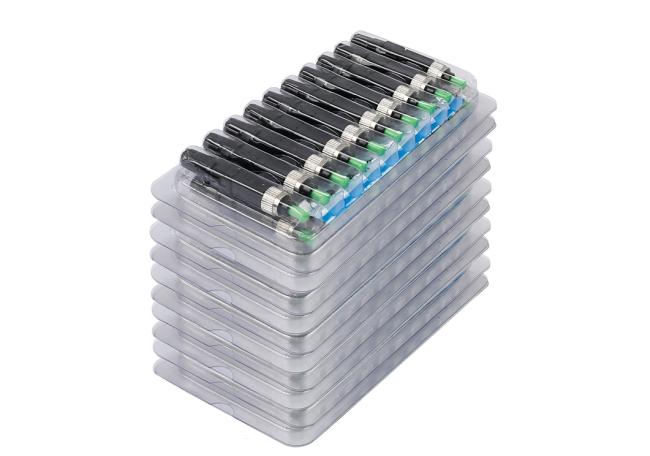

Products picture:
Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 7 days
- Testing & Packaging Time: 2 days
- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
Factory photo:

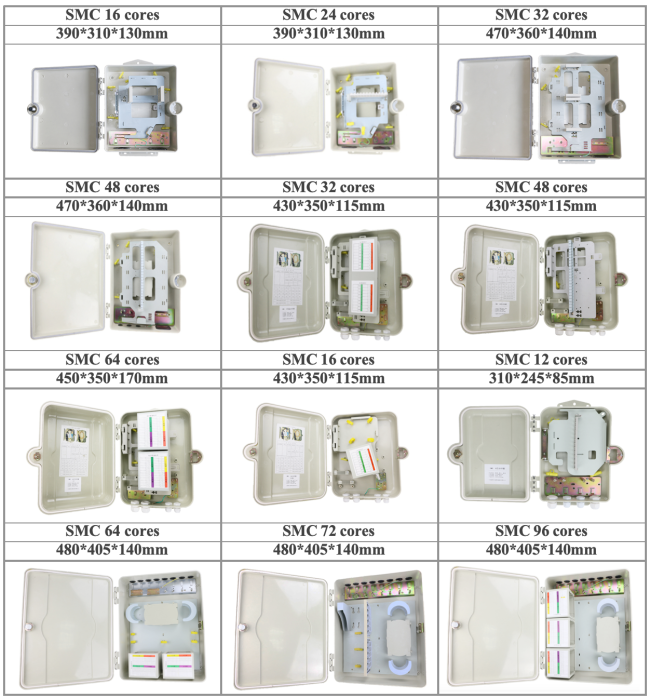

Relation Products:
OEM/ODM Service:
- Logo printing on label: free.
- Logo printing on packing carton box: contact with our sales team to get more information.
- Logo lettering on goods: conntact with our sales team to get more information.
- OEM service: yes.
- ODM service: yes.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden/plastic pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export air port: Shenzhen, Guangzhou, Hongkong, Beijing, Shanghai, Hangzhou.
