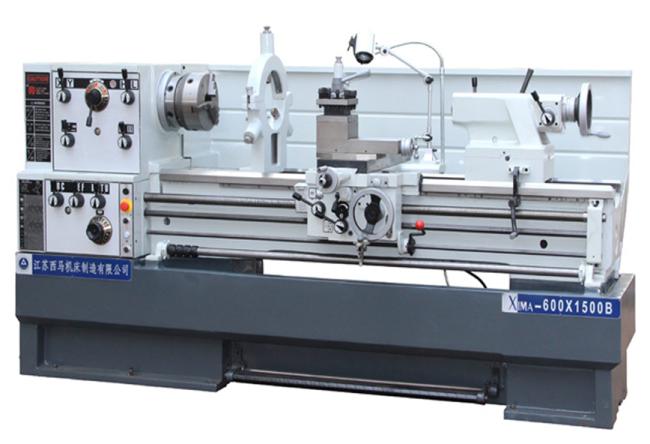

High precision lathe C6132A/40A.C6241/C6246,C6263B/C6260B(cast iron,all color optional)
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
FLYDRAGON
Product Description
|
HIGH PRECISION &HEAVY DUTY INDUSTRIAL LATHE |
||||
| Model | C6132A | C6232A | C6140A | C6240A |
| Center height | 180mm | 180mm | 202mm | 202mm |
| Max.swing over bed | Φ360mm | Φ360mm | Φ400mm | Φ400mm |
| Max.swing over carriage | Φ200mm | Φ200mm | Φ245mm | Φ245mm |
| Max. swing over gap | 540mm | 585mm | ||
| Effective gap length | 200mm | 200mm | ||
| Center distance | 750mm/1000mm | |||
| Width of bed | 320mm | |||
| Spindle bore | Φ46mm/52mm | |||
| Taper of spindle bore | M.T.#6 | |||
| Range of spindle speed | 25-1600rpm | |||
| Cross | 240mm | |||
| Compound | 140mm | |||
| Max. travel | 130mm | |||
| Taper of inside | M.T.#4 | |||
| The power of main motor | 3/4.5kw | |||
| Range of metric number | 30kinds 0.4-20mm | |||
| Inch | 35kinds 80- | |||
| Diametric pitch | 30kinds 160-3 D.P. | |||
| Module | 25kinds 0.25-10mm | |||
| Feed change | 138 steps | |||
| Long feed per spindle rev | 0.04-2.15mm | |||
| Cross feed per spindle rev | 0.02-1.08mm | |||
| N.W/G.W | 1300kg/1400kg | |||
| Packing size | 2290/2575mm×1100mm×1465mm | |||
Product Description
CE High Precision Gap Bed Lathe Machine (C6246 C6241):
1.Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity.
2.The spindle system is high in rigidity and accuracy.
3.The design of the main drive is optimized and the gears in the headstock are precision ground.The noise of the machine is low.
4.There is no need for change gears.
5.The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.
6.An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and eliable.A pedal braking device providing quick and effective stop while operating.
1.Precision ground and supersonic frequency hardened bed ways is designed in double wall structure, giving superb rigidity.
2.The spindle system is high in rigidity and accuracy.
3.The design of the main drive is optimized and the gears in the headstock are precision ground.The noise of the machine is low.
4.There is no need for change gears.
5.The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.
6.An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and eliable.A pedal braking device providing quick and effective stop while operating.
| C6241/C6246 | |||||||||
| Specification | Model | ||||||||
| C6241×1000 | C6241×1500 | C6241×2000 | C6246×1000 | C6246×1500 | C6246×2000 | ||||
| Capacity | |||||||||
| Swing over bed | 410mm(16") | 460mm(18") | |||||||
| Swing over cross slide | 220mm(8-13/16") | 270mm(10-3/4") | |||||||
| Swing in gap | 640mm(25-1/8") | 690mm(27-1/8") | |||||||
| Distance between centers | 1000mm(40") | 1500mm(60") | 2000mm(80") | 1000mm(40") | 1500mm(60") | 2000mm(80") | |||
| Valid length of gap | 165mm(6-1/2") | ||||||||
| Width of bed | 300mm(11-13/16") | ||||||||
| Headstock | |||||||||
| Spindle nose | D1-6 | ||||||||
| Spindle bore | 58mm(2-1/4") | ||||||||
| Taper of spindle bore | No.6 Morse | ||||||||
| Range of spindle speed | 12 changes, 25~2000r/min | ||||||||
| Feeds and threads | |||||||||
| Max.travel of top slide | 128mm(5") | ||||||||
| Max.travel of cross slide | 285mm(11-1/4") | ||||||||
| Max.section of tool | 25×25mm(1"×1") | ||||||||
| Pitch thread of leadscrew | 6mm or 4T.P.I. | ||||||||
| Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | ||||||||
| Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | ||||||||
| Metric threads range | 41 kinds, 0.1~14mm | ||||||||
| Inch threads range | 60 kinds, 2~112T.P.I. | ||||||||
| Diametrical pitches range | 50 kinds, 4~112DP | ||||||||
| Module pitches range | 34 kinds, 0.1~7MP | ||||||||
| Tailstock | |||||||||
| Dia. of tailstock sleeve | 60mm(2-5/16") | ||||||||
| Travel of tailstock sleeve | 128mm(5") | ||||||||
| Taper of tailstock sleeve | No.4 Morse | ||||||||
| Motor | |||||||||
| Power of main motor | 5.5kW(7.5HP) 3PH | ||||||||
| Power of coolant pump | 0.1kW(1/8HP) 3PH | ||||||||
| Dimension and weight | |||||||||
| Overall dimension (L×W×H) cm |
220×108×134 | 275×108×134 | 325×108×134 | 220×108×137 | 275×108×137 | 325×108×137 | |||
| Packing size(L×W×H) cm | 225×112×162 | 280×112×156 | 330×113×156 | 225×112×162 | 280×112×156 | 330×113×156 | |||
| Net weight | 1670kg | 1920kg | 2070kg | 1720kg | 1970kg | 2120kg | |||
| Gross weight | 1980kg | 2265kg | 2450kg | 2045kg | 2330kg | 2515kg | |||
| Standard accessories | |||||||||
| 3 Jaw chucka and adapter | Wrenches | ||||||||
| Sleeve and center | Oil gun | ||||||||
|
Special accessories
|
|||||||||
- Configuration specification
-
SERIES Model C6253B×1000 C6253B×1500 C6253B×2000 C6260B×1000 C6260B×1500 C6260B×2000 Swing over bed Φ530mm(20 7/8") Φ600mm(23 10/16") Swing over cross slide Φ329mm(12 31/32") Φ399mm(15 3/4") Swing in gap(D×W) 765mm×218mm(D1-8)/765mm×240mm(A1-8) 835mm×218mm(D1-8)/835mm×240mm(A1-8) Height of center 265mm(10 7/16") 300mm(11 13/16") Distance between centers 1015mm/1515mm/2015mm 1015mm/1515mm/2015mm Width of bed 400mm(15 3/4") 400mm(15 3/4") Max. section of cutting tool 25mm×25mm(1"×1") 25mm×25mm(1"×1") Total travel of cross slide 320mm(12 5/8") 358mm(14 1/8") Total travel of top slide 200mm(7 7/8") 200mm(7 7/8") Spindle bore Φ82mm(3 1/4") Φ82mm(3 1/4") Spindle nose D1-8 or A1-8 D1-8 or A1-8 Spindle morse taper in nose,in sleeve ME90/M.T.#5 ME90/M.T.#5 Spindle speeds number 12 12 Spindle speeds range 20-1600 R.P.M 20-1600 R.P.M Leadscrew diameter&thread 40mm(1 9/16")×4 T.P.I or pitch 6mm 40mm(1 9/16")×4 T.P.I or pitch 6mm Threads imperial pithches 4-112(50 NOS) 4-112(50 NOS) Threads metric pithches 0.25-7(24 NOS) 0.25-7(24 NOS) Diametral pitches DP/DP 4-112(50 NOS) 4-112(50 NOS) Diametral pitches MP/MP 0.25-14(34 NOS) 0.25-14(34 NOS) Longitudinal feeds(imperial/metric) 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) 0.0011"-0.0316"(50Nos)/0.01mm-0.286mm(50Nos) Cross feeds(imperial/metric) 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) 0.00024"-0.0068"(50Nos)/0.01mm-0.286mm(50Nos) Total travel of tailstock quill 180mm(7 5/64") 180mm(7 5/64") Tails stock quill Φ75mm(2 61/64") Φ75mm(2 61/64") Taper tailstock quill M.T.#5 M.T.#5 Spindle drive motor 10.0HP 10.0HP Coolant pump motor 1/8HP(0.1KW) 1/8HP(0.1KW) Machine dimension 94"×38"×52"/114"×38"×52"/134"×38"×52" 94"×38"×52"/114"×38"×52"/134"×38"×52" Packing dimension 98"×43"×71"/118"×43"×71"/138"×43"×71" 98"×43"×71"/118"×43"×71"/138"×43"×71" N.W 2490KG/2750KG/3010KG 2560KG/2820KG/3080KG G.W 2790KG/3090KG/3400KG 2880KG/3180KG/3490KG
