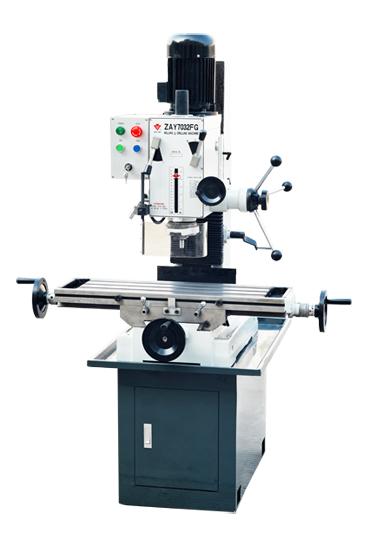

Drilling & Milling Machine ZAY7045FG/1,ZAY7045FG.ZAY7045V(cast iron,all colour optional
driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
| ITEM | ZAY7025FG | ZAY7032FG | ZAY7040FG | ZAY7045FG |
| Max Face mill capacity | 25mm | 32mm | 40mm | 45mm |
| Max End mill capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Max.distance from spindle nose to table | 445mm | 450mm | 450mm | 450mm |
| Min.distance from spindle axis to column | 203mm | 260mm | 260mm | 260mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Swivel angle of headstock(perpendicularly) | 90° | 90° | 90° | 90° |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| Motor Power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net weight/gross weight | 180kg/240kg | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
DRILLING MILLING MACHINE FEATURES:
The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
PRODUCT MAIN TECHNICAL PARAMETERS:
| ITEM | ZAY7032V | ZAY7040V | ZAY7045V |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Distance from spindle nose to table |
400mm | 400mm | 400mm |
| Min.distance from spindle axis to column |
285mm | 285mm | 285mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Range of spindle speed (2 steps) |
100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
| Swivel angle of headstock (perpendicular) |
±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table |
175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor power(DC) | 1.1KW | 1.1KW | 1.5KW |
| Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
| Net weight/Gross weight | 300kg/350kg | 310kg/360kg | 310kg/360kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
And cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
| ITEM | ZAY7032FG/1 | ZAY7040FG/1 | ZAY7045FG/1 |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max.boring diameter | 50mm | 60mm | 70mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Max distance from spindle nose to table |
450mm | 450mm | 450mm |
| Min distance from spindle axis to column |
260mm | 260mm | 260mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Auto-feeding step of spindle | 6 | 6 | 6 |
| Auto-feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Swivel angle of headstock (perpendicular) |
±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table |
175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
