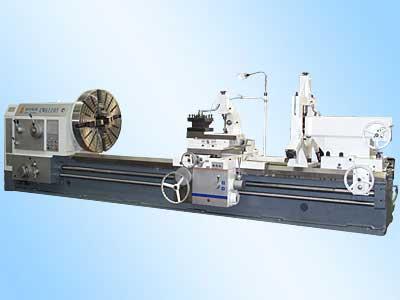

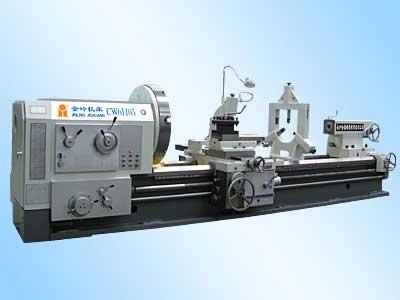

CW61105 Horizontal Lathe(cast iron,high precision,all colour optional)
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
![]()
tails
tails1. Outstanding Characteristics:
1). Carry Load as Heavy as Possible : Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design .
2.). High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT300. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
1). Carry Load as Heavy as Possible : Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design .
2.). High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT300. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
3.) One-piece structure made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.
4.) The lathe bed is in fixed heavy cutting structure, including rectangular hard rails tested by high frequency heat treatment and high-precision surface grinding (straightness in full stroke<0.05mm).
5.)Turcite-B is pasted on the sliding surface in order to enhance the rail's smoothness and wearing resistance. The widened hard rail design can provide required resistance and stability for heavy cutting.
6.) The headstock, made of high strength and high rigidity keel rib, is in special cage shape, and the gearbox includes class P5 grinding gears, which can provide desirable driving accuracy and greater torque.
7.) Incorporating German AM technologies, the main shaft is made of chrome-molybdenum alloy and proves high precision, high rigid and desirable deformation resistance after rough/finish machining, carbonization, aging treatment and precision grinding. The motor figures high output (26kw) and the max. rev. is 3000RPM. After the main shaft assembling is completed, the entire assembly shall be calibrated by dynamic balance test. The independent lubrication will further enhance the stability of the headstock during operation.
8.) Standard 4 knife library, mounted on a turret used for precision turning.
9.) The tailstock consists of two parts: the upper one includes a sleeve moving mechanism, spindle assembly, and a shaft centerline adjustment mechanism, with a rectangular head in the rear, which is designed to lock the sleeve manually; and the lower one includes a tailstock fast-moving motor and a locking mechanism, with the main shaft installed on the high-precision radial clearance-adjustable double-row cylindrical roller bearing in the sleeve, rendering the high-precision rotating top on the tailstock. However, in order to satisfy certain special requirements of the machining process, it is feasible to transfer the plug board from the flange groove in the front of the sleeve to the groove near the front end of the main shaft in order to fix the main shaft and obtain a dead center.
Conventional Type,FANUC ,SIMENS or Chinese Brand system (Optional)
Wider guiderails, three X-rails, One piece body to ensure a higher cutting rigidity.
High configuration and low cost.
| SPECIFICATIONS | ||||||||||
| Item | Unit | Spec | Item | Unit | Spec | |||||
| Max. swing over bed | mm | φ340 | Min. cutting dia. of external cylindrical surface | mm | φ5 | |||||
| Max. swing over carriage | φ260 | Max. turning length | 250 | |||||||
| Max. turning dia. | Dia. of shaft parts | φ60 | Max. travel | X | 80 | |||||
Dia of disc parts | φ160 | Z | 270 | |||||||
| drilling dia. | φ10 | Tail stock | Max. travel of quill | mm | 80 | |||||
| Head stock | Range of spindle speed | r/min | 100～5000 | Dia. of quill | mm | φ75 | ||||
| Main motor power | kw | 5.5 / 7.5 | Taper of quill | Morse | 2＃ | |||||
| X / Z Min. travel of X/Z | mm | 0.0005 / 0.001 | Tool | Manner of drive | Hydraulic | |||||
| Rapid traverse | m/min | 24 | Tool NO. | 8 | ||||||
| 14°15’ | Tool shank size | mm | 20×20 | |||||||
| Spindle taper | 6＃ | Max. tool shank of boring cutter | mm | φ25 | ||||||
| Dia. of spindle bearing | mm | φ80 | Max. turning dia. at tool nose | mm | φ270 | |||||
| Spindle bore | mm | φ52 | Hydraulic chuck | 6? | ||||||
| Spindle nose | A2-5 | Overall dimensions | mm | 1870×1300×1570 | ||||||
| Distance from spindle center line to bed | mm | 180 | Packing size(L×W×H) | mm | 2250×1740×1885 | |||||
| Distance between spindle center line to floor | mm | 912 | Net/Gross weight | kg | 2500 / 3000 | |||||
STANDARD ACCESSORIES:
Maitenance kit, Four jaw independent chuck K72A2/15-1000,∮480steady rest, follow rest, reduction sleeve, adjusting screw, Bed adjusting plate, foundation bolts, level blocks, machine tool manual.
