Decoil slitting line:uncoiler, straightening ,shearing .feeding and positioning, slitting unit, recoiler
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
product Description
Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages: Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

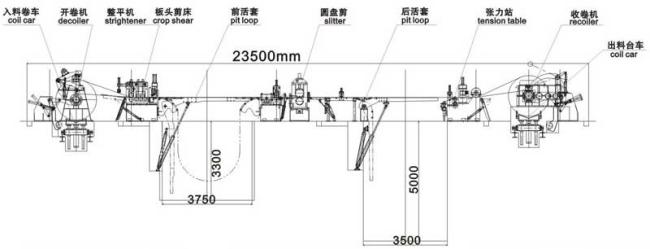

Slitting machine line schematic diagram for your information.
Main Parameters
|
Processing Thickness
|
0.5～4.5mm
|
|
Processing Width
|
600-1600mm
|
|
Slitting Accuracy
|
±0.15 mm
|
|
Slitting Speed
|
120m/min
|
|
Coil Inner Diameter
|
500/610 mm
|
|
Coil Outer Diameter
|
≤2000 mm
|
|
Max. Slitting Numbers
|
6-22pcs
|
|
Slitting Coil Width
|
≥20 mm
|
|
……
|
……
|
|
Not limited to these parameters, custom made according to client practical demands.
|
|
