SQ50B1 1/2"-2" Electric Steel Pipe Threading Machine。SQ50E 1/4"-2" Compact Pipe Threading Machine
SQ50B1 1/2"-2" Electric Steel Pipe Threading Machine
Specifications
Motor: 750W induction, 50/60Hz
Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
Spindle Speed: 24 RPM
Front Chuck: Hammer type with replaceable rocker action jaw inserts.
Rear Centering Device: Cam action.
Oiling System: Through die head, with integral oil reservoir.
Pump: Self-priming constant flow.
Standard Configuration of SQ50B1 Pipe Threading Machine

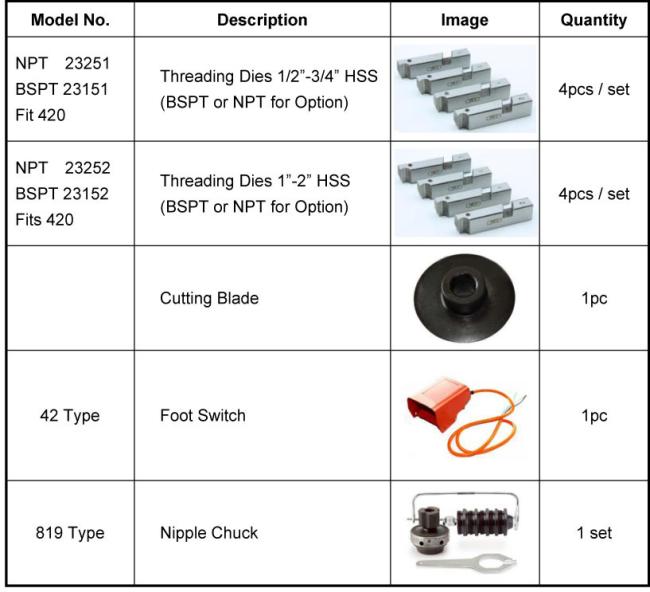

Optional Parts for SQ50B1 Pipe Threading Machine
Ordering Information
| CatalogNo. | ModelNo. | Description |
| SQ50B1 | 110V, 60Hz | |
| SQ50B1 | 220V, 50Hz |
Packing
| ModelNo. | G.W. | N.W. | Packing |
| SQ50B1 | 74kg | 60kg | 76*47*55cm |
SQ50E 1/4"-2" Compact Pipe Threading Machine
Features
1. Light weight, portable design.
2. Self-Contained Oil System with adjust-able flow control.
3. Approved by CE standards.
Specifications
- Motor: 1500W universal, 50/60Hz
- Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch are optional
- Spindle Speed: 38 RPM.
- Front Chuck: Hammer type with replaceable rocker action jaw inserts.
- Rear Centering Device: Cam action.
- Oiling System: Through die head, with integral oil reservoir.
- Pump: Self-priming constant flow, gerotor pump.
Standard Equipment
- Model SQ50E Threading Machine.
- Self-open die head.
- ½”-¾” universal HSS dies set.
- 1”-2” universal HSS dies set.
- Cutter: Capacity: 1/8”-2”(3 mm-50 mm) pipe
- Reamer: Positive-locking, 5-flute cone, right hand 1/8”-2”(3 mm-50 mm).
Ordering Information
| Catalog No. | Model No. | Description |
| 38002 | SQ50E | 110 V, 50/60 Hz |
| 38001 | SQ50E | 220 V, 50/60 Hz |
Packing
| Model No. | G.W. | N.W. | Packing Size |
| SQ50E | 90 kg | 75 kg | 80*56*47 cm |
