M1320/HZ External Cylindrical Grinding Machine/M1332/HZ M1332×15/HZ External Cylindrical Grinding Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Main structure and functions

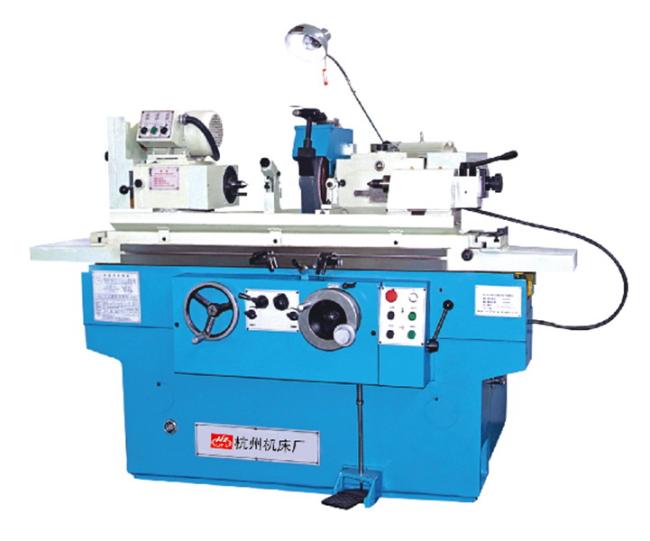

M1320/HZ external cylindrical grinding machine is designed for grinding rotary parts of cylinder and cone with diameter less than 200mm.
The wheelhead adopts integral structure to improve the rigidity, the design of wheel spindle ensures the processing accuracy and realizes high strength and rigidity, thus to achieve high-efficiency grinding requirements. The wheelhead spindle bearing adopts two sets of sliding bearings which composed of three bearing bushes, featuring high rotary precision, high rigidity, good resistance to vibration as well as heavy-load and heavy plunge-cut. The spindle bearing lubrication oil is supplied directly by the oil sump, with self-lubrication protection function and easy for maintenance.
The cross movement of the wheelhead is provided with hydraulic rapid advance and retract function.
The taper of workhead and tailstock adopts Morse 4#, which greatly improves the bearing rigidity of the workpieces, the max. weight of the workpiece can be up to 50kg.
The table consists of swiveling table and table saddle which can be used to adjust the taper of the workpiece, it is positioned through locating pillar and pressing plates at both ends. When the swiveling table needs to swivel for a certain angle, the angle ＆#118alue can be measured by the scale. Micro-adjustment can be measured by the dial gauge. The table guideways use flat-V and plastic sliding guideways. The guideway surface adopts hand scraping. The longitudinal movement of the machine table can be hydraulic-driven and manual-driven, lubrication adopts small-hole throttle unloading type.
All movement components of the machine adopts electrical, hydraulic and mechanical interlock mechanism, the rapid advance and retract movements adopt independent handle, thus to make the machine easy to control and safe to operate.
Main parameters and specifications
Due to the continual development of technology, the above information is for reference only. For more information, please contact us.
Main structure and functions

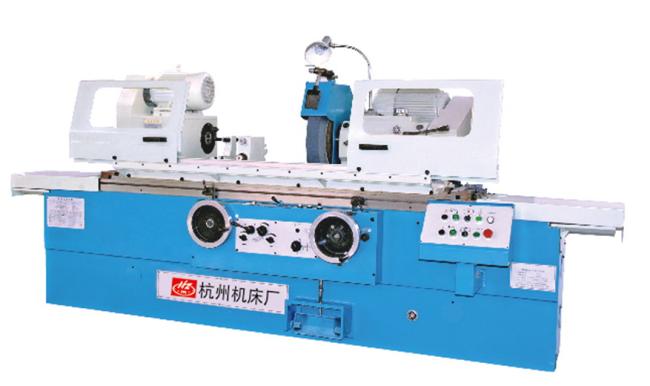

M1332/HZ external cylindrical grinding machine is designed for grinding rotary parts of cylinder and cone with diameter less than 320mm.
The wheelhead adopts integral structure to improve the rigidity, the design of wheel spindle ensures the processing accuracy and realizes high strength and rigidity, thus to achieve high-efficiency grinding requirements. The wheelhead spindle bearing adopts two sets of sliding bearings which composed of three bearing bushes, featuring high rotary precision, high rigidity, good resistance to vibration as well as heavy-load and heavy plunge-cut. The spindle bearing lubrication oil is supplied directly by the oil sump, with self-lubrication protection function and easy for maintenance.
The cross movement of the wheelhead is provided with hydraulic rapid advance and retract function, manual micro-feed function and grinding wheel auto-cycle feed function.
Workhead center adopts Morse 5# and tailstock center adopts Morse 4#, which greatly improves the bearing rigidity of the workpieces, the max. weight of the workpiece can be up to 150kg.
The table consists of swiveling table and table saddle which can be used to adjust the taper of the workpiece, it is positioned through locating pillar and pressing plates at both ends. When the swiveling table needs to swivel for a certain angle, the angle ＆#118alue can be measured by the scale. Micro-adjustment can be measured by the dial gauge. The table guideways use flat-V and plastic sliding guideways. The guideway surface adopts hand scraping. The longitudinal movement of the machine table can be hydraulic-driven and manual-driven, lubrication adopts small-hole throttle unloading type.
All movement components of the machine adopts electrical, hydraulic and mechanical interlock mechanism, the rapid advance and retract movements adopt independent handle, thus to make the machine easy to control and safe to operate.
Main parameters and specifications
Due to the continual development of technology, the above information is for reference only. For more information, please contact us.
