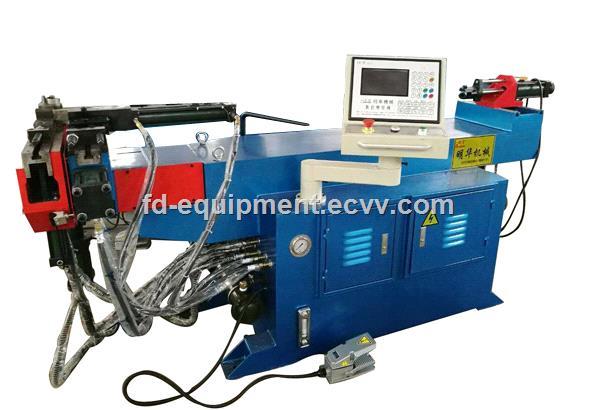

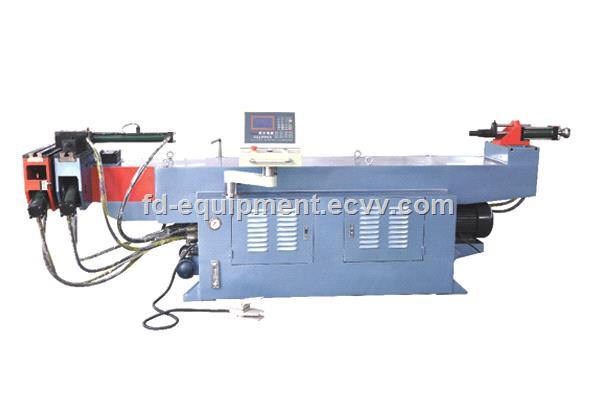

DW130NV High -speed NC control Single-Head Hydraulic Pipe Bender
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
SPECIFICATIONS:
Introduced trades:
Automobile fittings(break fuel pipe,bumper,muffler,seat)motorcycle,shipbuilding,boiler,power plant,train,fitness equipments,air condition,bicycle,steel furniture,bathroom equipment.
| Key Specifications | unit | Models: DW130NC | Notes |
| Maximum bending diameter × wall thickness | mm | Φ130 × 8 |
1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements |
| Maximum bending radius | mm | R520 | |
| Minimum bend radius | mm | R90 | |
| Maximum bending angle | Degree | 190 | |
| Standard straight-length | mm | 4500 | |
| Control system | Microcomputer control | ||
| Elbow pipe to allow the number of | Unit | 16 | |
| Parts store a few | Unit | 16 × 16 | |
| Hydraulic motor power | KW | 22 | |
| System pressure | Mpa | 14 | |
| Hydraulic system control | Solenoid valve | ||
| Tank capacity | L | 400 | |
| Overall size | mm | 5700x1600x1300 | |
| Machine weight | Kg | 8000 |
