PL1200, PL1600 High- Output Batching Plant for Concrete BlockProduction Line, Concrete Mixing Plant
Price:
0-20000/ set
MOQ:
1 set
Delivery Time:
30 working days
Brand:
Unik
Product Description

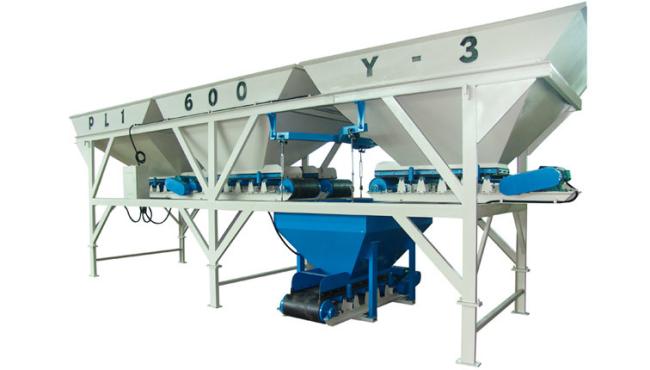

Batching Station for different kinds of interlocking block machine, hollow block machines.
Its function is to weigh the raw materials. And after weghing, the materials will be lifted to mixer for mixing.
The batcher is equipped with individual loadcell/ sensors and vibration motors to ensure the accurate weighing of materials.
If you want bigger volume for materials, it is optional to enlarge the hopper volumes.
Specifications:
| PARAMETER | PL1200-II | PL1200-III | PL1600-II | PL1600-III |
| Cubage of Weighing Hopper | 1.2 m3 | 1.2 m3 | 1.6 m3 | 1.6 m3 |
| Cubage of Storing Hopper | 3m3× 2 | 3m3× 3 | 3.5m3× 2 | 3.5m3× 3 |
| Productivity | ≥60 m3/h | ≥60 m3/h | ≥80 m3/h | ≥80 m3/h |
| Batching Accuracy | ±2% | ±2% | ±2% | ±2% |
| Amount of Batching Aggregate | ||||
| Maximum Lifting Height | 3000 mm | 3000 mm | 3000 mm | 3000 mm |
| Speed Of Belt Conveyor | ||||
| Power | 6.6kw | 10.6 KW | 6.6kw | 10.6 KW |
| Outline Dimension | ||||
| Weight | 3100kg | 4100kg | 3600kg | 4820 kg |
For more, please contact:
Hailley Fu
Mobile:0086-15880984810
Email:hailleyfu@hotmail.com
