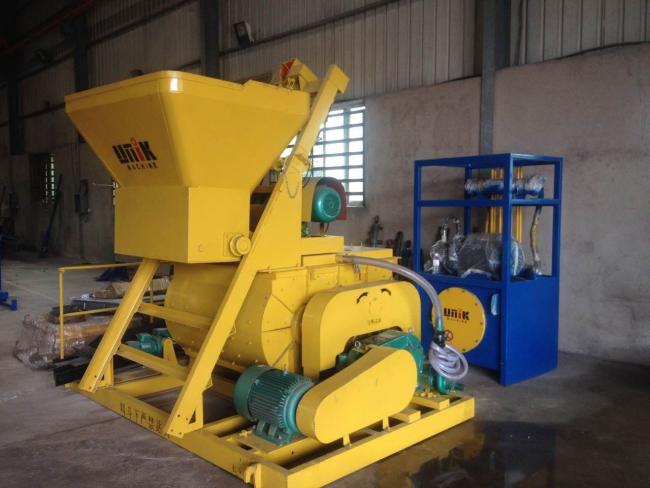

Twin-shaft Mixers JS500, JS750, JS1000 high quality for brick making machine, block production line

Price Negotiable

Price: $0-15000/set

MOQ: 1 set

Delivery Time: 30 working days

Brand: Unik

Product Description

Those mixers are suitable for the production of blocks and concrete.It is used both in block production line or concrete mixing plant with different capacities.

Functions: For the mixing of raw materials.

JS500 specifications;

Factors	Model JS500
Rated Discharging Volume	550 L
Rated Feeding Volume	800 L
Rated Productivity	≥25 m3/h
Power of Mixing Motor	18.5 KW
Power of Winch Motor	5.5 KW
Power of Water Pump Motor	0.75 KW
Discharging Height	1.5 m
Maximum Size of aggregate	80/60 (pebble/stone) mm
External Dimension	4480×3030×5280
Weight of the Whole Machine	4 T
Discharging Mode	Manual-JS500 Electric-JS500D Pneumatic-JS500Q

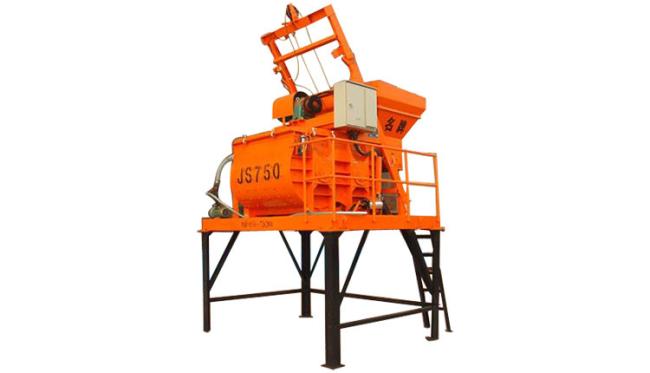

JS750 Specifications:

Factors	Model JS750
Rated Discharging Volume	750 L
Rated Feeding Volume	1200 L
Rated Productivity	≥37.5 m3/h
Power of Mixing Motor	30 KW
Power of Winch Motor	7.5 KW
Power of Water Pump Motor	1.1 KW
Discharging Height	1.6 m
Maximum Size of aggregate	80/60 (pebble/stone) mm
External Dimension	4950×3636×6530
Weight of the Whole Machine	5.5 T
Discharging Mode	Manual-JS750 Electric-JS750D Pneumatic-JS750Q

JS1000 Specifications:

Factors	Model JS1000
Rated Discharging Volume	1000 L
Rated Feeding Volume	1600 L
Rated Productivity	≥50 m3/h
Power of Mixing Motor	2×18.5 KW
Power of Winch Motor	18.5 KW
Power of Water Pump Motor	5.5 KW
Discharging Height	3.8 m
Maximum Size of aggregate	80/60 (pebble/stone) mm
External Dimension	9600×3700×10300
Weight of the Whole Machine	10 T
Discharging Mode	Manual-JS1000 Electric-JS1000D Pneumatic-JS1000Q
