Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet
Thermostatic 40U 19" Rack Powder Coating Outdoor Telecom Cabinet
With Active Cooling Front Back Door
Outdoor 40U 19" Rack Telecom Cabinet Overview
ET9090210-40U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
Outdoor 40U 19" Rack Telecom Cabinet Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● The door mounted air conditioning system is convenient for maintenance, cleaning and replacement
● Access control, smoke, water immersion, temperature and other comprehensive protection
● Support remote management function, improve security and minimize customer operation cost
Outdoor 40U 19" Rack Telecom Cabinet Applications
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
Outdoor 40U 19" Rack Telecom Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET9090210-40U |
| Protection Level | IP55 | |
| External Dimension | H2100mm×W900mm×D900mm | |
| Internal Space | 19 inch rail, 40U | |
| Material |
Galvanized steel, double wall. 1.2mm outer wall, 1.0mm inner wall, thickness of bearing parts: 2.0mm |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Mode | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door and one rear door, front and rear maintenance | |
| Cooling | Air Conditioner |
AC220V 50Hz 1500W, 2 pcs One installed on front door, the other on back door. |
| Fan | DC48V, 2pcs on the cabinet top | |
| Power Distribution Unit(optional) |
SPD 60KVA AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
|
| Sensors (optional) | Door sensor , water sensor, temperature and humidity sensor, smoke sensor | |
| Environment Monitoring Unit(optional) |
19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
|
| Illumination | 48VDC LED lamp with lamp switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Outdoor Telecom Cabinet Diagram

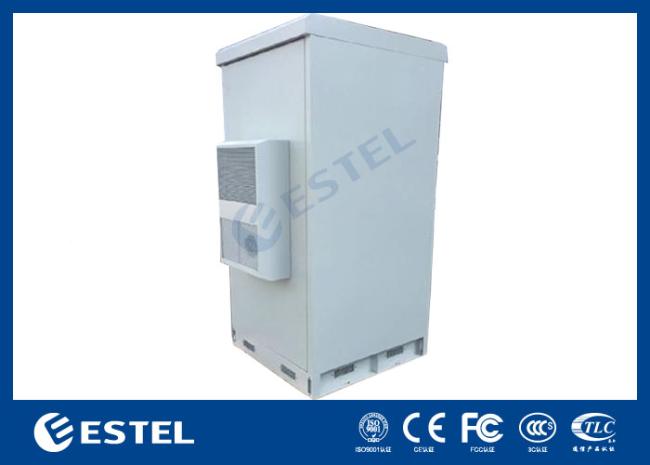

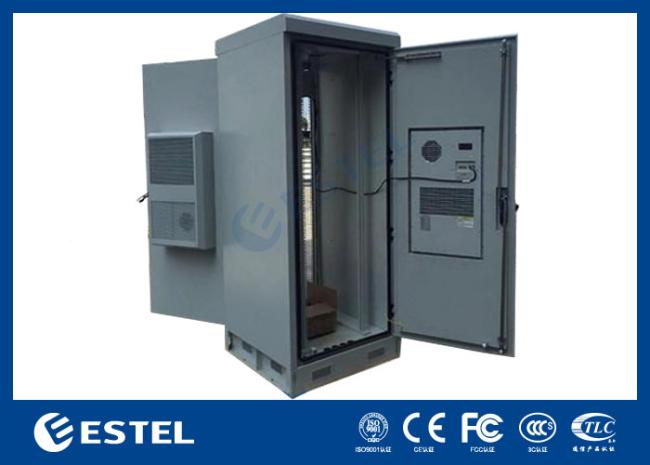

Cabinet Pictures
