Customized 19inch 42U IP55 Outdoor Telecom Cabinet With Quater Fans and Dual doors
Customized 19inch 42U IP55 Outdoor Telecom Cabinet With Quater Fans And Dual Doors
19inch 42U IP55 Outdoor Telecom Cabinet Overview
The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G, smaller size outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.
19inch 42U IP55 Outdoor Telecom Cabinet Feature
1. Solid structure with high quality materials;
2. Customized solution design;
3. High protection level IP55, can be customized IP65
4. Single layer structure, for outdoor application;
5. Waterproof, sunproof and rainproof, anti-corrosion, durable;
6. Temperature controlling and good cooling solution,options: air conditioner, heat exchanger or fan ;
7. Scratch-proof surface with outdoor powder coating on demand;
8. Easy installation and maintenance;
9. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
10. All the cables used in the cabinet are made from flame retardant materials.
19inch 42U IP55 Outdoor Telecom Cabinet Technical Parameters
| Dimension | 600*600*2175mm(W*D*H) |
| Space Capacity | 42U |
| Structure | Single compartment, single layer structure, two doors, one front door and one rear door |
| Material | Galvanized Steel |
| Cooling Way | Fan cooling Type,total 4 fans, on front door |
| Color | RAL7035 powder coating |
| Installation | Floor/Ground Mounting |
| Protection Level | IP55 |
| Accessories | LED lamp and switch |
| Application | Communication base station |
Working Condition
| Temperature | Working Temperature | -40°C ~ +55°C |
| Storage Temperature | -50°C ~ + 70°C | |
| Transport Temperature | -50°C ~ +70°C | |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |

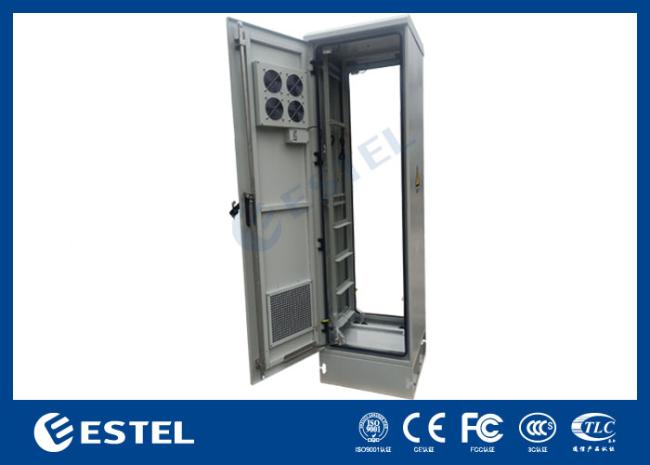

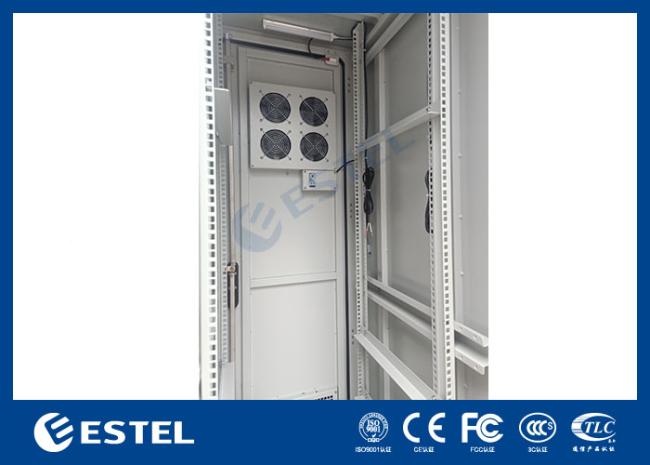

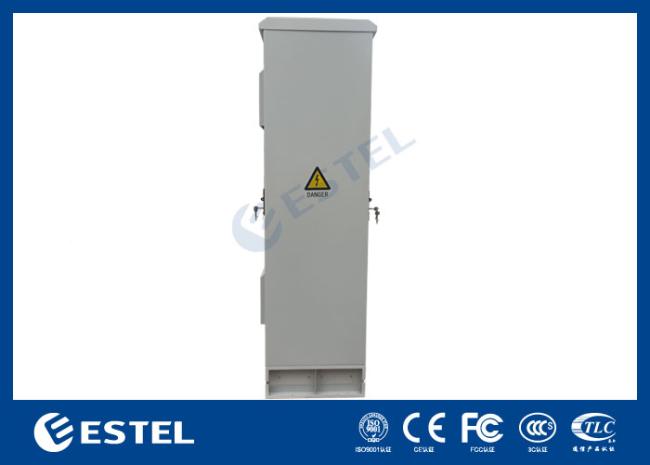

Customized IP55 Outdoor Telecom Cabinet With Quater Fans And Dual Doors Pictures:
Customized options of cooling system:
- Natural ventilation cooling system
- DC/AC Air conditioner cooling system
- Heat exchanger cooling system
- Fan cooling system
- TEC cooling system
