China Power System 48VDC 300A 40U Galvanized Steel Waterproof Outdoor Telecom Cabinet for sale

Power System 48VDC 300A 40U Galvanized Steel Waterproof Outdoor Telecom Cabinet

Price Negotiable

Price: negotiation

MOQ: 1 Set

Delivery Time: 15-20 working days

Brand: ESTEL

Product Description

Power System 48VDC 300A 40U Galvanized Steel Waterproof Outdoor Telecom Cabinet

1, Waterproof Outdoor Cabinet Configuration:

Basic Information
Outer Size	800mm(W)x940mm(D)x2050mm(H) (include temperature control protrusions)
Covering Area	800mm(W)x700mm(D)
Height of base	150mm
Weight	≤130kg (excluding the equipment and battery)
User Space	37U
Material	Wall:1.2mm galvanized steel sheet Door:1.5mm galvanized steel sheet
Lock	Three point anti-theft lock,Europe standard ock core,can change or match padlock by itself
Wiring Position	Bottom in and out
Wiring Holes	10xφ36
Protection Grade	IP55
Temperature Control Information
Equipment Compartment	Mode:heat exchanger Heat dissipation efficiency:200W/K Rated voltage:48VDC Rate power:520W
Battery Compartment	Mode:DC air conditioner Cooling capacity (L35/L35):500W Rated voltage:48VDC Power consumption (L35/L35):160W

Other Information
Lighting	DC-48VLED Light
Smoke sensor	12VDC

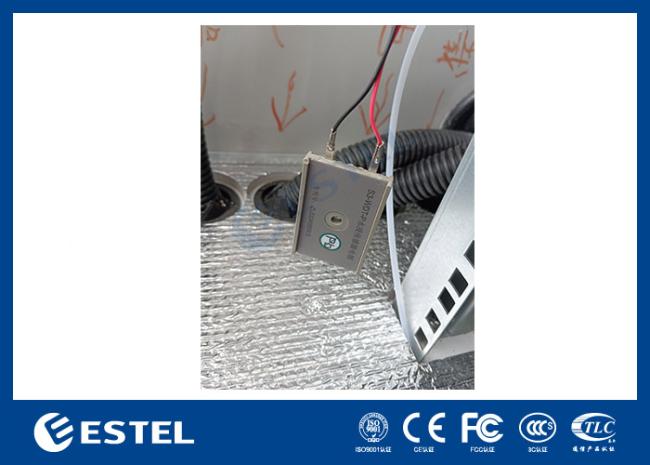

Flood Sensor	Dry contact

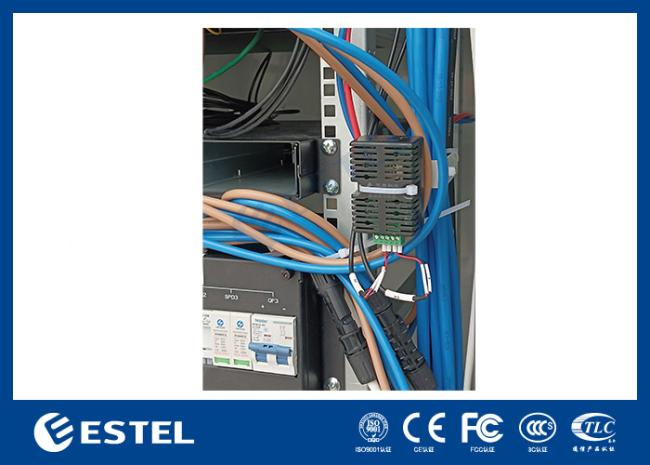

Temperature and humidity sensor	12VDC
Access Control	Dry Contact
Environment
Operating Temperature	10℃ to +45℃
Storage Temperature	40℃ to +75℃
Operating Humidity	5% to 95% (non-condensing)
Altitude	0 to 4000m (if the altitude is within the range of 3000m to 4000m,the maximum operating temperature decreases by 1℃ as the altitude increases by 200m)
Internal Rack Information
Equipment Compartment	Rack mode:19"space according to IEC 60297-3 Depth:400mm Height:20U The available distance in front of the 19":180mn
Battery Compartment	Rack mode:two groups battery bracket Height of each battery bracket:≥350mm Optional:17U19"rack for lithium battery

2. Telecom Power System 48VDC 300A 40U Outdoor Telecom Cabinet Rectifier:

It is a19-inch sub-rack for hybrid power system,with 5U height compact design to meet critical application needs of fiber and microwave transmission,access device,switch..

The system's maximum power is 150A,with AC input/DC input/battery/load MCBs.The cables are front accessing with MCB and busbar.

3. Power System 48VDC 300A 40U Rectifier key features:

·Wide input voltage range:85 to 290VAC for rectifier and 120 to 420VDC for MPPT

·Rectifier,MPPT and controller are hot pluggable,easy and quick on-line maintenance

·High efficiency up to 96%for lower operating cost

·Supports ethernet,SNMP,ModBus and RS485 communication interfaces

*customized design is available.

Input Distribution
	AC	DC
Input Mode	220VAC single-phase	120VDC to 425VDC
Input Frequency	45 to 65Hz,rated value:50Hz/60Hz	/
Input Capacity	63A/2Px1	63A/2Px5
SPD	20kA/40kA,8/20μs
Output Distribution
	Rectifier	Solar Module
Output Voltage	-42 to-58VDC,rated value:-53.5VDC	-42 to-58VDC,rated value:-54.5VDC
Battery Breakers	125A/2P
Load Breakers	Lvd:32A/1Px1,10A/IPx5; Blvd:32A/1Px2,10A/1P×5
DC SPD	20kA/40kA,8/20μs
Module
	Rectifier Module	Solar Module
Input Voltage	85 to 290VAC, rated 220VAC	120 to 420VDC rated 340VDC
Efficiency	>96%	>96%
Rated Power	3000W(176 to 290VAC)	3000W(200 to 425VAC)
Working Temperature	-10°℃ to +75℃(fully output below 55℃)	-10℃ to +75℃ (fully output below 50℃)

Controller

Signal Input	3Al(2 battery temp,1 ambient temp),2RS485,7 DI
Alarm Output	6 dry contact
Communication Port	RS485,SNMP
Display Mode	LCD
System

Dimension (WxDxH)	482x350.6×9U,≤30kg(without modules)
Cooling Mode	Natural cooling
Maintenance Mode	Front maintenance,support modlule grade change
Protection level	IP20
Environment
Operating Temperature	-10℃ to +50℃
Storage Temperature	-40℃ to +75℃
Operating Humidity	5%to 95%(non-condensing)
Altitude	0 to 4000m(if the altitude is within the range of 3000m to 4000m,the maximum operating temperature decreases by 1℃ as the altitude increases by 200m)
