Outdoor Power Supply Enclosure With Fan Pole Mounted Cabinet Model ETDBU2082SGPE

Outdoor Power Supply Enclosure With Fan Pole Mounted Cabinet Model ETDBU2082SGPE

1, Outdoor Power Supply Enclosure Description:

Cabinet Structure: the cabinet use 1.2mm galvanized steel, with 20mm insulation between outer plate and inner plate.

Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is small round point lock.

Features
The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
The cabinet use fans for cooling.
The cabinet includes -48VDC LED lamp for illumination.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.
All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
The cabinet use DIN rack installation method.

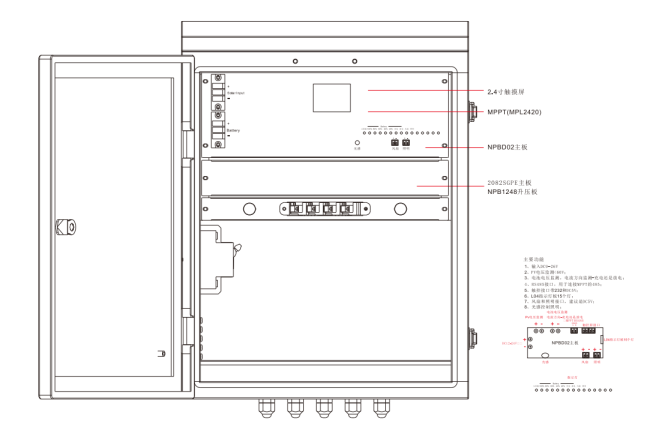

2, Outdoor Cabinet With Fan Drawing:

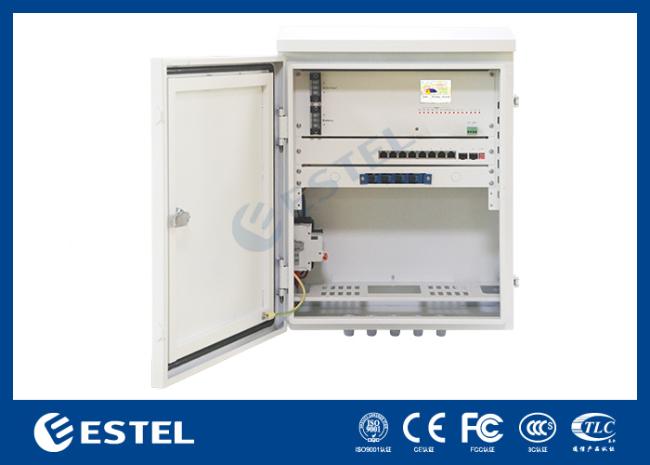

3, Outdoor Cabinet Pictures:

4, Outdoor Enclosure Additional Info:

"Outdoor switch box" typically refers to an electrical switch enclosure designed for outdoor environments. This box is primarily used to protect electrical switches, sockets, circuit breakers, and other related equipment from harsh weather conditions, dust, moisture, and other environmental factors. They are often equipped with strong waterproof, dustproof, and weather-resistant features to ensure the safety and reliable operation of the electrical system.

Here are some key points about outdoor switch boxes:

1. 1. Waterproof and Dustproof Ratings: Many outdoor switch boxes have IP (Ingress Protection) ratings such as IP65, IP66, or IP68, indicating their waterproof and dustproof capabilities. Higher IP ratings mean better protection.
2. 2. Materials and Construction: These boxes are usually made of metal (such as stainless steel or aluminum) or plastics (like ABS or polycarbonate) to ensure their strength and durability. The inside of the box may contain partitions or brackets for installing and securing electrical equipment.
3. 3. Safety: Outdoor switch boxes often come with lockable doors or covers to prevent unauthorized access. Additionally, they may comply with specific safety standards and regulations, such as UL (Underwriters Laboratories) or CE (Conformité Européenne) certifications.
4. 4. Applicability: These boxes are suitable for various outdoor environments, including industrial sites, construction sites, parks, street lighting, and other outdoor areas that require electrical equipment. They can be used to control power, lighting, security systems, and more.
5. 5. Customizability: Some suppliers offer customizable outdoor switch boxes to meet the specific needs of a project. This may include different sizes, colors, materials, accessories, and installation options.
