19 inch 35u Intergrated Outdoor Telecom Cabinets With Air Conditioner And Fan
19 inch 35u Intergrated Outdoor Telecom Cabinets With Air Conditioner And Fan
1. 35U Outdoor Telecom Cabinet Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size H×W×D 1900×750×750mm |
|
Brand Name: ESTEL |
Material: Galvanized steel, single wall, with insulation |
|
Model Number: ET75751900A-35U |
Cabinet Layout: one compartment, for installing 19” equipment,35U |
|
Product Name: Outdoor Telecom Equipment Cabinet |
Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 |
Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel (support custom made) | Illumination: 220VAC 50Hz LED lamp |
|
Heat Insulation: PEF |
Grounding Protection: copper bar |
|
Color: grey (support custom made) |
Cooling: AC220V 50Hz Air Conditioner and two fans |
|
Coating: anti-corrosion outdoor powder coating |
Accessories Options: PDU, temperature control switch |
2. 19 inch Intergrated Enclosure Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 6,000 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
3. Weatherproof Enclosure Accessories List:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H×W×D 1900×750×750mm (2) One compartment: equipment compartment (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel ; 1.2mm thickness (5) With 20mm PEF heat insulation |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1500W Power supply: AC220V 50Hz |
| 3 | Ventilation Fans | 2 | PC | 220VAC 50Hz |
| 4 | Door Sensor(optional) | 1 | PC | One for controlling LED lamp, the other for open door alarm |
| 5 | LED Lamp | 1 | PC | 220VAC 50Hz |
| 6 | Power Distribution Unit(optional) | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1 AC Output: 16A/1P*4 DC Output: 16A/1P*4 |
| 7 | Package | 1 | Set | Wooden Case |

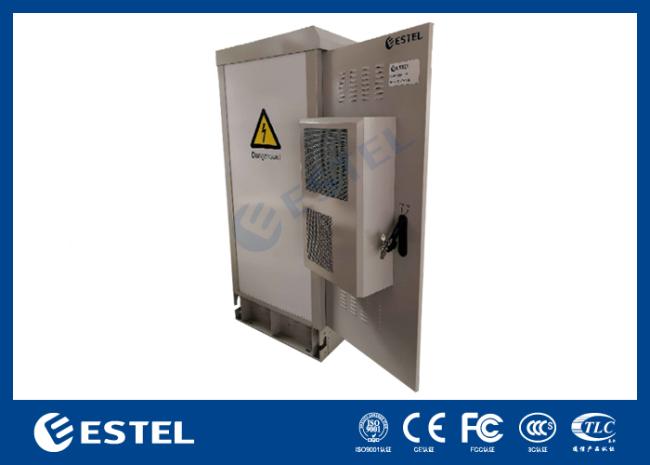

5. Cabinet With Cooling System Picture:
6. IP55 Cabinet Structure:
The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and fans, installed on front door.
7. Cabinet Door and Lock:
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.
8. Appearance and Surface Treatment:
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE RAL7035).
9. Applications:
The ET75751900A-35U Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
10. Feature:
- The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- Cabinet cooling: fans and air conditioner.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant materials.
