ET6575170A-30U Air Conditioner Cooling Outdoor Cabinet With Power Distribution Unit
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
15~20 Days
Brand:
ESTEL
Product Description
ET6575170A-30U Air Conditioner Cooling Outdoor Cabinet With Power Distribution Unit
1. ET6575170A-30U Cabinet Application Scope
The ET6575170A-30U outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

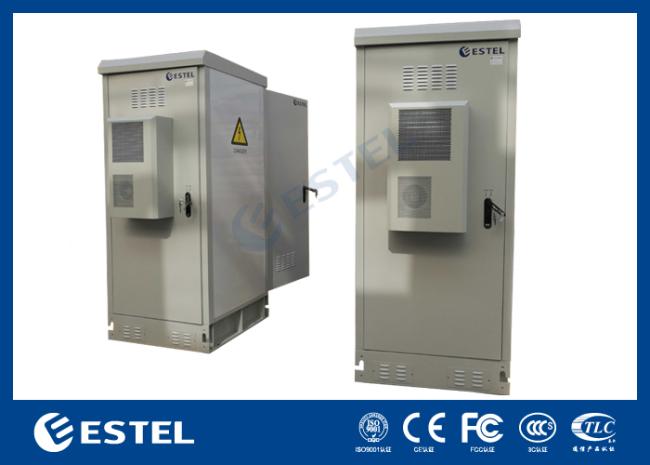

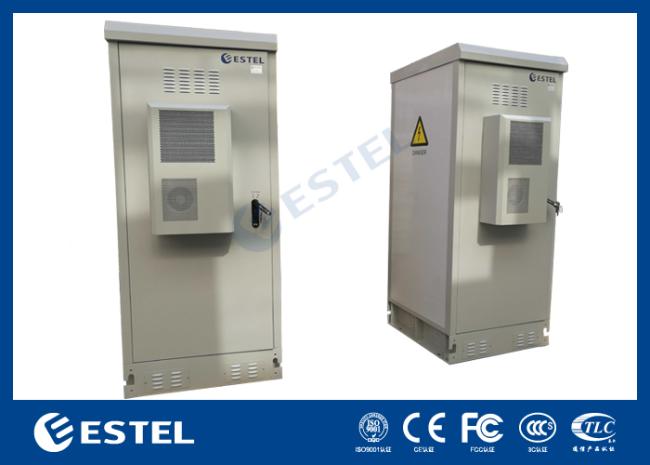

2. Air Conditioner Cabinet Picture
3. Cabinet With Power Distribution Unit Structure
The outdoor rack include one compartment, external size is W650mm×D750mm×H1700mm, 19inch, 30U space, and the size can be customized based on client's request.
4. Outdoor Cabinet Door nd Lock
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is Anti-theft three-point locking system, supporting padlock.
5. Outdoor Cabinet With Air Conditoner Features
The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
The cabinet cooling use two air conditioners, which work in alternation to continuously keep thermostatic inside the cabinet.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
The cabinet uses assembled structure, easy for installation.

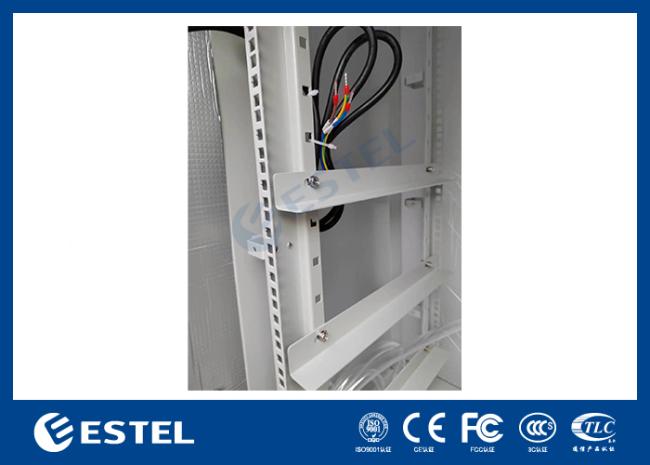

The cabinet includes 19” standard installation rack.
The cabinet includes stainless steel pole, for user to installing antenna.
6. Outdoor Cabinet Technical Specs
(1) Applicable environment conditions:
Environment temperature: -40°C ~ + 70°C
Environment humidity (RH): ≤95% (at + 40°C)
Air pressure: 62kPa ~ 102kPa
(2) Material: quality galvanized steel
(3) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
(4) Cabinet load bearing: ≥600kg
(5) Ingress protection: IP55
(6) Flame retardance: comply with GB5169.7 test A
(7) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M /500V(DC).
(8) Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
(9) Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.
7. Outdoor Cabinet Dimension Parameter
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6575170A-30U |
| Protection Level | IP55 | |
| External Dimension | W650mm×D750mm×H1700mm | |
| Internal Dimension | 19inch ,30U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-thieft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door | |
| Cooling |
AC Air Conditioner |
1500W 220VAC 50Hz , install on the front door |
| Fan | Fan | Two 220VAC 50Hz fans, One temperature controller |
| Others | LED lamp | |
| The entrance guard switch | ||
| Environment | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
