Outdoor Power Enclosure Three Compartments With Air Conditioner ET24090180C-180
Outdoor Power Enclosure Three Compartments With Air Conditioner ET24090180C-180
1. Outdoor Power Cabinet Overview
Telecom cabinet provides superior protection for telecom and communication equipment from the ravages of changing weather, temperature, moisture and other hazards.
Made from heavy-duty steel, this series telecommunication shelters are built to last. They are insulated and temperature controlled with heaters or air conditioners, making them suitable for wireless communications, power / equipment storage, telecom, 3G and 4G application.
2. Outdoor Enclosure with Air Conditioner Cabinet Features
| Model | ET24090180C-180 |
| Structure | 3 compartments |
| Cabinets | Outdoor telecom cabinets |
| Material | Galvanized sheet,double wall per customer's request |
| Doors | Three front doors |
| Thickness | Outer panel thickness1.5mm,internal panel thickness 1.0mm. |
| Dimension | W*D*H 2400*900*1800mm |
| Cooling method | AC air conditioner cooling system |
| Surface treatment | Painting,plasma electrostatic painting,hot galvanized,powder coating, polishing, brushing,etc. |
| Mounting method | Floor mounted |
| Optional Accessories | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| IP Degree | IP55 |
| Color | RAL7035 |
Hinge | Inner hinge |
| Cooling | Air conditioners |
Sensors | Per client's request |
Environment Monitoring Unit | Per client's request |
Power Distribution Unit | Voltage: 200VAC～240VAC(optional) Input: 2P 63A×1, SPD 60KA (optional) Output: 1P 32A×2,1P 16A×4 (optional) |
| Package | Wooden case with pallets |
3. ET24090180C-180 Outdoor Enclosure Cabinet Applications
Our outdoor telecom cabinet is used for housing and protecting active communications, UPS, DVR and sensitive electronic equipment, it is suitable in the harsh outdoor environment. It can be used in the following places:
Communication station
Carpark
Trackside
Buildingtop
Mountain area
Public garden
Seaside
Street
4. Three Compartments Cabinet Components Installation
4.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.
Environment Monitoring Unit and PDU are installed on 19” rack.
4.2 Air Conditioners and fans are installed on the door of the enclosure.

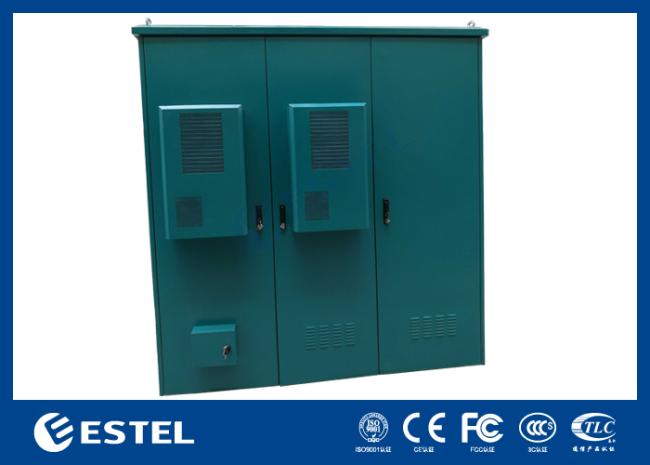

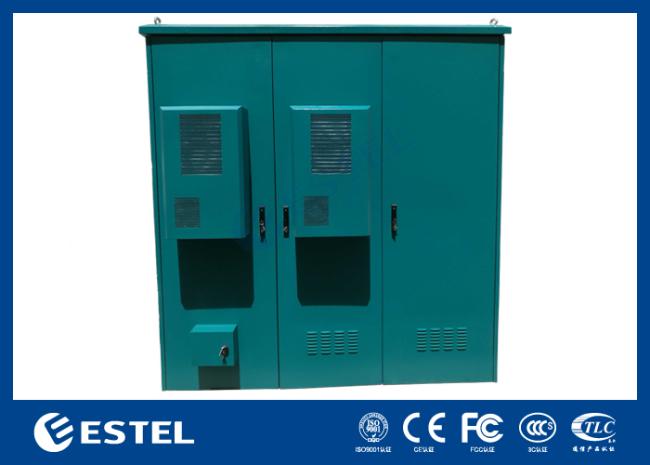

5. Outdoor With Air Conditioner Cooling Pictures
6.Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
