Seamless Steel Tubes-Hot finished welded steel tubes BS6323-2 for automotive industry
BS6323-2 Seamless and welded steel tubes for automobile, mechanical and general enginnering purposes
Specific requirements for hot finished welded steel tubes
End USE: for Auto industry / for machinery use/mechanical and general engineering purposes

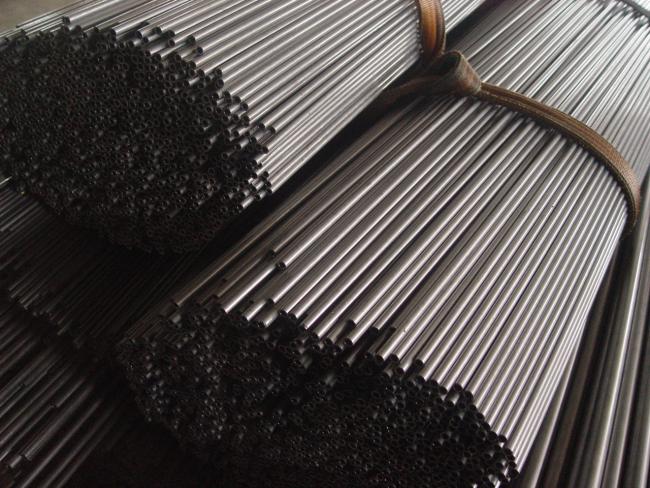

Size range: O.D.:6-350mm W.T.:1-30mm L:max12000mm
|
Design |
Chemical Compositions( ladle analysis) |
Mechanical |
||||||
|
Cmax. |
Simax. |
Mnmax. |
Pmax. |
Smax. |
Remin. |
Rmmin. |
Amin. |
|
|
% |
% |
% |
% |
% |
N/mm2 |
N/mm2 |
% |
|
|
HFW 2 |
0.16a |
~ |
0.70 |
0.050 |
0.050 |
195 |
320 |
25 |
|
HFW 3 |
0.20a |
0.35 |
0.90 |
0.050 |
0.050 |
215 |
360 |
24 |
|
HFW 4 |
0.25 |
0.35 |
1.20 |
0.050 |
0.050 |
235 |
410 |
22 |
|
HFW 5b |
0.23 |
0.35 |
1.50 |
0.050 |
0.050 |
340 |
490 |
20 |
| NOTE Welding of tubes of these grades does not require special techniques but care should be taken and welding should be carried out in accordance with the guidance given in the appropriate British Standard for welding,e.g. BS 5135. aIf rimming or semi-killed steel is used for grade 2,the carbon content may be increased to 0.19%,and if used for grade 3,to 0.23%.bGrain refining elements may be added to this grade at the option of the manufacturer. |
||||||||
|
Dimensions of hot finished welded steel tubes |
||||||
|
Outside |
Designation HFW 2 and 3 |
Designation HFW 4 and 5 |
||||
|
Thicknesses |
Thicknesses |
|||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
21.3 |
2.0 |
2.6 |
3.2 |
3.2 |
|
|
|
26.9 |
2.3 |
2.6 |
3.2 |
3.2 |
|
|
|
33.7 |
2.6 |
3.2 |
4.0 |
2.6 |
3.2 |
4.0 |
|
42.4 |
2.6 |
3.2 |
4.0 |
2.6 |
3.2 |
4.0 |
|
48.3 |
2.9 |
3.2 |
4.0 |
3.2 |
4.0 |
5.0 |
|
60.3 |
2.9 |
3.6 |
4.5 |
3.2 |
4.0 |
5.0 |
|
76.1 |
3.2 |
3.6 |
4.5 |
3.2 |
4.0 |
5.0 |
|
88.9 |
3.2 |
4.0 |
5.0 |
3.2 |
4.0 |
5.0 |
|
114.3 |
3.6 |
4.5 |
5.4 |
3.6 |
5.0 |
6.3 |
|
139.7 |
6.3 |
6.3 |
||||
|
NOTE For sectional properties including mass per unit length,see appendix B of BS 6323-1:1982 |
||||||
|
Distance between platens for flattening test |
|
|
Designation |
Distance between platens |
|
|
% |
|
HFW 2 |
75 |
|
HFW 3 |
85 |
|
HFW 4 |
85 |
|
HFW 5 |
85 |
