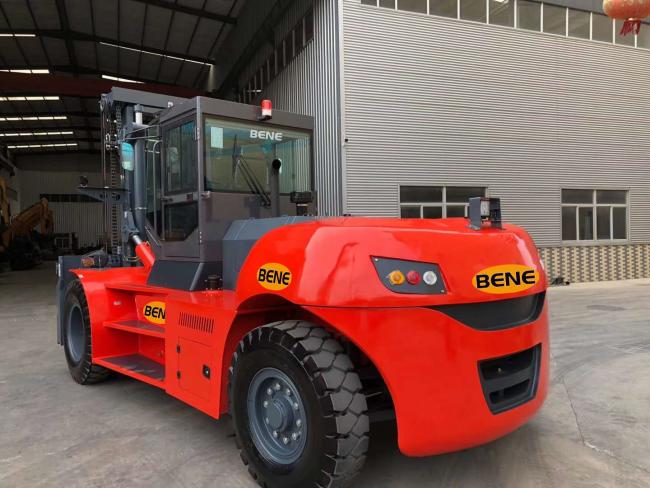

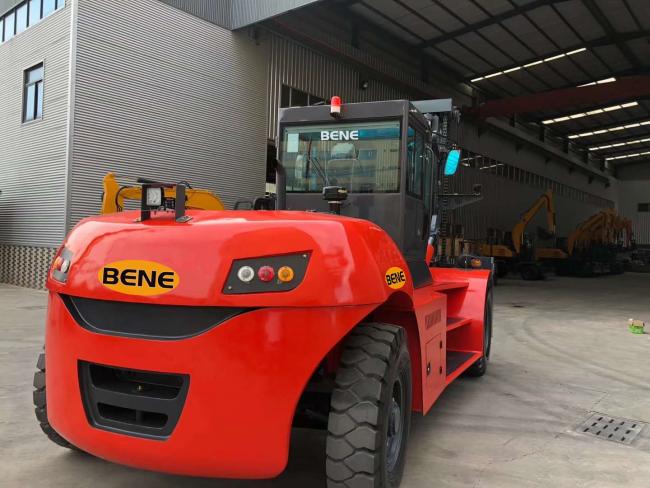

Chinese hot sale 18ton diesel forklift FD180 container forklift with duplex mast for sale
Powerful 6-cylinder Cumins QSB 6.7 turbo diesel engine
Engine: Cumins QSB6.7
Rated output: 129kw/2200r.p.m.
Rated torque: 800N.m/1500r.p.m.
Number of cylinder: six
Bore*stroke: 107mm*124mm
Displacement: 6700cc
Fuel tank capacity: 350L
Premium hydraulic system and components
World-class Japan Okamura transmission
Low oil pressure/high coolant temperature sensing engine protection system
CAN-Bus communication system provides real time diagnostics to deliver excellent reliability and simplified servicing procedures
Programmable vehicle modes for maximum speed and acceleration or lower rated speeds to offset fuel consumption
Optimised wide-view mast provides clear view of front load and surrounding areas
Low side steps and large grab handles provide safe and easy access to operator area
Dual air filter
Vertical Exhaust
Maximum mast height of up to 7 metres
Optional air conditioner,
Optional attachments
Compliant to latest EPA Tier 4 Final and EU Stage V emission regulations
Factory-Backed parts and technical advice support
| Item | Specification | Unit | |||
| General | 1 | Model | FD180 | ||
| 2 | Power Type/model | Diesel | |||
| 3 | Rated Capacity | Kg | 18000 | ||
| 4 | Load Center | mm | 1200 | ||
| Dimensions | 5 | Lift Height | mm | 3500 | |
| 6 | Fork Size(LxWxT) | mm | 2000×220×90 | ||
| 7 | Fork Spread(outside)(Min./Max) | mm | 540/2260 | ||
| 8 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 9 | Fork Overhang | mm | 800 | ||
| 10 | Length without forks | mm | 5400 | ||
| 11 | Overall Width | mm | 2550 | ||
| 12 | Mast Lowered Height | mm | 3460 | ||
| 13 | Overhead Guard Height | mm | 3300 | ||
| 14 | Outer turning Radius | mm | 5050 | ||
| Performance | 15 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 16 | Lifting | mm/s | 300 | ||
| 17 | Max.gradeability(Load) | % | 20 | ||
| 18 | Max.drawbar pull(Load) | KN | 120 | ||
| 19 | service Weight | kg | 24000 | ||
| Wheels&Tires | 20 | Tire | Front | 4×12.00-24-18PR | |
| 21 | Rear | 2×12.00-20-18PR | |||
| 22 | Tread | Front | mm | 1850 | |
| 23 | Rear | mm | 2130 | ||
| 24 | Wheelbase | mm | 3600 | ||
| 25 | Ground Clearance(Under mast) | mm | 260 | ||
| Power & Transmission | 26 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/120 |
| 27 | Engine | Model | YC6J175-T302 | ||
| 28 | Manufacture | YUCHAI | |||
| 29 | Rated Output | Kw | 129 | ||
| 30 | Rated Torque | N.m | 710 | ||
| 31 | No.Of Cyinder | 6 | |||
| 32 | Bore*stroke | mm | 102/120 | ||
| 33 | Displacement | L | 6.5 | ||
| 34 | Transmission | Type | Fluid Torque Converter | ||
| 35 | StageFWD/RVS | 2/1 | |||
| 36 | Operating Pressute | Mpa | 19 | ||
FAQ
1.What's the Certificate do you have?
BENE workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. EPA approval can be available if needed.
2. Can you customize and design as the clients' requirement?
BENE will try our best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery, it can be negotible according to the actual situation.
6. Delivery date:
If clients need normal products, we will deliver the products within 30 days. If clients need customerized products, the delivery date depend on the requirements.
