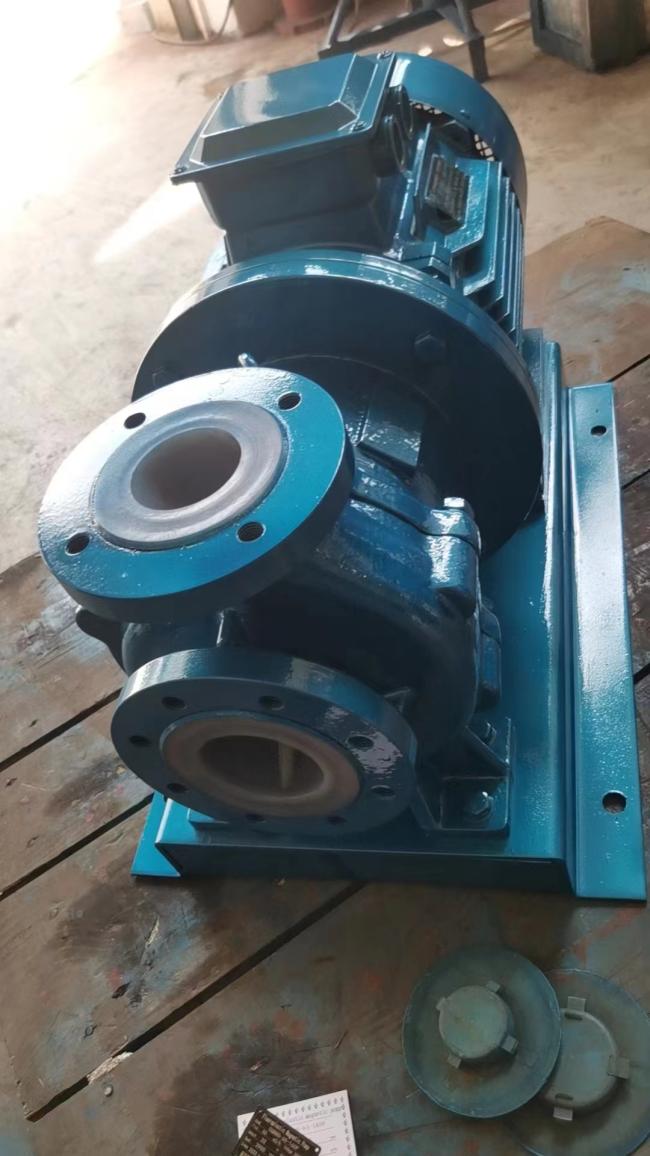

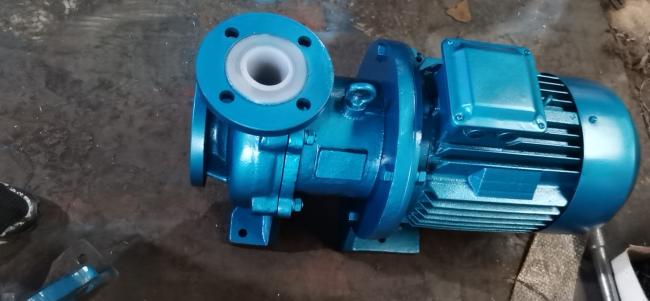

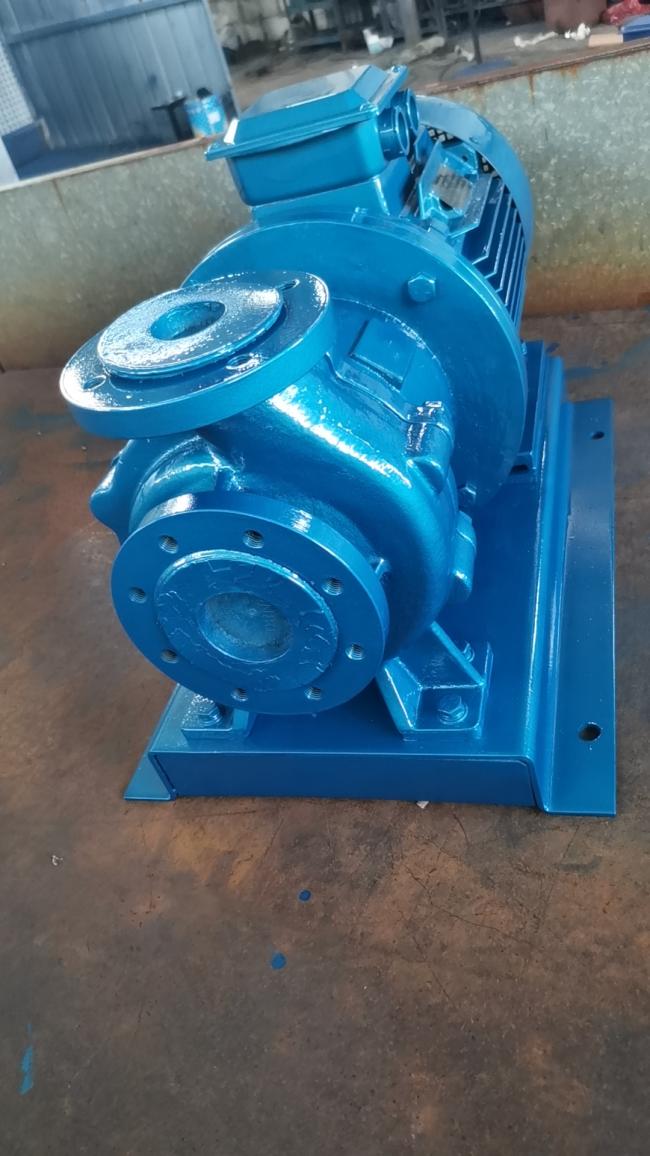

CQB-F Magnetic Drive Pump Chemical Transfer And Circulation Magdrive Pump
Introduction:
1. CQB-F anti corrosion chemical circulating pump magnetic drive pump transfer acid pump wet parts are made of PTFE, it is with strong corrosion resistance, strong mechanical strength and is without ageing and toxin decomposition.
2. The magnetic pump is special for all kinds of chemical liquids without solid or fiber, just like sulfuric acid, nitric acid, caustic soda, etc.
3. This transfer acid pump is special desighed that won't leak without machanical axis.
4. Widely used in petrochemical industry, acid/alkali plant, non-ferrous metal metallurgy, pickling in automobile manufacture, rare earth separation, pesticide/dye/medicine/papermaking industry, electroplate/radio industry, etc.
Product details:
| Working Principle: | Centrifugal, Magnetic |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 220/380/415V 3phase; 110/220/240V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange,Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron lined with PTFE |
| Shaft seal type: | Static sealing |
| Maximum drive rating: | 18.5KW(25HP) |
| Maximum Inlet/Out DN: | 100mm(4inch)/80mm(3inch) |
| Maximum discharge-side pressure: | 0.32MPa(3.2bar) |
| Maximum head: | 32m(105ft) |
| Flow rate range: | 1.8-100m3/h(7.9-440 US.GPM) |
Performance data:
| Model | Inlet | Outlet | Capacity | Head | NPSH | Motor power | Voltage |
| (mm) | (mm) | (m3/h) | (m) | (m) | (KW) | (V) | |
| CQB15-10-85F | 15 | 10 | 1.8 | 8 | 6 | 0.12 | 220/380 |
| CQB20-15-105F | 20 | 15 | 3 | 12 | 6 | 0.37 | 220/380 |
| CQB32-25-125F | 32 | 25 | 3.2 | 20 | 5 | 0.75 | 380 |
| CQB32-25-145F | 32 | 25 | 3.2 | 25 | 6 | 0.75 | 380 |
| CQB40-32-115F | 40 | 32 | 6.3 | 15 | 5 | 0.75 | 380 |
| CQB40-32-145F | 40 | 32 | 6.3 | 25 | 3.5 | 1.5 | 380 |
| CQB40-32-160F | 40 | 32 | 6.3 | 32 | 3.5 | 2.2 | 380 |
| CQB50-40-125F | 50 | 40 | 12.5 | 20 | 4 | 2.2 | 380 |
| CQB50-40-160F | 50 | 40 | 12.5 | 32 | 4 | 3 | 380 |
| CQB65-50-125F | 65 | 50 | 25 | 20 | 4 | 3 | 380 |
| CQB65-50-160F | 65 | 50 | 25 | 32 | 4 | 5.5 | 380 |
| CQB80-65-125F | 80 | 65 | 50 | 20 | 4 | 7.5 | 380 |
| CQB80-65-160F | 80 | 65 | 50 | 32 | 4 | 11 | 380 |
| CQB100-80-125F | 100 | 80 | 100 | 20 | 4 | 11 | 380 |
| CQB100-80-160F | 100 | 80 | 100 | 32 | 4 | 18.5 | 380 |
| NOTE: From CQB32-25-125F to CQB100-80-160F in the table can be equipped with EP | |||||||
