1500M3/H LW Vertical Non Clog Pump 2 Inch Wastewater Submersible Pump
1500M3/H LW Vertical Non Clog Pump 2 Inch Wastewater Submersible Pump
Product Description
Application
Suitable for stationary commercial plant for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant's water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt.
Working condition
Flow: 2 ~ 1500 m3 / h
Head range: 3 ~ 45m
Rated speed n: 970 ~ 2900r/min
Medium temperature: < 99 degrees
Media PH value: 5-9
System maximum working pressure: ≤ 0.6Mpa
Model explanation
100 LW P 100 – 15 – 7.5
100 — Outlet diameter
LW — Non-clogging vertical sewage pump
P — * P stainless steel
* B explosion proof
100 — Flow
15 — Head
7.5 — Motor power
MODEL
|
Model |
size |
flow |
head |
speed |
power |
efficient |
couping |
|
mm |
m3/h |
M |
r/min |
kw |
% |
||
|
25-8-22-1.1 |
25 |
8 |
22 |
2900 |
1.1 |
45 |
|
|
32-12-15-1.1 |
32 |
12 |
15 |
2900 |
1.1 |
|
|
|
40-15-15-1.5 |
40 |
15 |
15 |
2900 |
1.5 |
54 |
|
|
40-15-30-2.2 |
40 |
15 |
30 |
2900 |
2.2 |
54 |
|
|
50-20-7-0.75 |
50 |
20 |
7 |
2900 |
0.75 |
51 |
GAK-50 |
|
50-10-10-0.75 |
50 |
10 |
10 |
2900 |
0.75 |
52 |
GAK-50 |
|
50-20-15-1.5 |
50 |
20 |
15 |
290 |
1.5 |
53 |
GAK-50 |
|
50-15-25-2.2 |
50 |
15 |
25 |
2900 |
2.2 |
54 |
GAK-50 |
|
50-18-30-3 |
50 |
18 |
30 |
2900 |
3 |
55 |
GAK-50 |
|
50-40-15-4 |
50 |
40 |
15 |
2900 |
4 |
55 |
GAK-50 |
|
50-25-32-5.5 |
50 |
25 |
32 |
2900 |
5.5 |
55 |
GAK-50 |
|
50-20-40-7.5 |
50 |
50 |
20 |
2900 |
7.5 |
58 |
GAK-50 |
|
65-25-15-2.2 |
65 |
25 |
15 |
2900 |
2.2 |
50 |
GAK-65 |
|
65-37-13-3 |
65 |
37 |
13 |
2900 |
3 |
57 |
GAK-65 |
|
65-25-30-4 |
65 |
25 |
30 |
2900 |
4 |
61 |
GAK-65 |
|
65-30-40-7.5 |
65 |
30 |
40 |
2900 |
7.5 |
56 |
GAK-65 |
|
65-35-50-11 |
65 |
35 |
50 |
2900 |
11 |
45 |
GAK-65 |
|
65-35-60-15 |
65 |
35 |
60 |
2900 |
15 |
65 |
GAK-65 |
|
80-60-13-5.5 |
80 |
60 |
13 |
2900 |
5.5 |
67 |
|
|
80-40-7-2.2 |
80 |
40 |
7 |
1450 |
2.2 |
59 |
GAK-80 |
|
80-43-13-3 |
80 |
43 |
13 |
2900 |
3 |
70 |
|
|
80-40-15-4 |
80 |
40 |
15 |
2900 |
4 |
61 |
|
|
80-65-25-7.5 |
80 |
65 |
25 |
2900 |
7.5 |
63 |
GAK-80 |
|
100-80-10-4 |
100 |
100 |
10 |
1450 |
4 |
65 |
GAK-100 |

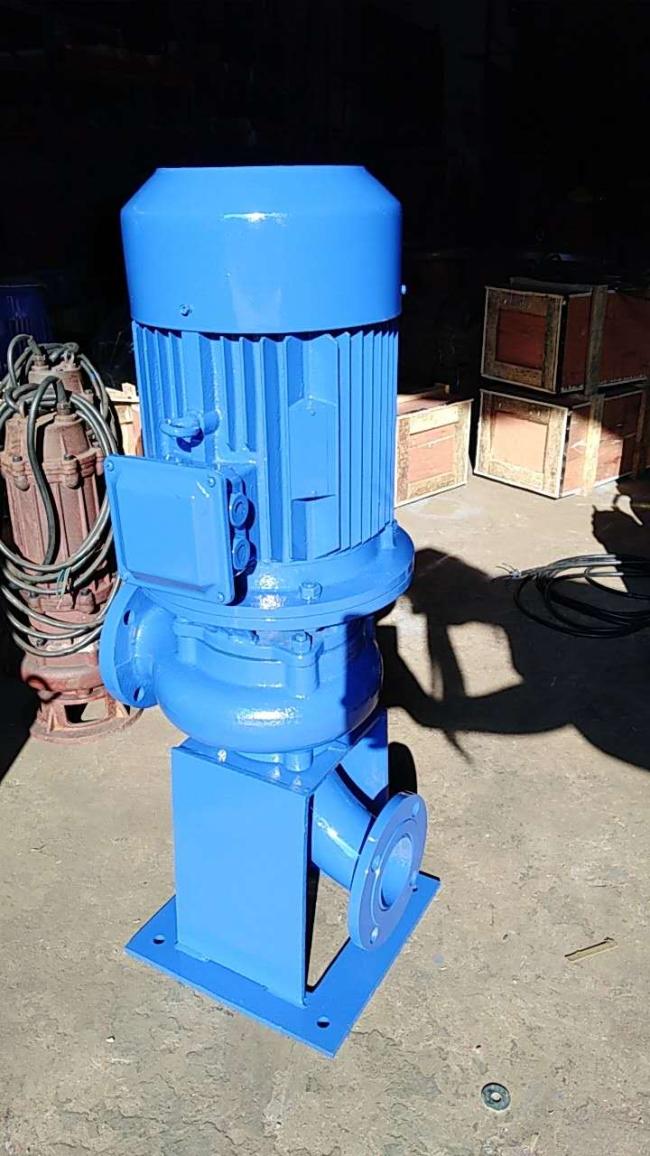

PHOTOS
Packaging & Shipping
All of our products are packed in plywood cases ensure the safety of the products. You can also have special requirements about the packing. You can just tell us your needs and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere in the world timely.
