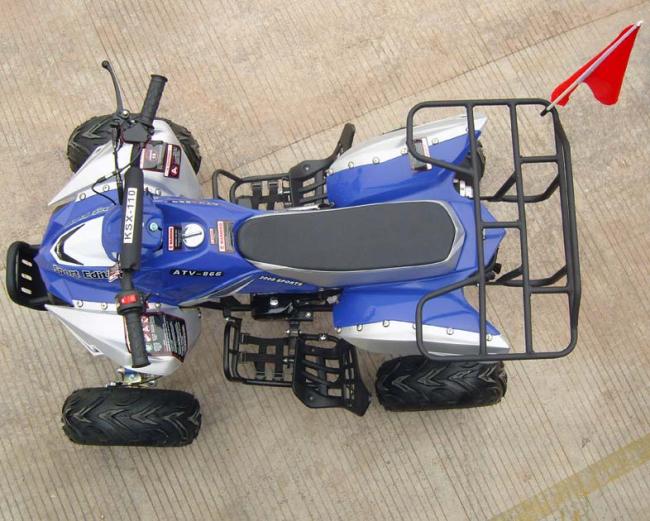

Front / Rear Disc Brake Four Wheelers For Adults , 110cc Four Wheeler Electric Start
110CC Front and Rear disc brake 4-Stroke Single cylinder Air cooled Electric start of four wheel atv
Model:
four wheel atv150-2
Product Description:
(1) Engine type: 4 stroke,GY6 150CC,AIR-COOLED
(2) Engine brand: JINLONG
(3) Displacement: 110/125/150/250CC
(4) Cooling: Air cooled
(5) Max horsepower: 5.5kw/7000rpm
(6) Max torque: 10.5N·M/6000rpm
(7) Bore*stroke: 57.4mm×57.8mm
(8) Max speed: 55mile/h(70KM/H)
(9) Climbing ability: 35°
(10) Ignition: CDI
(11) Starting system: Electric/KICK
(12) Battery: 12V9Ah
(13) Carburetor brand: PZ30
(14) Engine oil: SAE-15w/40
(15) Clutch: fully auto
(16) Transmission: 3SPEED
(17) Driveline: Chain
(18) Driving wheel: 2
(19) Suspension,front/rear: double A-ARM
(20) Brakes,front/rear: Drum/disc
(21) Brake operation: Hand+foot
(22) Tires,front/rear: 21×7/20×10-10
(23) Fuel capacity/type 4.8L
(24) Weight,G.W./N.W.: 150KG
(25) Max load: 120KG
(26) Wheelbase: 1150MM
(27) OA L*W*H: 1679*998*1094MM
(28) Height to seat: 820mm
(29) Min ground clearance: 110mm
(30) Carton size: 64.9”X44”33.8”
(31) Shipping info: 42pcs/40HQ
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
